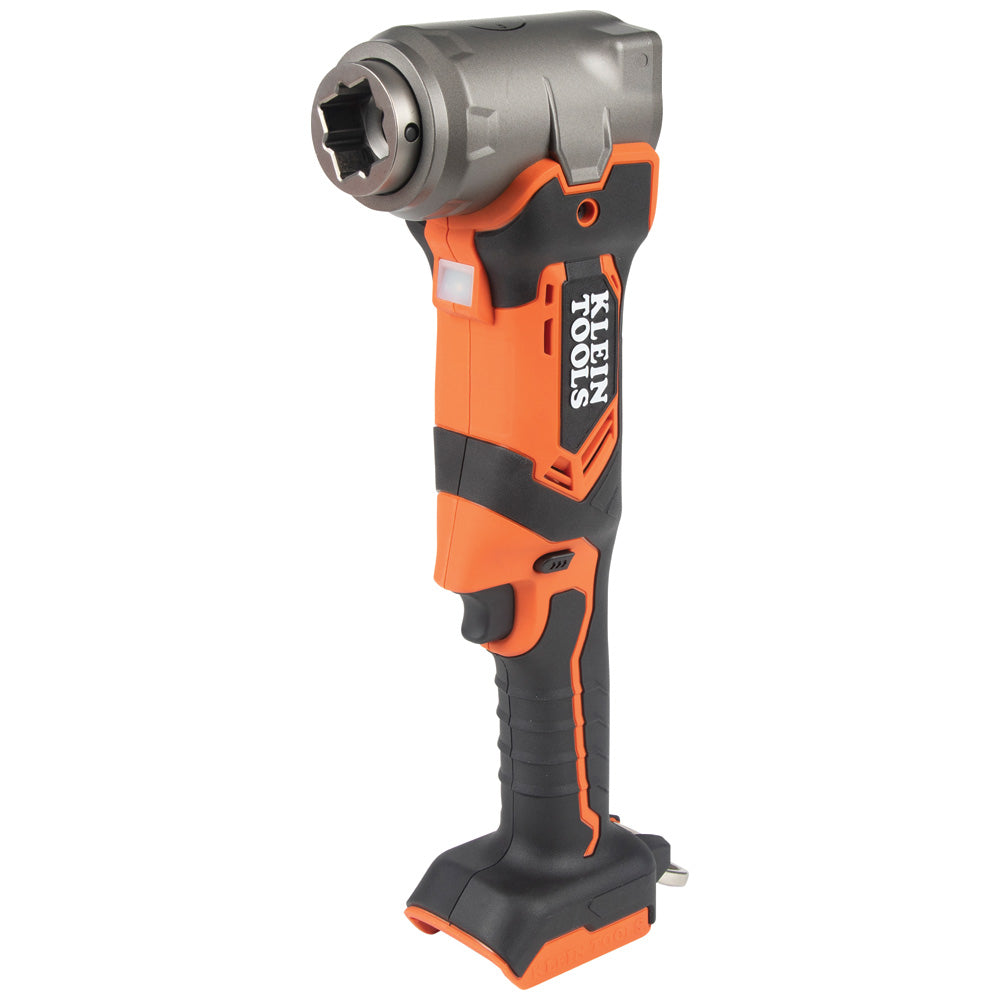

90-Degree Impact Wrench, Tool Only

Engineered and designed by Klein Tools in the USA, the patent pending design of the 90-Degree Impact Wrench provides a better, more ergonomic way to fasten in the field. The right angle on this tool allows the user to reach around a utility pole easier for better access with less fatigue. Up to 300 ft-lb of max torque for driving fasteners into wood, metal and concrete. It features a variable speed trigger and a variety of square drives (1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch).

• Right angle impact wrench provides versatility for better reach around a utility pole with less effort
• Patent pending through hole design for longer bolts
• Delivers 300 ft-lb of max torque for installing fasteners into wood, metal and concrete
• Featuring 1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch square drives
• 0 -1800 RPM variable speed trigger for better control
• Safety lockout switch
• Work light illuminates darker spaces
• Insertable socket designed for commonly used 3/4-Inch and 13/16-Inch bolt sizes (Cat. No. BAT20LWS)
• 7/16-Inch Quick Connect Adapter works with drill bits, sockets and other accessories for added versatility (Cat. No. BAT20LWA)
• Engineered and designed by Klein Tools in the USA

• Warning: Always use approved eye protection.
• Warning: Do not use to pry or chisel.
• Warning: Not insulated. Will not protect against electrical shock.
• Warning: Not insulated. Will not protect against electrical shock.
• Voltage: 20V
• Impacts per Minute: 0 - 1800
• Overall Length: 7.25" (18 cm)
• Type: Battery-Operated
• Application: Impact Fastening
• Included: Tool Only
• Maximum Speed: 1800 RPM
• Batteries: Lithium-Ion
• Material: ABS, PA6, GF, TPE
• Overall Width: 4.25" (11 cm)
• Torque Rating: 300 ft-lb
• Special Features: Powered by DeWALT 20V Lithium-ion Batteries
• Weight: 7.5 lb (3.4 kg)
• Overall Height: 18.4" (47 cm)
• Handle Type: In-Line
• Brushless Motor: Yes
• Drive Size: 1-1/8", 1", 13/16", 3/4" Square
• Style_Name: Tool Only
