48 Amp Level 2 Electric Vehicle Charging Station - EV Series

• Fast and secure charging of any SAE J1772™ compatible electric vehicle
• Optional access control: station comes with RFID disabled - simply tap RFID card to activate
• Cable design prevents cord from freezing and cracking in extreme weather
• For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
• Easy installation with pre-attached input cable and mounting hardware included
• Energy Star Certified Click here to learn more about our full line of Evr-Green Electric Vehicle Chargers. For a complete and trusted EV charging infrastructure, include power, protection, safety & energy management from the brand you trust

• Country of Origin: China
• RoHS Compliant: Yes

Electrical Specifications

• Amperage: 48 A
• Breaker: 60 A
• Charge Connector Cord: #7 AWG SAE J1772
• Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
• Operating Temperature: -30°C to 50°C
• Output Power: 11.6kW
• Short Circuit Current Rating: 20 mA CCID per UL 2231
• Voltage: 208/240 VAC

Environmental Specifications

• Altitude: Up to 6,500 ft. (2,000 m)
• Charging Cable Operating Temperature: -30°C to +50°C
• Cooling: Natural Cooling
• Operating Humidity: < 95% Relative Humidity, Non-Condensing

Material Specifications

• Enclosure Material: Plastic (PC+PBT)
• Enclosure Rating: NEMA Type 3R

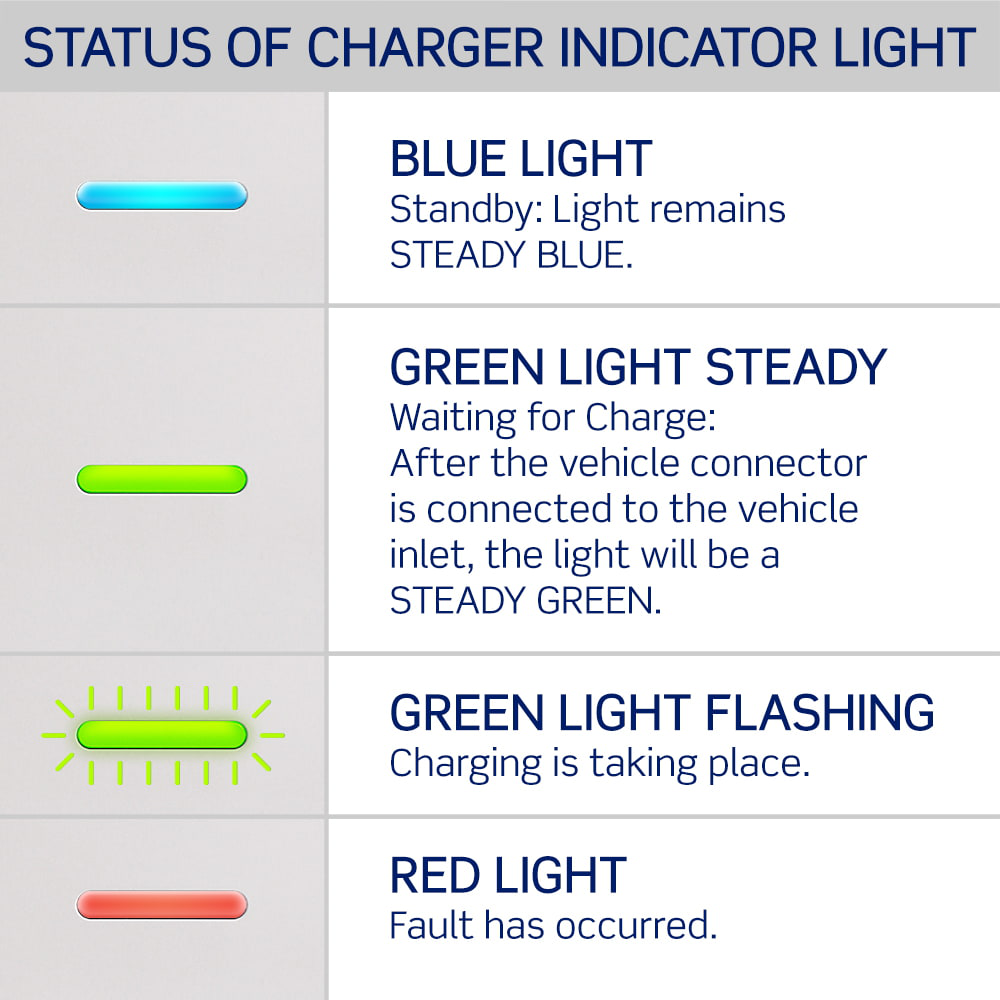

• Status Indicator: Power Present, Charging, Fault

Mechanical Specifications

• Cable Length: 18 ft. (5.5 m)

Product Features

• Application: Home|Commercial
• Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
• Device Type: Charger

Standards and Certifications

• Standards and Certifications: UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant

Warranty

• Warranty: 2-Year Limited
