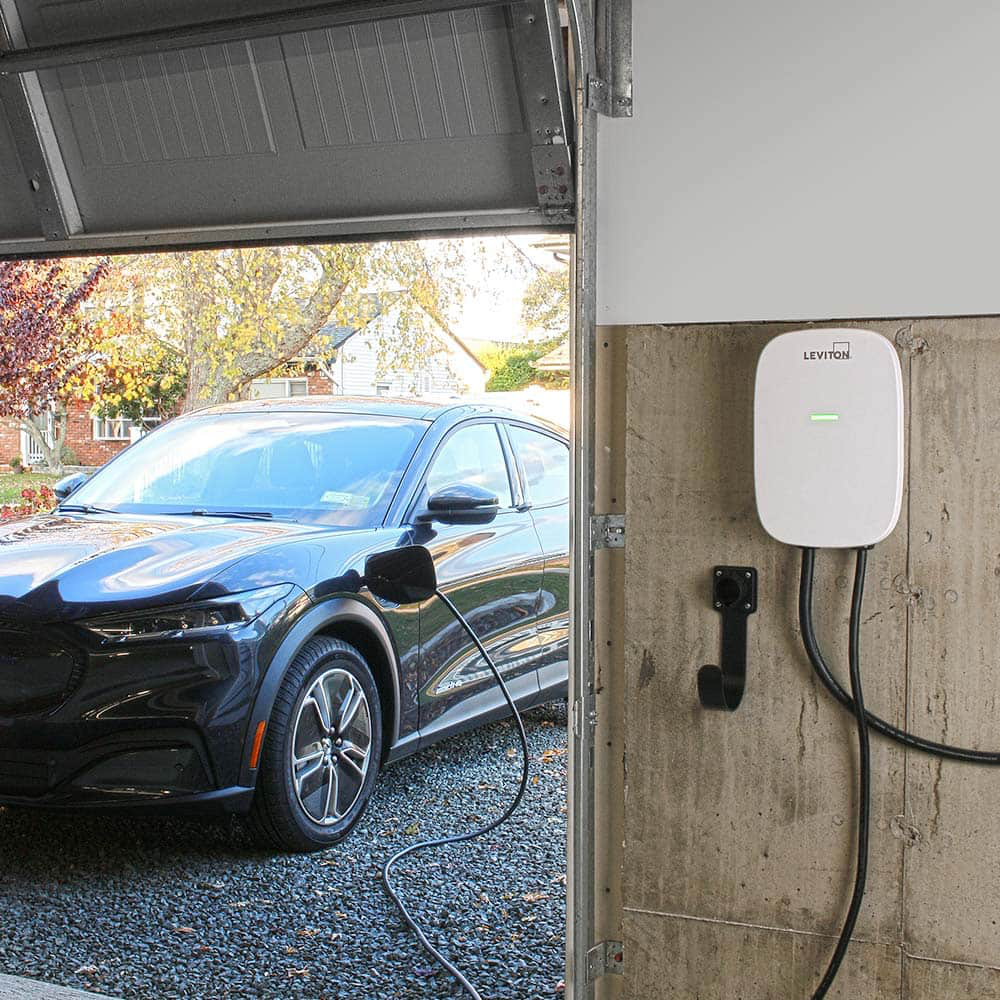

48 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi, Works with My Leviton App

• SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
• THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
• FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
• EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 60 Amp breaker
• CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter Learn more about the My Leviton app Have Questions? Search the knowledge base. Take advantage of government rebates and incentives. Click here to learn more about our full line of Evr-Green Electric Vehicle Chargers.

• Country of Origin: China

Electrical Specifications

• Amperage: 48 A
• Breaker: 60 A
• Charge Connector Cord: #7 AWG SAE J1772
• Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
• Operating Temperature: -30°C to 50°C
• Output Power: 11.6kW
• Short Circuit Current Rating: 20 mA CCID per UL 2231
• Voltage: 208/240 VAC

Environmental Specifications

• Altitude: Up to 6,500 ft. (2,000 m)
• Charging Cable Operating Temperature: -30°C to +50°C
• Cooling: Natural Cooling
• Operating Humidity: < 95% Relative Humidity, Non-Condensing

Material Specifications

• Enclosure Material: Plastic (PC+PBT)
• Enclosure Rating: NEMA Type 3R
• Status Indicator: Power Present, Charging, Fault

Mechanical Specifications

• Cable Length: 18 ft. (5.5 m)

Product Features

• Application: Home|Commercial
• Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
• Device Type: Charger
• Feature: My Leviton Enabled

Standards and Certifications

• Standards and Certifications: UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant

Warranty

• Warranty: 2-Year Limited
