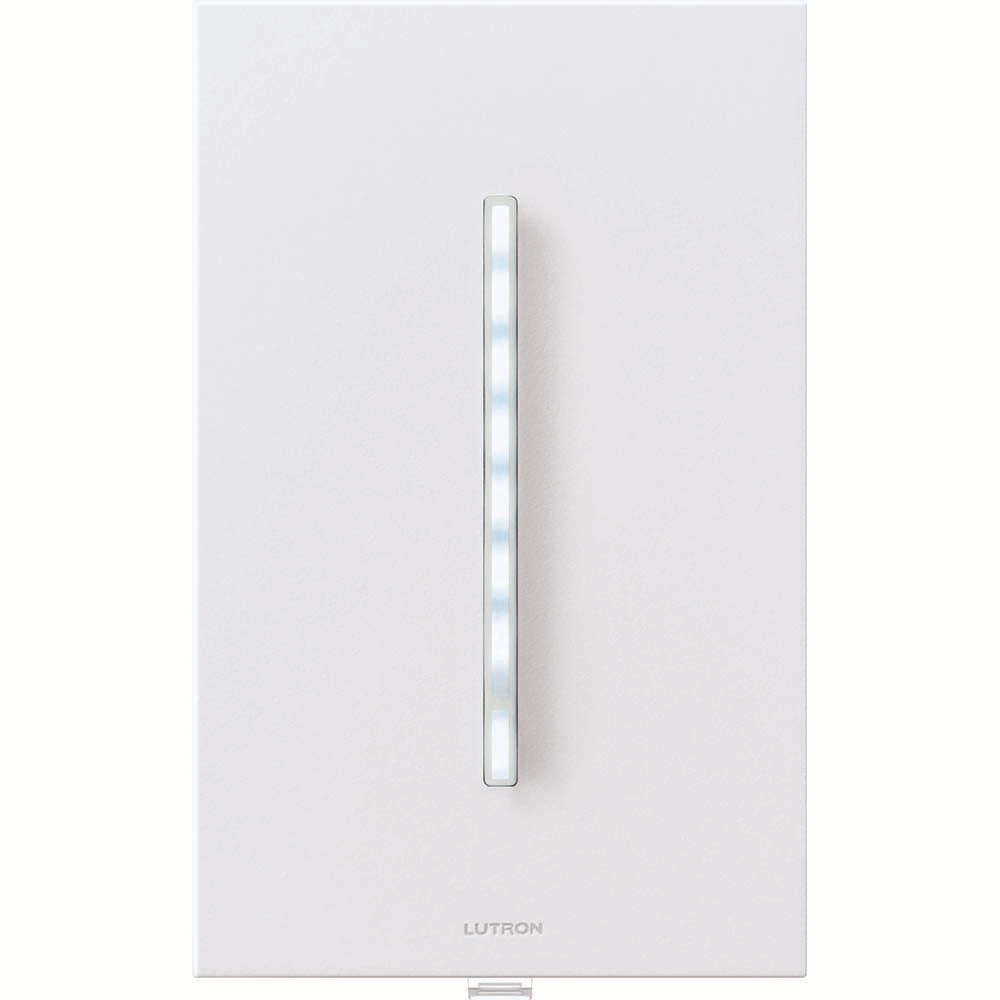

Product Description
- Family/Collection: GRAFIK T
- Controls 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED, fluorescent, or HID loads, or 3 A fans (1/10 HP). Neutral connection required. Touch LED light bar anywhere to toggle load on/off. Tap toggle button to turn lights off or turn on. Toggle button is white when on, orange when off.
- Simple touch control.
- Distinctive architectural aesthetic.
- Softly lit white LEDs indicate light level and coordinate with any decor.
- Advanced Microprocessor Dimming Technology For Control Of Dimmable Led Lamps.
- Low-end and high-end trim are available for improved LED dimming performance (dimmer only).
- Phase selectable technology allows forward or reverse phase dimming for compatibility with more load types.
- Installs in single-pole or multi-location applications. Companion devices are available for multi-location control with dimmers and switches (maximum 4 companion devices per dimmer or switch, 1 main control per circuit).
- Use Lutron GRAFIK T wallplates (sold separately).
- Actuator: Touch bar
- Amperage Rating: 5/3
- Application: Lighting Control
- Brand Name: Lutron
- Color: White
- Connection: Wire Leads
- Contact Configuration: N-O
- Contact Rating: 5/3
- Insulation: Plastic
- Material: Plastic/Metal
- Mounting: Wallbox
- Number Of Poles: 1
- Operating Temperature: 32 to 104
- Size: 4.69 x 2.94
- Special Features: Controls 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED, fluorescent, or HID loads, or 3 A fans (1/10 HP). Neutral connection required. Touch LED light bar anywhere to toggle load on/off. Tap toggle button to turn lights off or turn on. Toggle button is white when on, orange when off.
- Standard: UL, CUL, NOM, FCC, IC, IFTEL
- Sub Brand: GRAFIK T
- Type: Touch electronic switch, multi-location/single-pole
- Voltage Rating: 120
- Wattage: 600
