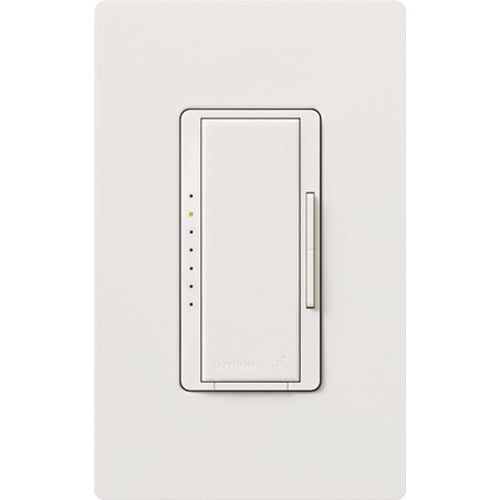

Maestro Wireless Dimmer, Incandescent/Halogen, Magnetic Low-Voltage, Specification grade, multi-location/single-pole, 120V/600W/VA Vive enabled

Maestro Wireless switches use Lutron patented Clear Connect RF Technology, which enables wireless communication with Radio Powr Savr sensors and Pico wireless controls for light control and general switched loads.

• Family/Collection: Vive Maestro Wireless
• Controls 600 W incandescent/halogen, 600 VA (450 W) magnetic low-voltage, 350 W Hi-lume 1 percent 2-wire LED driver (max 8), or 5 A Tu-wire fluorescent ballast loads. Tap on to preset level; tap off. Tap twice for full on. Press, hold, and release for delayed fade-to-off. Touch rocker to adjust light level. Provides true dimming from each location with companion dimmers or Pico remotes.
• The Maestro Wireless solution provides dimming/switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim
• Lutron patented Clear Connect RF Technology works through walls and floors.
• Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON
• Controls Include Front Accessible Service Switch (Fass) For Safe Lamp Replacement.
• Two-wire dimmers and switches available for retrofit applications
• Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption

• Actuator: Tapswitch
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Screw terminal
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Controls 600 W incandescent/halogen, 600 VA (450 W) magnetic low-voltage, 350 W Hi-lume 1 percent 2-wire LED driver (max 8), or 5 A Tu-wire fluorescent ballast loads. Tap on to preset level; tap off. Tap twice for full on. Press, hold, and release for delayed fade-to-off. Touch rocker to adjust light level. Provides true dimming from each location with companion dimmers or Pico remotes.
• Standard: UL, cUL, CSA, FCC, ICC
• Sub Brand: Vive Maestro Wireless
• Type: Digital fade wireless dimmer, multi-location/single-pole, spec grade, Vive enabled
• Voltage Rating: 120
• Wattage: 600
