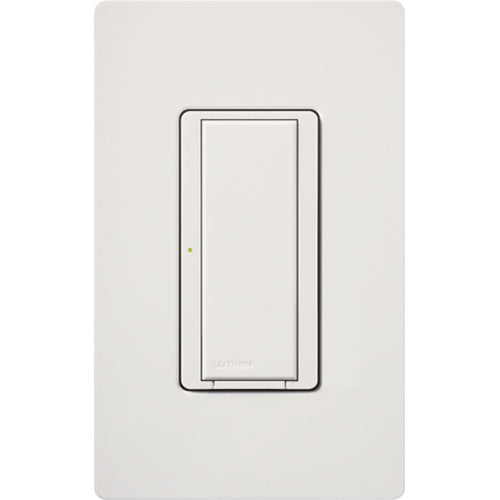

Maestro Wireless Switch, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Non-Dim Fluorescent, Specification grade, multi-location/single-pole, 120V/8A light or 5.8 A fan Vive enabled

Maestro Wireless switches use Lutron patented Clear Connect RF Technology, which enables wireless communication with Radio Powr Savr sensors and Pico wireless controls for light control and general switched loads.

• Family/Collection: Vive Maestro Wireless
• Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general-purpose fans and motor loads. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
• The Maestro Wireless solution provides dimming/switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim
• Lutron patented Clear Connect RF Technology works through walls and floors.
• Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON
• Controls Include Front Accessible Service Switch (Fass) For Safe Lamp Replacement.
• Two-wire dimmers and switches available for retrofit applications
• Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption

• Actuator: Tapswitch
• Amperage Rating: 8/5.8
• Application: Lighting Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Screw terminal
• Contact Configuration: N-O
• Contact Rating: 8/5.8
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.69 x 2.94
• Special Features: Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
• Standard: UL, cUL, NOM
• Sub Brand: Vive Maestro Wireless
• Type: Wireless electronic switch, multi-location/single-pole, spec grade
• Voltage Rating: 120
• Wattage: 960/46.4
