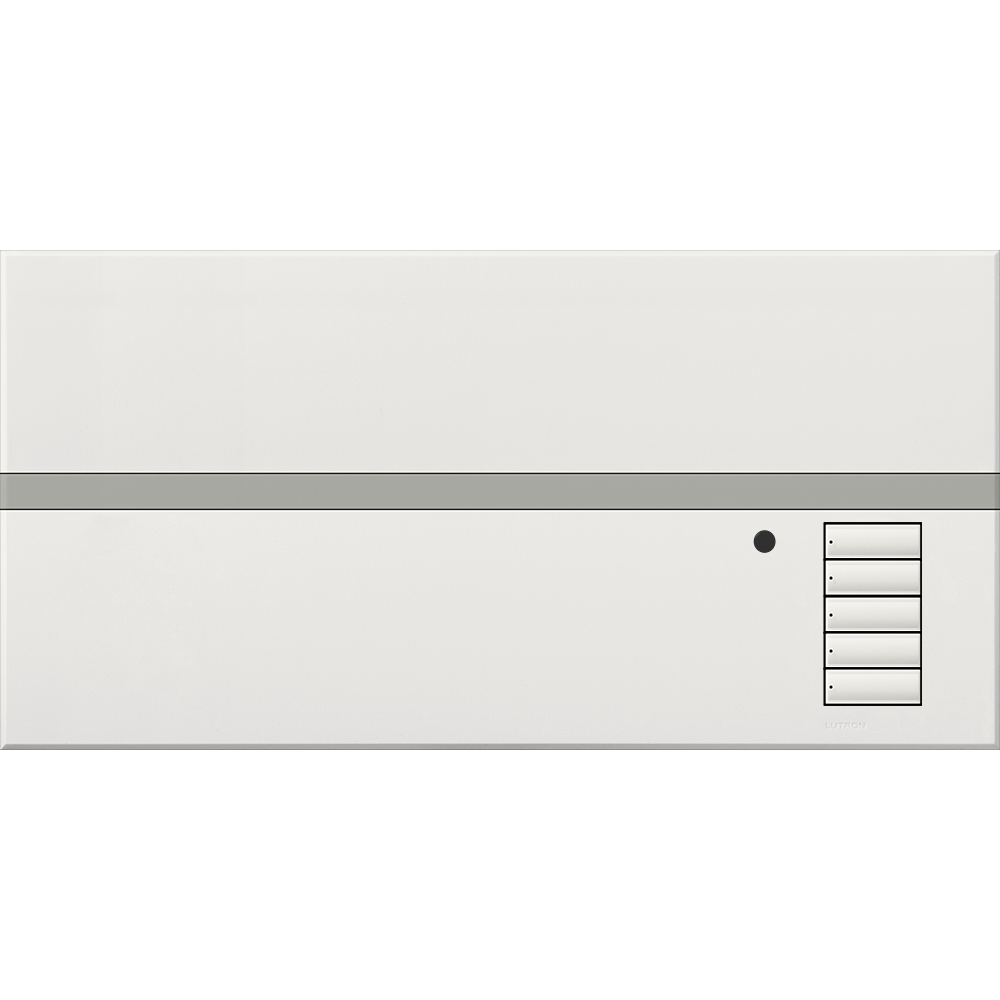

GRAFIK Eye QS Wireless Main Unit, 6-zone, 120-127V or 200-240V

• Family/Collection: GRAFIK Eye QS
• 6 zone base unit for GRAFIK Eye QS, with 1 shade column and translucent cover. Controls up to six zones of light and will operate incandescent, LED/CFL, Tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/high pressure sodium switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads with a continuous Square Law dimming curve or on a full conduction non-dim basis.

• Actuator: Push-button
• Application: Lighting Control
• Brand Name: Lutron
• Contact Configuration: N-O
• Contact Rating: 120, 220 to 240 VAC
• Mounting: Surface
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 9.38
• Special Features: 6 zone base unit for Grafik Eye QS, with 1 shade column and translucent cover. Controls up to six zones of light and will operate incandescent, LED/CFL, Tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/high pressure sodium switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads with a continuous Square Law dimming curve or on a full conduction non-dim basis.
• Standard: UL, CSA, FCC, IC, SCT, NOM, CEC (title24)
• Sub Brand: GRAFIK Eye QS
• Type: Light/shade control unit, 6 zones, opaque cover, 1 extra button column, wireless capability
• Voltage Rating: 120, 220 to 240
