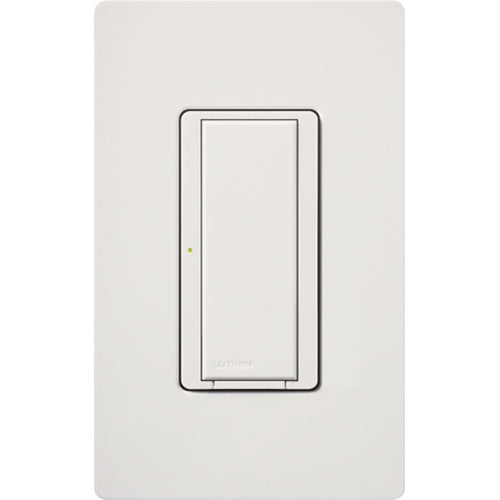

Maestro Wireless Switch, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Non-Dim Fluorescent, Specification grade, multi-location/single-pole, 120V/8A light or 5.8 A fan Vive enabled, BAA compliant

Maestro Wireless Switch, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Non-Dim Fluorescent, Specification grade, multi-location/single-pole, 120V/8A light or 5.8 A fan Vive enabled, BAA compliant

Part Number: UMRF2S-8ANS120AL

UPC:

Your Price:
$128.80 ea
$128.80 ea
Sold out

Available to Order

Color
View full details

Product Description

  • Family/Collection: Vive Maestro Wireless
  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general-purpose fans and motor loads. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
  • The Maestro Wireless solution provides dimming / switching of multiple load types, occupancy/vacancy sensing, and daylight harvesting.
  • Lutron patented Clear Connect RF Technology works through walls and floors.
  • Incorporates advanced features such as fade ON / fade OFF, high-end trim, and rapid full-ON (a Vive hub is required to set high-end trim).
  • Controls Include Front Accessible Service Switch (Fass) For Safe Lamp Replacement.
  • Two-wire dimmers and switches available for retrofit applications.
  • Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption
  • Actuator: Tapswitch
  • Amperage Rating: 8/5.8
  • Application: Lighting Control
  • Brand Name: Lutron
  • Color: Almond
  • Connection: Screw terminal
  • Contact Configuration: N-O
  • Contact Rating: 8/5.8
  • Insulation: Plastic
  • Material: Plastic/Metal
  • Mounting: Wallbox
  • Number Of Poles: 1
  • Size: 4.69 x 2.94
  • Special Features: Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
  • Standard: UL, cUL, NOM
  • Sub Brand: Vive Maestro Wireless
  • Type: Wireless electronic switch, multi-location/single-pole, spec grade
  • Voltage Rating: 120
  • Wattage: 960/46.4
