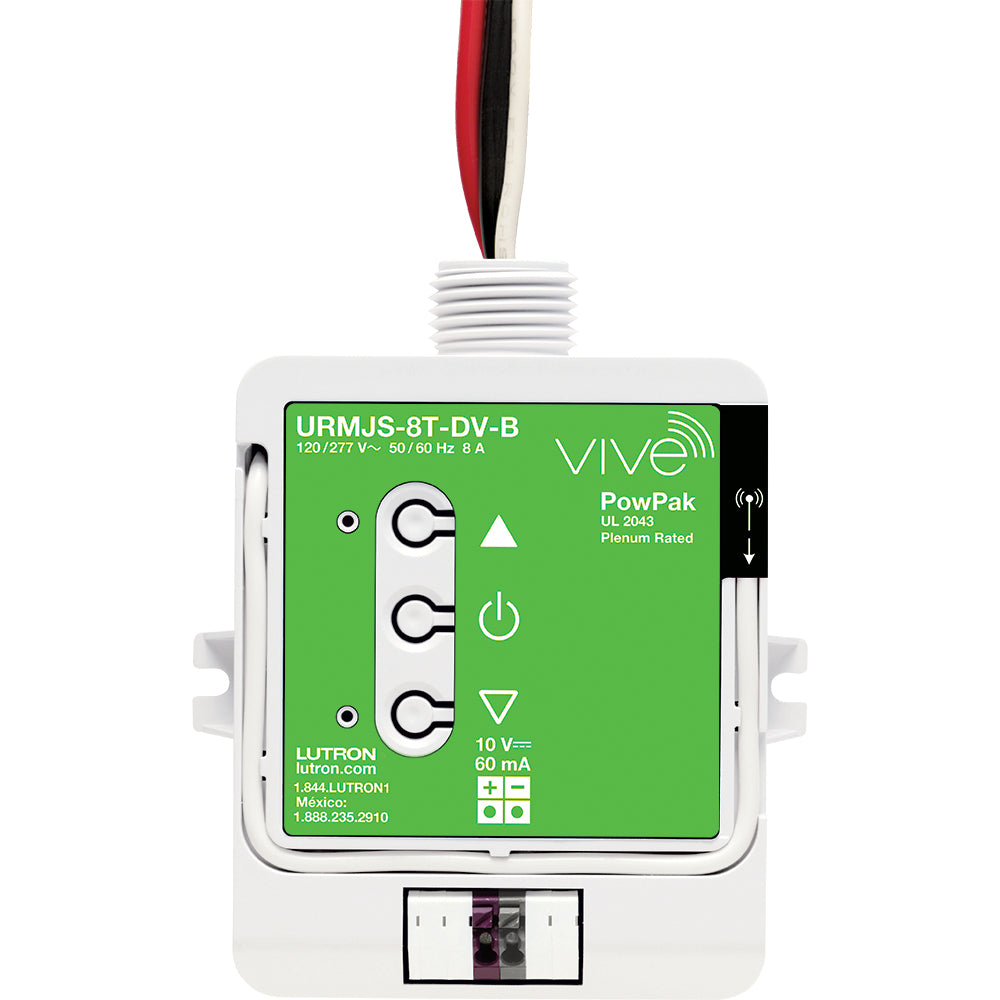

PowPak dimming module, controls up to 60 mA of 0-10V controlled fixtures together, switches up to 8 A, 120/277 VAC, 434 MHz, Vive compatible, BAA compliant

• Family/Collection: Vive PowPak
• Controls LED/fluorescent fixture loads. 0-10V analog control is widely used in the fixture industry. Automatically adjusts to both sink and source LED and fluorescent fixtures.
• Controls up to 60 mA of 0-10 V- controlled fixtures together
• Mounts to the exterior of a US-style junction box through a standard-size knockout
• Switches up to 8 A total
• 0 -10 V- Control Link Automatically Sources Or Sinks To The Third Party Fixtures
• Configurable high- and low-end trim
• Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy / vacancy sensors, and 1 Radio Powr Savr daylight sensor
• Utilizes Lutron Clear Connect RF Technology; refer to model number chart for frequency band data

• Application: Lighting Control
• Brand Name: Lutron
• Color: Green/White
• Frequency Rating: 431 to 437
• Load: 0 to 10
• Material: Plastic
• Mounting: Junction box
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 3.94 x 2.82
• Special Features: Controls LED/fluorescent fixture loads. 0-10V analog control is widely used in the fixture industry. Automatically adjusts to both sink and source LED and fluorescent fixtures.
• Standard: UL, cUL, FCC, ICC, COFETEL, NOM
• Sub Brand: Vive PowPak
• Type: Dimming module for 0-10V control
• Voltage Rating: 120 to 277
