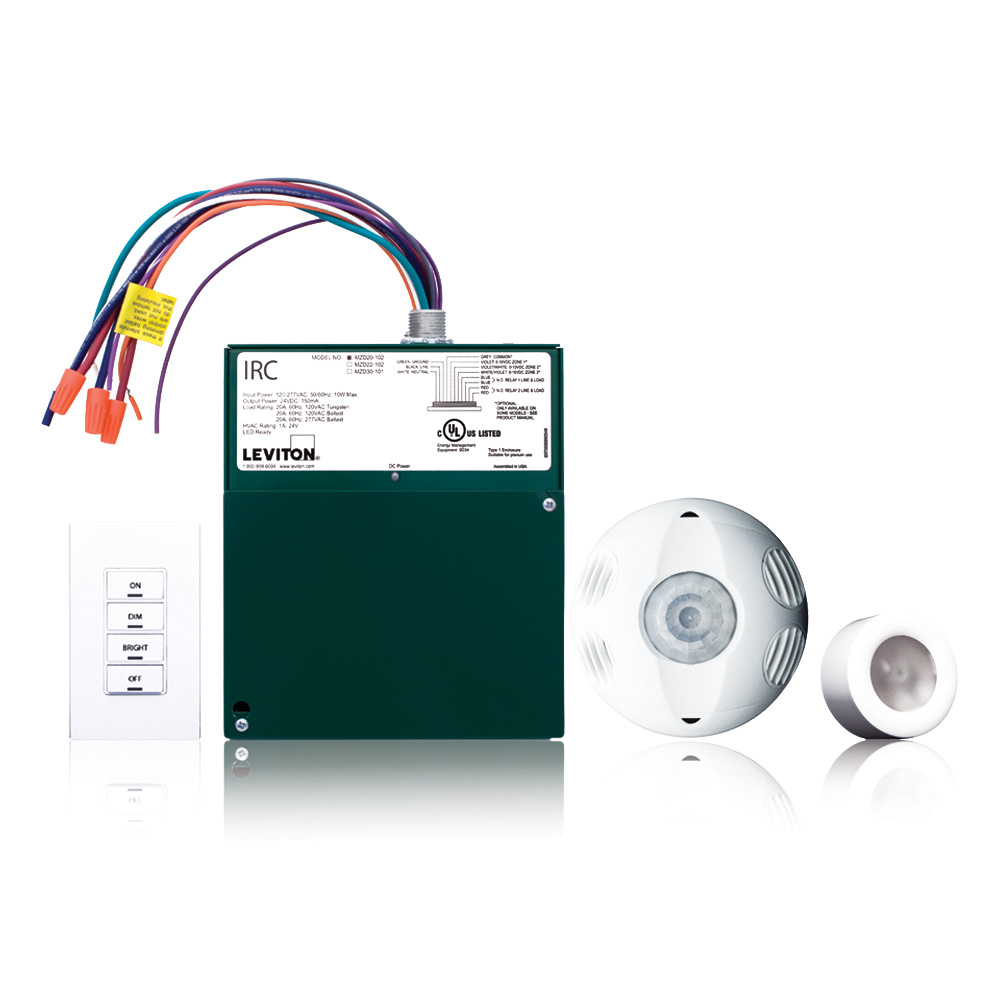

IRC Dimming Kit, 2-Zone Room Control 347V

• The Leviton Integrated Room Control (IRC) combines single room occupancy sensing, daylight harvesting, 0-10V dimming, Partial ON, Partial OFF and demand response capabilities into a single, easily installed package. IRC features several methods of Ladderless Commissioning™ for install-and-forget convenience, including the AutoCal™ feature which automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance. The IRC ships as either custom kits or a complete kit with a factory configured occupancy sensor, photocell, and 4-button switch. The 4-button switch provides ON, raise, lower, and OFF functionality. The performance, features, and capabilities of the IRC product provide a simple and cost-effective stand-alone energy management solution to maximize energy efficiency and meet energy code mandates for virtually any commercial room control application.
• The IRC offers the following code compliant high-performance features:
• Engineered to deliver a simple and cost-effective energy code compliant Solution for California Title 24 2013 and ASHRAE 90.1
• CA Title 24 2013 Stairwell Application Control – For time of day maximum and minimum lighting control
• Automatic Closed Loop or Open Loop daylight harvesting – 2 zones
• Simplified daylight harvesting – Full range dimming in one stand-alone device
• Partial ON Control – Adjustable initial light level in either manual switch or occupancy sensor auto modes
• Partial OFF Control – Adjustable light level control for minimum continuous light level
• Dimming – Delivers multiple light levels
• Up to 3 Zones Controlled with One Entry Station - Primary and Secondary zones
• Automated 100 Hour Burn In Feature - For smooth dimming control
• Autocal™ automatic photocell calibration – automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance
• Ladderless Commissioning™ – IRC provides install-and forget convenience
• Automated 100 hour burn-in function
• IRC is available as a kit with factory pre-configured sensor, photocell, and 4-button switch
• Optional custom engraving on button switches and wallplates
• Input for emergency override mode
• Simplified integration with emergency systems
• 0-10V sinking for LED or fluorescent dimming control, 2 zones
• 347V input; 10W Max, 50/60Hz

Product Features

• Product Line: IRC
• Product Type: Room Controller
