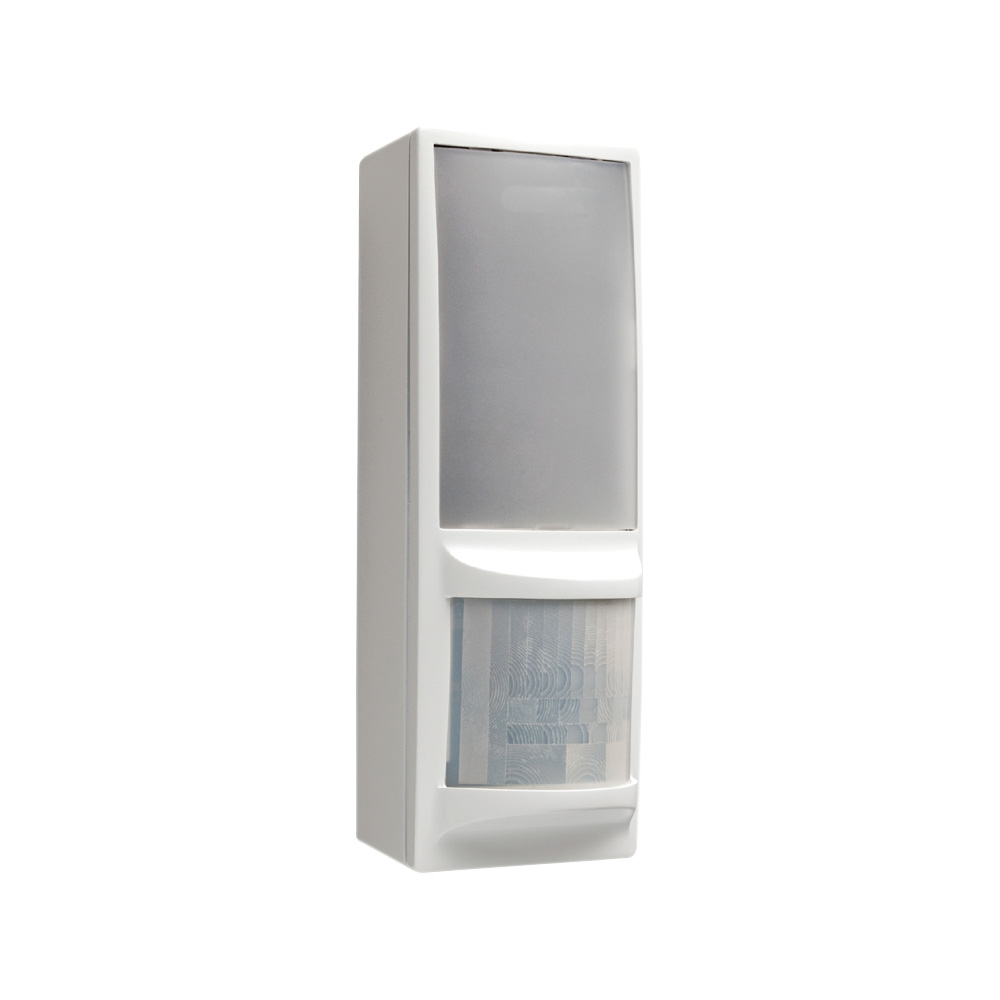

LevNet RF 902 MHz PIR Wall Mount Occupancy Sensor

• The LevNet RF™ 902MHz Passive Infrared (PIR) Wall Mount Occupancy Sensor has built-in solar cells that draw on available ambient light to power themselves and can operate for up to 72 hours in total darkness. Batteries are not required. The self-powered wireless sensor design also overcomes the placement and coverage challenges of traditional sensors. Self-powered wireless sensors enable flexible placement, allowing sensors to be mounted where needed without the complexity of moving or installing new wiring.
• Zero Power Consumption — solar cells provide the energy to keep the device on and sensor technology turns the lights off, eliminating additional expenses to the end user’s energy bill
• Zero Wiring Required — no wire limitations enable the installer to place the sensor in the optimal location of any application to capture minor motion and enhance performance
• Self-Powered, Self-Charging — energy harvesting solar cells are optimal for light collection
• Rapid Charge Time to Operation — self-powered technology enables the sensor to be operational after a minimum charge time of 2 minute
• True Wireless — sensors are self-powered and communicate with all LevNet RF and EnOcean® Receivers via a 902 MHz radio frequency
• No Additional Wiring — self-powered wireless technology eliminates the need to pull additional wire, making installation quick and easy and increasing labor savings with little to no impact to business during conversion
• Up to 72 Hours of Stored Power — solar cells provide power to the sensor when no ambient light is available (for extended “OFF” time, an optional battery can be inserted)
• Advanced Field-of-View — both wide angle and long-range lens options are included for maximum flexibility and efficiency in a variety of settings
• Improved Aesthetics— blends seamlessly with ceiling décor and architecture
• Additional Energy Savings — wireless technology supports manual override options with no additional wiring

Color Variations

• White

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Battery: Yes
• Color: White
• Feature: Wireless
• Grade: Commercial
• Mounting: Wall Mount
• Mounting Height (Ft.): 6-8 FT
• Product Line: LevNet RF
• Protocol: 902 MHz EnOcean
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Occupancy

Standards and Certifications

• Listings: Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy sensing requirements
• Title 24 Compliant: Yes

Electrical Specifications

• Frequency: 902 MHz
• Frequency (Hertz): 902 MHz
• Voltage: 24 VDC

Performance Specifications

• Coverage (Sq.Ft.): 1600-3960
• Frequency Range: 50-150 FT

Mechanical Specifications

• Mounting Type: Wall Mount
• Size: Height 5.83" (148mm), Width 2.52" (64mm), 1.8" Depth (45.7mm)

Type

• Product Type: Wireless Occupancy Sensor

Warranty

• Warranty: 5-Year Limited
