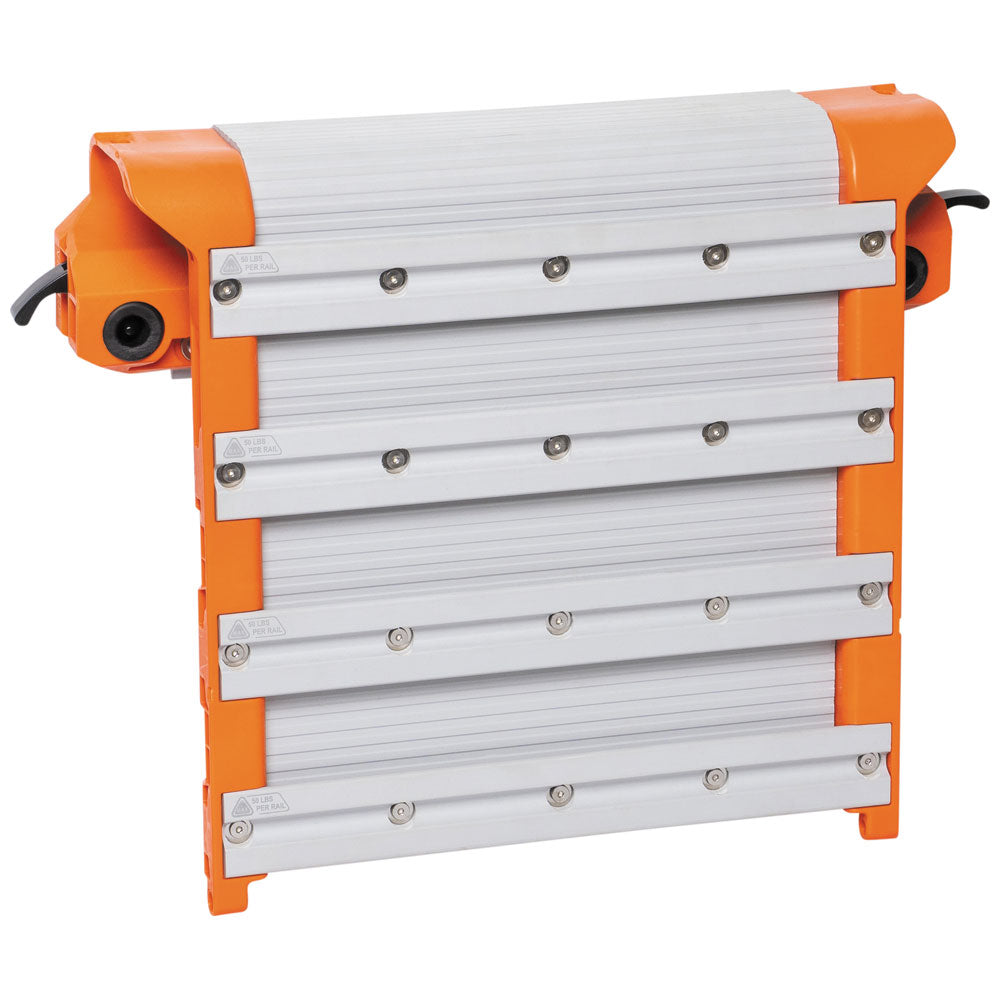

1 Man Wall Assembly, Rail System

The Bucket Work Center is an ecosystem that will revamp the way a Lineman works. It allows Lineman to customize their workspace, just like other professionals customize their office space. The 1 Man Wall Assembly Rail System was designed for the standard 1 man aerial bucket. This will be the Lineman's office. The Bucket Work Center easily connects to aerial buckets with a standard 2-Inch or 3-Inch (5.1 or 7.6 cm) bucket lip. Is made of impact resistant materials with dielectric properties to withstand all work conditions from -25 to +125 degrees F, 1000V to 35kV. An assortment of modules are available to customize each workstation to fit the tools needed for the job.

• 1 Man Wall Assembly easily attaches to utility buckets with quick release and adjustable clamps
• Made with UV resistant, dielectric plastic to withstand all work conditions from -25 to +125-Degree Fahrenheit, 1000V to 35kV
• Multiple rails on the Bucket Work Center Wall Assembly allow horizontal and vertical customization of module positioning
• 50-Pound load rating for each rail on the wall assembly
• Special design bumpers allow Rail System to stay in place during transit and articulation of aerial buckets
• The Wall Assembly Rail System is available in 3 sizes to accommodate the standard 1-man, 1.5 man, or 2 man buckets (Cat. Nos. BC150WA, BC200WA sold separately)
• The Bucket Work Center is an ecosystem that will revamp the way a Lineman works
• Lineman can transform their workspace with the Bucket Work Center modules to become the Lineman's office, similar to how other professionals customize their office space
• Bucket Work Center Modules (sold separately) connect to the inside or outside of the Wall Assembly Rail System to maximize space
• Features (4) inside and (1) outside rail for customization

• Warning: No Tether Point
• Warning: Not For Human Support
• Warning: Max Load 50 lbs (22.7kg) Per Rail
• Warning: Max Load 50 lbs (22.7kg) Per Rail
• Application: Utility
• Type: Ecosystem for Lineman Utility Buckets
• Overall Height: 15.94" (40.5 cm)
• For Use With: Bucket Work Center Rail System Modules
• Overall Length: 19.27" (48.9 cm)
• Special Features: Easily Attaches to Utility Buckets with Quick Release and Adjustable Clamps
• Overall Width: 4.4" (11.2 cm)
• Material: UV Resistant PVC
• Sub Brand: Bucket Work Center
• Weight: 150.1 oz (4252 g)
