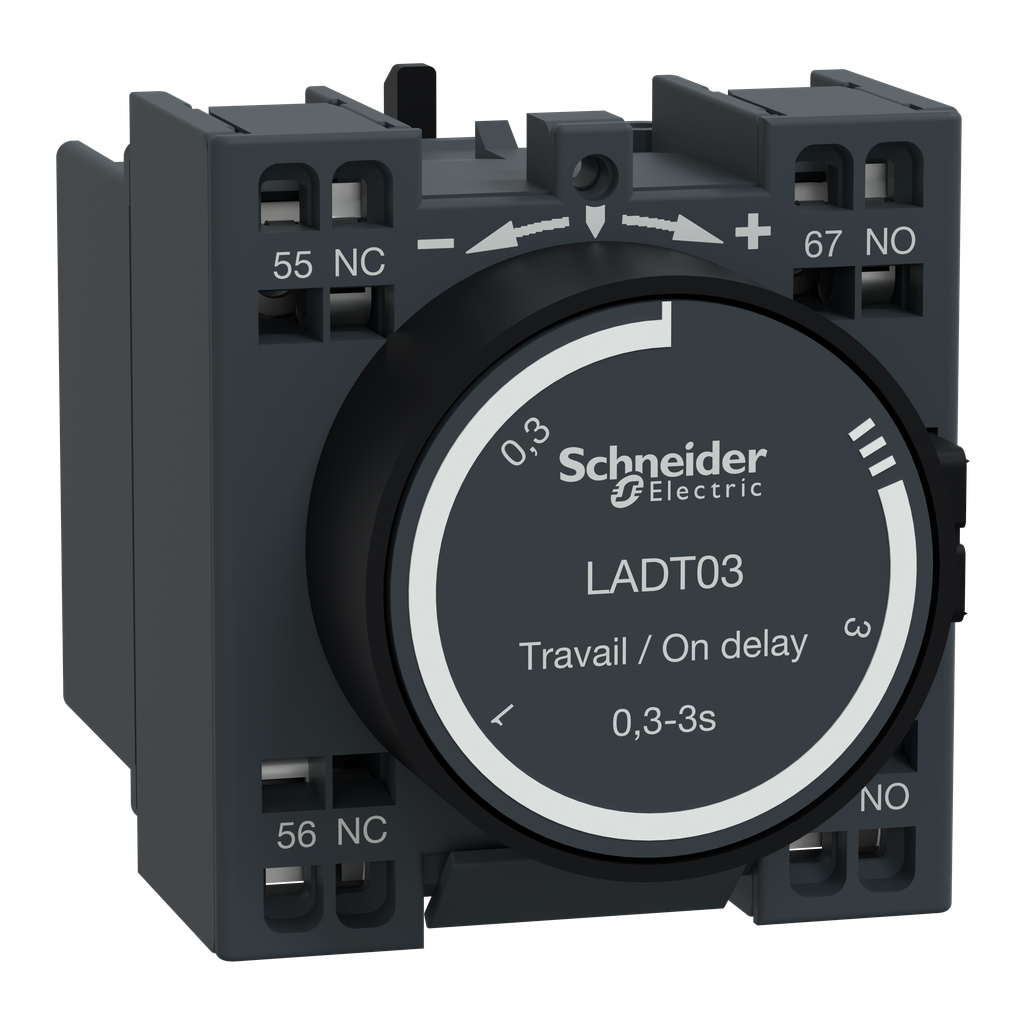

Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 0.3-3s, front, spring terminals

• Product Certifications: CB || UL || CSA || CCC || EAC || UKCA
• [Ith] Conventional Free Air Thermal Current: 10 A 60 °C
• Standards: EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
• Timer Type: on delay
• [Ue] Rated Operational Voltage: 690 V AC 25...400 Hz
• Range Compatibility: TeSys D CAD || TeSys D LC1D || TeSys Deca CAD || TeSys Deca LC1D
• Product Or Component Type: time delay auxiliary contact block
• Product Name: TeSys Deca
• Range: TeSys || TeSys Deca
• Mounting Location: front
• Pole Contact Composition: 1 NO + 1 NC
• [Ui] Rated Insulation Voltage: 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
• [Ie] Rated Operational Current: 6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13
• Time Delay Range: 0.3...3 s
• Auxiliary Contacts Operation: time delay

Contractual warranty

• Warranty: 18 months

Complementary

• Non-Overlap Time: 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
• Permissible Short-Time Rating: 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
• Minimum Switching Current: 5 mA
• Height: 48 mm
• Protection Type: gG fuse 10 A
• Insulation Resistance: > 10 MOhm
• Irms Rated Making Capacity: 140 A AC || 250 A DC
• Connections - Terminals: spring terminals 2 2.5-2.5 mm²flexible without cable end || spring terminals 2 2.5-2.5 mm²rigid
• Minimum Switching Voltage: 17 V
• Mechanical Durability: 5 Mcycles
• Color: dark grey
• Width: 44 mm
• Depth: 61 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110702
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -40-70 °C
• Ip Degree Of Protection: IP2X conforming to IEC 60529
• Ambient Air Temperature For Storage: -60-80 °C
• Environmental Characteristic: normal environment
• Protective Treatment: TH IEC 60068
• Operating Altitude: 9842.52 ft (3000 m)
