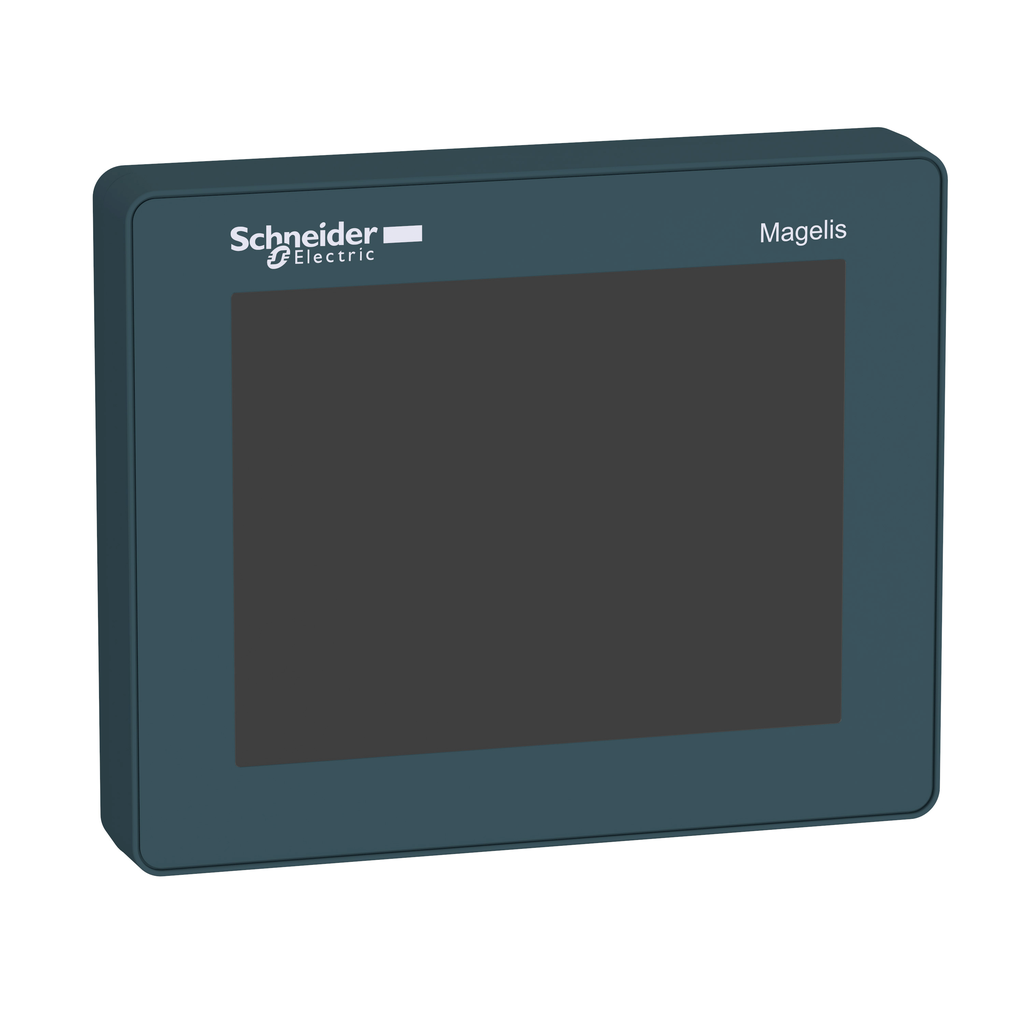

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD

• Pixel Resolution: 320 x 240 pixels QVGA
• Range Of Product: Harmony SCU
• Product Or Component Type: small touchscreen display HMI
• Display Size: 3.5 inch

Contractual warranty

• Warranty: 18 months

Complementary

• Brightness: 16 levels via touch panel
• View Angle Horiz X Vert: 60° left || 60° right || 40° top || 60° bottom
• Net Weight: 0.53 kg
• Backlight Lifespan: 50000 hours 65536 colours
• Touch Panel: analogue
• Display Type: backlit LED colour TFT LCD
• Width: 97.6 mm
• Depth: 80 mm
• Character Font: Korean || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Taiwanese (traditional Chinese)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2101003EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2101003EN
• Upgradeability: Upgradeable through digital modules and upgraded components
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UKCA || UKEX
