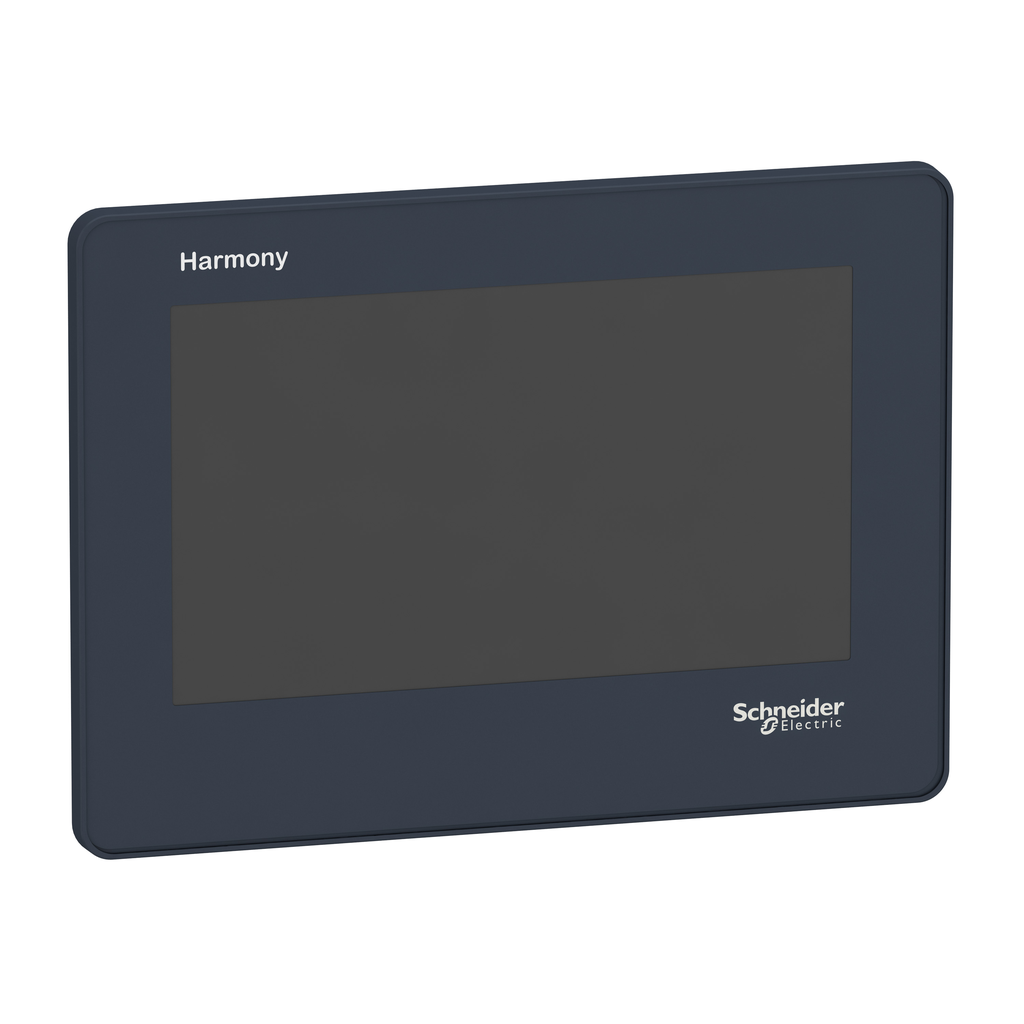

Touch panel screen, Harmony STO & STU, 4.3" wide Ethernet

• Range Of Product: Harmony STO & STU
• Product Or Component Type: touch panel screen
• Operating System: Harmony
• Software Designation: EcoStruxure Operator Terminal Expert

Complementary

• [Us] Rated Supply Voltage: 12...24 V DC - 10...20 %
• Number Of Pages: 8999
• Brightness: 16 levels via touch panel
• Power Consumption In W: 8.1 W
• Cut-Out Dimensions: 77.5 x 112.5 mm || 66 x 105 mm with mounting adaptor
• Supply: external source
• Display Resolution: 480 x 272 pixels
• Net Weight: 0.22 kg
• Fixing Mode: by 2 installation fasteners 1.5 to 6 mm thick panel
• Backlight Lifespan: 50000 hours white
• Touch Panel: analogue
• Integrated Connection Type: 1 USB 2.0 type mini B || 1 USB 2.0 type A || 1 Ethernet TCP/IP - RJ45
• Display Size: 4.3 inch
• Downloadable Protocols: Modbus TCP || Modbus || third party protocols
• Enclosure Material: PPT
• Display Colour: 65536 colours
• Range Compatibility: Omron || MitsubishI || Siemens || Allen-Bradley
• Port Ethernet: 10BASE-T/100BASE-TX
• Display Type: colour TFT LCD
• Front Material: plastic
• Realtime Clock: with RTC-battery set optional
• Character Font: ASCII (European characters) || Cyrillic || Taiwanese (traditional Chinese) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean
• Memory Description: back up of data 512 kB || application memory 26 MB

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511015EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1511015EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CE || C-tick || ATEX zone 2/22 || KCC || UL || cUL || UKCA
• Ambient Air Temperature For Operation: 0-50 °C
• Standards: UL 61010-2-201 || EN 61131-2 || EN 61000-6-2 || EN 61000-6-4 || CSA C22.2 No 213 || CSA C22.2 No 142 || UL 61010-1 || ANSI/ISA 12.12.01
• Electromagnetic Compatibility: resistance to radiated electromagnetic fields 10 V/m 80 MHz...2.7 GHz) || resistance to electrostatic discharge 8 kV air discharge)level 3 EN 61000-4-2 || resistance to electrostatic discharge 6 kV direct contact)level 3 EN 61000-4-2
• Vibration Resistance: 1 gn 5-150 Hz) IEC 61131-2 || 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
• Shock Resistance: 15 gn 11 msIEC 61131-2
• Ip Degree Of Protection: IP65f front panel) || IP20 rear panel)
• Ambient Air Temperature For Storage: -20-60 °C
• Nema Degree Of Protection: NEMA 4X/13 front panel indoor use)
• Relative Humidity: 10-90 % without condensation
• Operating Altitude: 6561.68 ft (2000 m)
