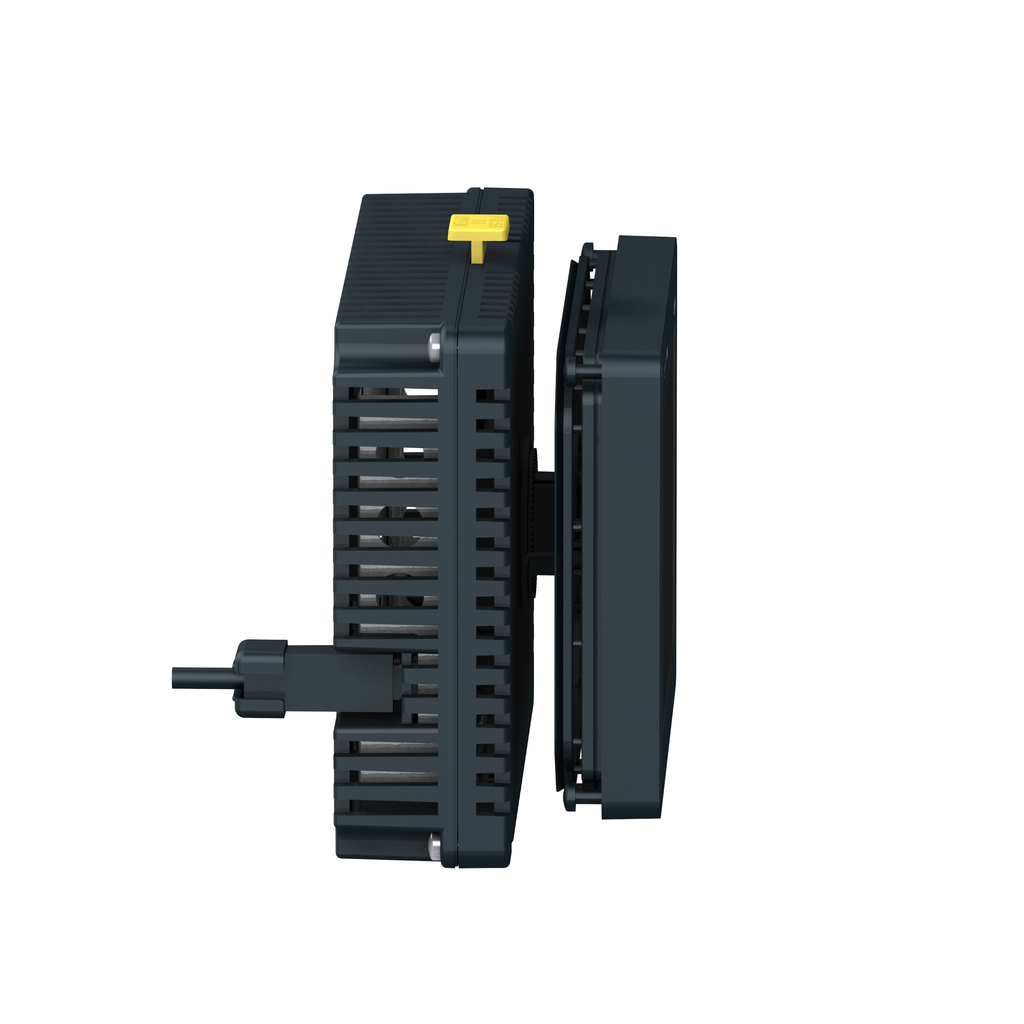

Touch panel screen, Harmony STO & STU, 3''5 Color

• Range Of Product: Harmony STO & STU
• Product Or Component Type: touch panel screen
• Operating System: Harmony
• Processor Name: CPU ARM9
• Software Designation: Vijeo Designer

Contractual warranty

• Warranty: 18 months

Complementary

• Number Of Pages: limited by internal memory capacity
• Brightness: 16 levels
• Height: 98.15 mm
• Inrush Current: 30 A
• Power Consumption In W: 6.5 W
• Supply: external source
• Display Resolution: 320 x 240 pixels QVGA
• Marking: with Schneider logo || CE
• Processor Frequency: 333 MHz
• Fixing Mode: Ø 22 mm hole
• Backlight Lifespan: 50000 hours
• Touch Panel: analogue
• Supply Voltage Limits: 20.4-28.8 V
• Integrated Connection Type: 1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45
• Display Size: 3.5 inch
• Downloadable Protocols: Modbus TCP/IP || Modbus || Uni-TE || third party protocols
• Realtime Clock: access to the PLC real-time clock
• Enclosure Material: PC/PBT
• Display Colour: 65536 colours
• Width: 118 mm
• Display Type: QVGA TFT colour touchscreen
• Depth: 55.3 mm
• Character Font: Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Korean || Taiwanese (traditional Chinese)
• Memory Description: application memory 16 MB || back up of data 64 kB
• [Us] Rated Supply Voltage: 24 V DC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2101003EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2101003EN
• Upgradeability: Upgradeable through digital modules and upgraded components
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: cULus || C-tick || Marine || UL class 1 Div2 T4A ou T5 || UKCA
• Ambient Air Temperature For Operation: 0-50 °C
• Resistance To Electromagnetic Fields: 10 V/m IEC 61000-4-3
• Standards: IEC 61000-6-2 || EN 61131-2 || UL 1604 || UL 508 || FCC Class A
• Immunity To Microbreaks: 10 ms
• Vibration Resistance: +/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
• Shock Resistance: 15 gn 11 msIEC 60068-2-27
• Ip Degree Of Protection: IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
• Ambient Air Temperature For Storage: -20-60 °C
• Nema Degree Of Protection: NEMA 4X front panel indoor use)
• Relative Humidity: 0-85 % without condensation
• Operating Altitude: <= 6561.68 ft (2000 m)
