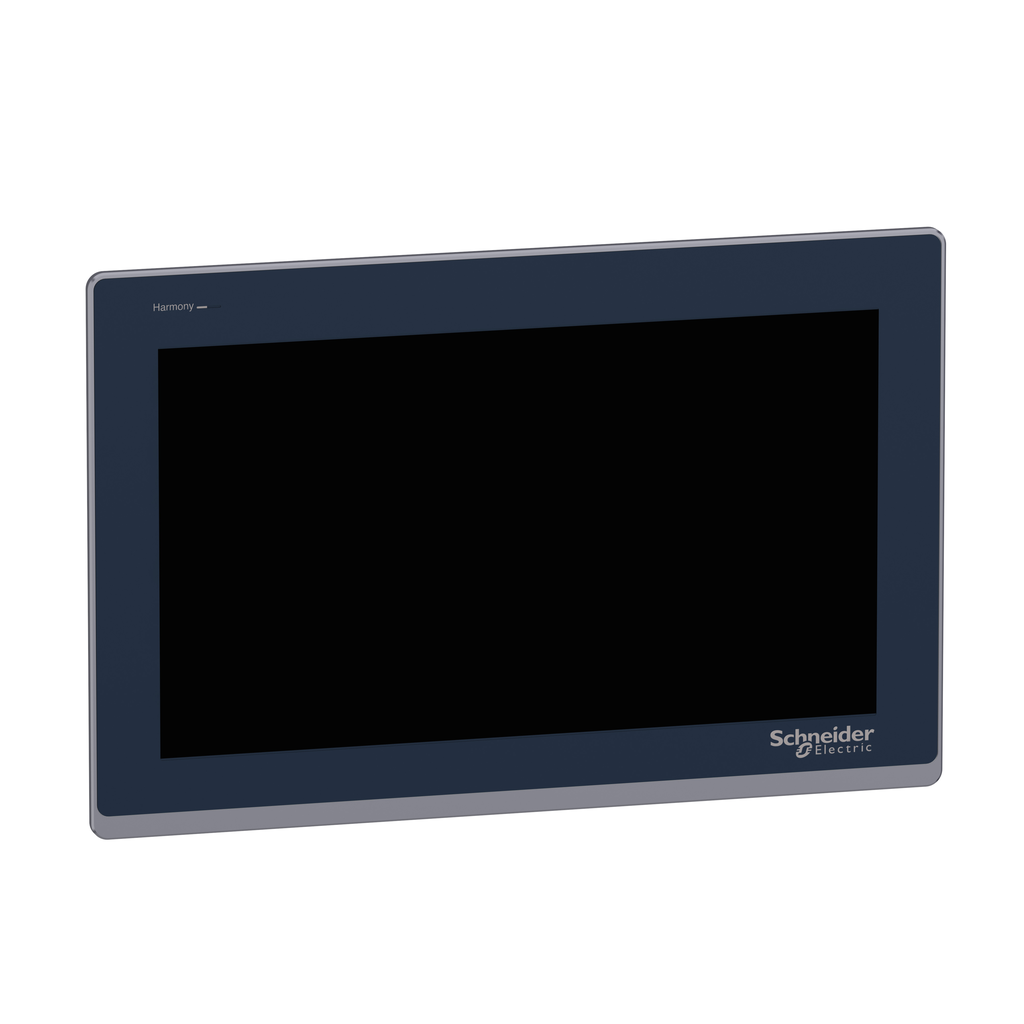

Touch panel screen, Harmony ST6 , 15"W display, 2Ethernet, USB host&device, 24 VDC

• Range Of Product: Harmony ST6
• Product Or Component Type: touch panel screen
• Processor Name: ARM Cortex-A8
• Software Designation: web interface for operator

Complementary

• [Us] Rated Supply Voltage: 24 V DC +/- 20 %)
• Brightness: 16 levels
• Height: 268 mm
• Inrush Current: 30 A
• Power Consumption In W: 18.5 W
• Cut-Out Dimensions: 394 x 250 mm panel cut dimension
• Supply: external supply
• Display Resolution: 1366 x 768 pixels FWXGA
• Marking: CE
• Processor Frequency: 800 MHz
• Net Weight: 2.7 kg
• Fixing Mode: by 6 screws 1.6...5 mm thick panel UL 61010-2-201 || by 6 screws EN 61131-2 || by 6 screws IEC 61000-6-2
• Backlight Lifespan: 50000 hours white
• Touch Panel: single touch analogue resistive
• Local Signalling: status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED red, flashing operating || status LED red, off power supply (OFF)
• Integrated Connection Type: 1 USB 2.0 type Aback || 1 Ethernet - female RJ45bottom
• Display Size: 15 inch
• Enclosure Material: PC
• Display Colour: 16 million colours
• Port Ethernet: 10/100BASE
• Width: 412 mm
• Display Type: colour TFT LCD
• Front Material: aluminium
• Realtime Clock: built-in 0...50 °C || built-in 10...90 % RH
• Depth: 50 mm
• Character Font: ASCII || ASCII (European characters) || Katakana
• Memory Description: 512 MB device memory || 512 MB backup memory || 128 kB user data memory

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1810005EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1810005EN
• Eu Rohs Directive: Compliant

Environment

• Product Certifications: CSA || CE || UKCA
• Ambient Air Temperature For Operation: 0-50 °C
• Standards: EN 61000-6-4 || EN 61000-6-2 || EN 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
• Immunity To Microbreaks: 10 ms
• Electromagnetic Compatibility: electrical fast transient/burst immunity test 2 kV power ports) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV signal ports) || electrostatic discharge immunity test 6 kV contact discharge) EN/IEC 61000-4-2 level 3 || electrostatic discharge immunity test 8 kV air discharge)
• Shock Resistance: 147 m/s² 11 ms X, Y, Z directions for 3 times)EN/IEC 61131-2
• Vibration Resistance: +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz)
• Ip Degree Of Protection: IP20 IEC 61131-2 rear panel) || IP65 IEC 61131-2 front panel)
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ambient Air Temperature For Storage: -20-60 °C
• Nema Degree Of Protection: NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
• Relative Humidity: 10-90 % non-condensing
• Operating Altitude: 6561.68 ft (2000 m)
