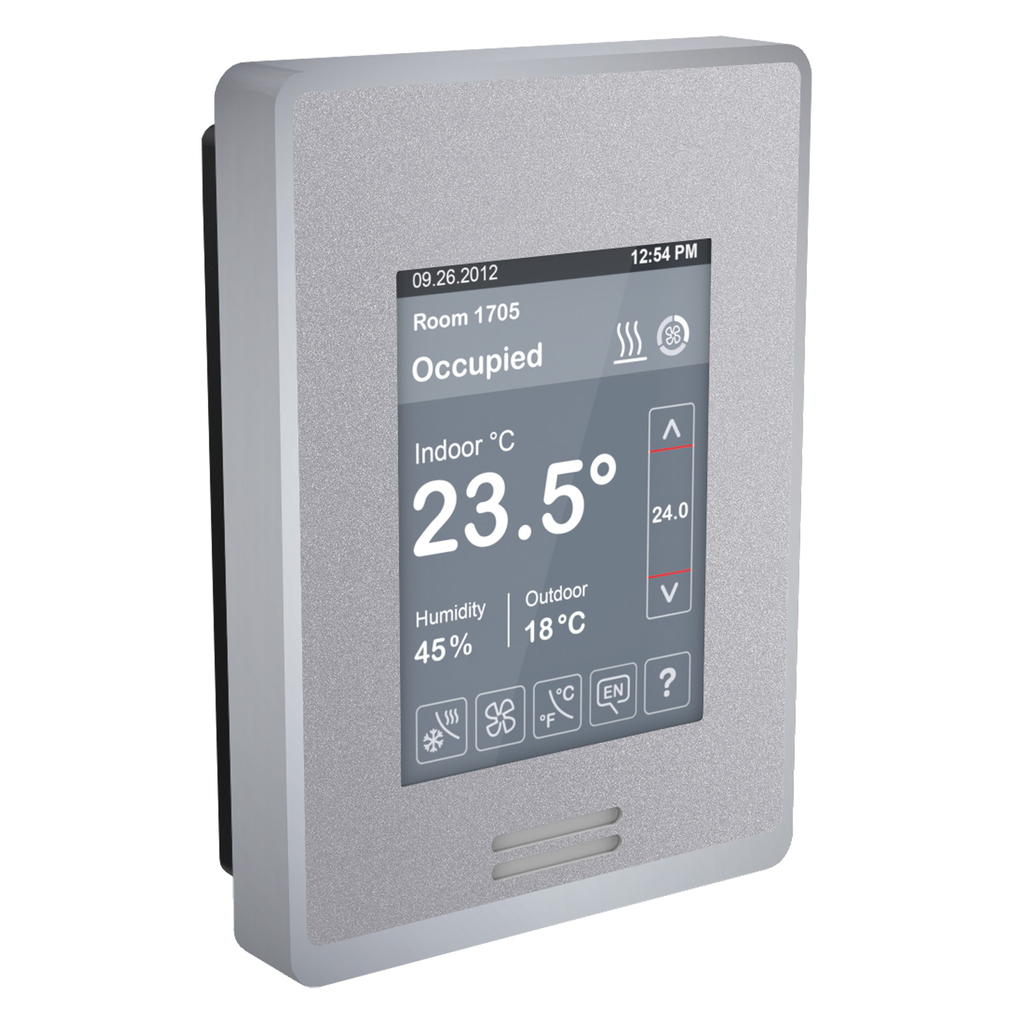

Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, Silver Case/Fascia

• Housing Colour: silver
• Ambient Air Temperature For Operation: 0-50 °C
• Height: 120 mm
• Calibration Certificate: 1 Pt
• Standards: EN/IEC 60730-1 || FCC part 15 Subpart B || ICES-003 || ETSI EN 300 328 || ETSI EN 301 489-1:v1.9.2 || FCC part 15 Subpart C || UL 60730-2-9 || ETSI EN 301 489-17:v2.2.1, 2012
• Output Voltage: 24 V AC/DC relay output || 0...10 V AC/DC voltage output
• Targeted Region: North America.
• Product Or Component Type: roof top unit
• Output Type: 5 xrelay output || 4 xuniversal
• Humidity Measurement Drift: Less Than 1 % Yearly
• Product Name: SE8000 Series
• Net Weight: 340 g
• Range: EcoStruxure Building Expert
• Input Type: dry contact 2 || analog 5
• Communication Port Protocol: BACnet MS/TP || Modbus RTU
• Directives: 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive
• Awg Gauge: AWG 22...AWG 18
• Ambient Air Temperature For Storage: -30-50 °C
• Output Current: 1 A relay output || 3 A relay output inrush) || 0.3 A universal output || 1.5 A universal output inrush)
• Input Voltage: 0...10 V
• Sensor Type: 10 kOhm T2 NTC thermistor Temperature || space RH sensor Humidity || bulk polymer Humidity
• Relative Humidity: 0-75 %
• Temperature Setting Range: 12-37.5 °C cooling || 4.5-32 °C heating
• Width: 86 mm
• Humidity Setting Range: 30-95 %
• Market Segment: Lodging/Hotel || small commercial || buildings || healthcare || non-critical buildings || office || residential || school
• Temperature Resolution: 0.1 °C
• Depth: 25 mm
• Device Application: staging equipment (RTU/HP)
• Device Short Name: SE8600

Complementary

• Surface Finish: Matte
• Surface Treatment: untreated

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Eu Rohs Directive: Compliant
