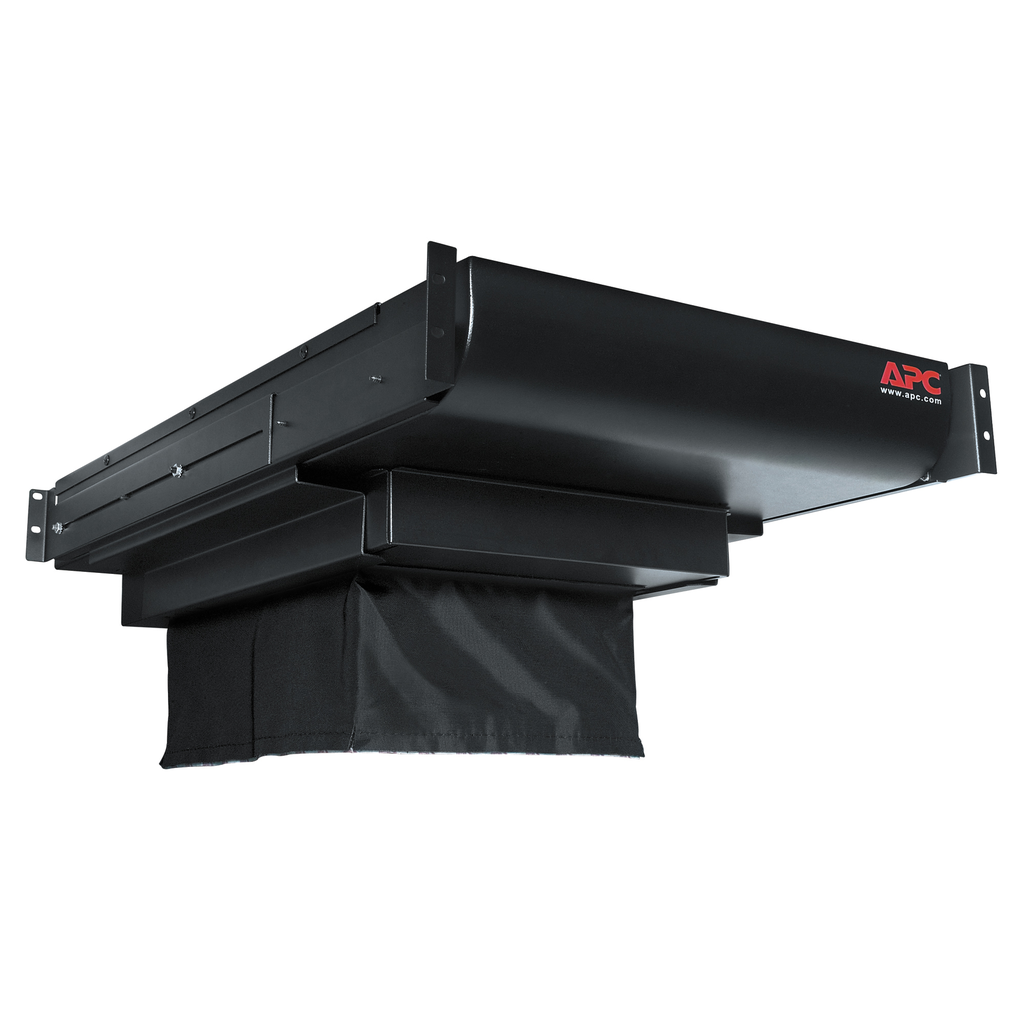

Rack Air Distribution Unit 2U 208/230V 50/60HZ

• Main Input Voltage: 208 V || 230 V
• Number Of Cables: 2
• Number Of Rack Unit: 2U
• Provided Equipment: Rack Mounting brackets || User Manual

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Acoustic Level: 70 dBA

General

• Air Flow: 420 ft³/min

Physical

• Height: 8.9 cm
• Mounting Mode: rack-mounted
• Color: Black
• Width: 42.2 cm
• Depth: 73.7 cm
• Net Weight: 18.64 kg

Offer Sustainability

• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Input

• Input Power: 230 W
• Input Frequency: 50/60 Hz

Overview

• Lead Time: Usually in Stock
• Presentation: The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.

Conformance

• Product Certifications: CE || UL Recognized

Certificate

CAD

Firmware

Application Notes

Technical Drawing

User guide
