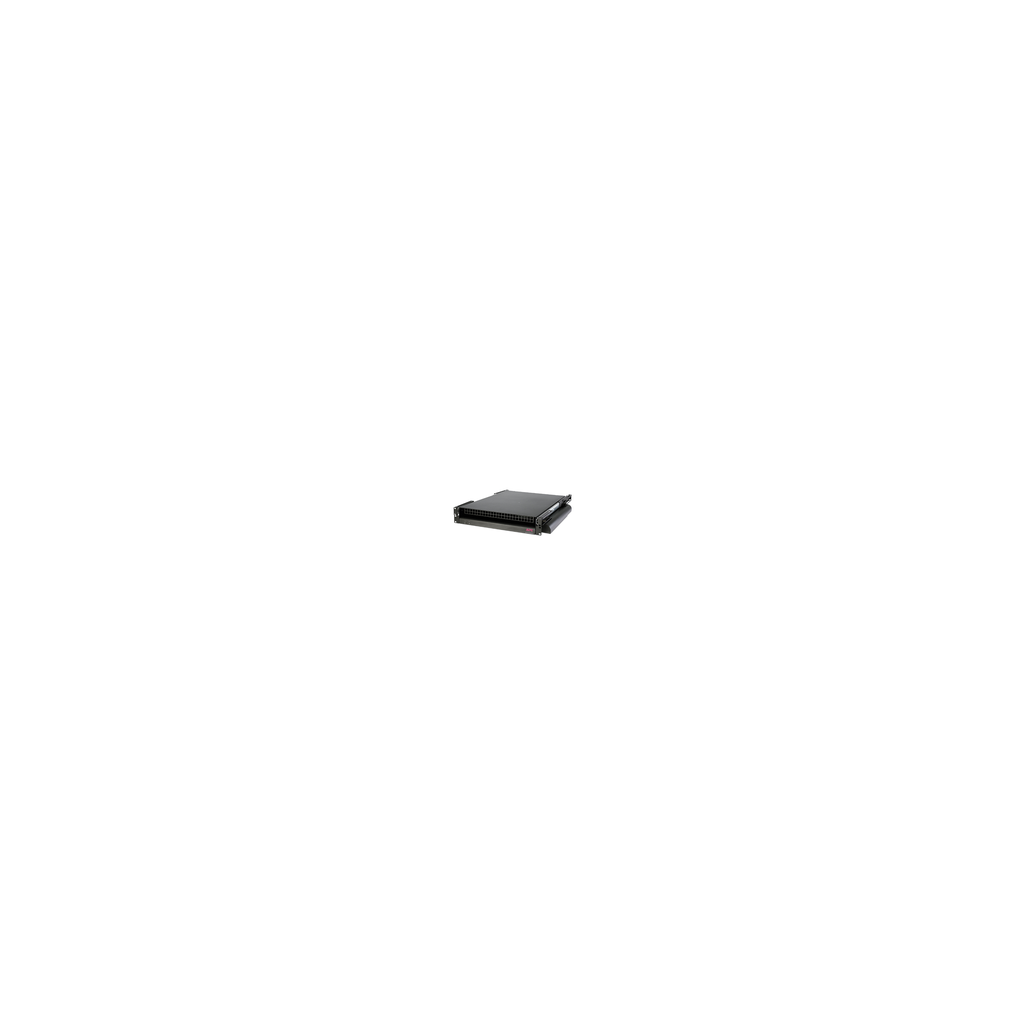

Rack Side Air Distribution 2U 115V 60HZ

• Main Input Voltage: 120 V
• Number Of Cables: 2
• Number Of Rack Unit: 2U
• Provided Equipment: Installation guide || Rack Mounting brackets || User Manual

Contractual warranty

• Warranty: 2 years repair or replace

General

• Air Flow: 260 ft³/min

Communications & Management

• Control Panel: Power on/off indicator

Physical

• Height: 8.7 cm
• Mounting Mode: rack-mounted
• Color: Black
• Width: 43.1 cm
• Depth: 66.9 cm
• Net Weight: 14.56 kg

Offer Sustainability

• Eu Rohs Directive: Under investigation
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Input

• Input Power: 150 W
• Input Frequency: 60 Hz +/- 5 Hz

Overview

• Lead Time: Usually in Stock
• Presentation: Housing equipment with side to side airflow creates many challenges for IT and facility managers, particularly in regards to cooling. Because most enclosures are designed for a front to back airflow pattern, it is difficult to maintain ideal operating temperatures on side to side airflow equipment. The Rack Side Air Distribution Unit is a 2U rack mountable air distribution product for networking equipment or servers with side to side airflow. It pulls in conditioned air from the front of the rack and distributes it to the side air intake of the networking equipment.

Conformance

• Product Certifications: UL Recognized
