Product Description
- Number Of Rack Unit: 0U
- Provided Equipment: Installation guide || Mounting pads
Contractual warranty
- Warranty: 2 years repair or replace
Environmental
- Storage Relative Humidity: 0-95 %
- Ambient Air Temperature For Operation: 0-45 °C
- Ambient Air Temperature For Storage: -40-65 °C
- Storage Altitude: 0-50000 ft
- Relative Humidity: 0-95 %
- Operating Altitude: 0...10000 ft
Physical
- Height: 9.9 cm
- Mounting Mode: not rack-mountable
- Color: Black
- Width: 4.3 cm
- Depth: 2.8 cm
- Net Weight: 0.08 kg
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Eu Rohs Directive: Compliant
- California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Overview
- Lead Time: Usually in Stock

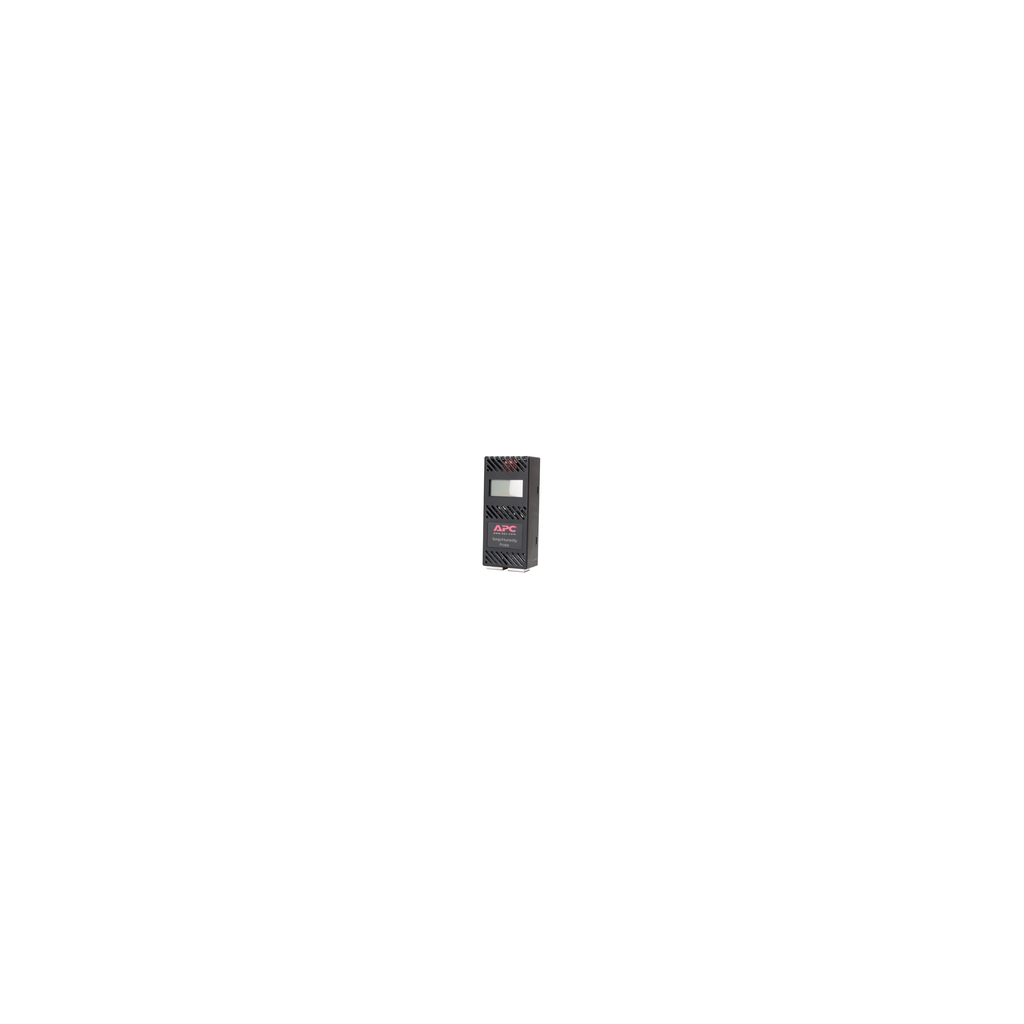

- Presentation: APC A-Link Sensor that monitors temperature and humidity in your Data Center or Network Closet. Display provides visual reporting of temperature levels. Compatible with select NetBotz appliances.
Conformance
- Product Certifications: AS/NZS 3548 (C-Tick) Class A || CE || VCCI
- Standards: EN 55022 Class A || EN 55024 || FCC Part 15 class A || ICES-003
Spec Sheet
Sensors Temperature and Humidity with Display (Sheet) - ASTE-6Z5QC9_R0_EN_SRC (pdf)
Sensors Installation and Quick Start Addendum: AP9319 & AP9320 (Manual Addendum) - ASTE-6Z5QAU_R0_EN (pdf)
Quick start guide
Sensors Temperature and Humidity with Display (Sheet) - ASTE-6Z5QC9_R0_EN (pdf)Sensors Temperature and Humidity with Display (Sheet) - ASTE-6Z5QC9_R0_EN_SRC (pdf)
Catalog
Rack Power Distribution Unit (PDU) Pocket Guide - 1014e-APC-NetShelterPDUAdvanced_PocketGuide_rev11 (pdf)User guide
Sensors Installation and Quick Start Addendum: AP9319 & AP9320 (Manual Addendum) - ASTE-6Z5QAU_R0_EN_SRC (pdf)Sensors Installation and Quick Start Addendum: AP9319 & AP9320 (Manual Addendum) - ASTE-6Z5QAU_R0_EN (pdf)
