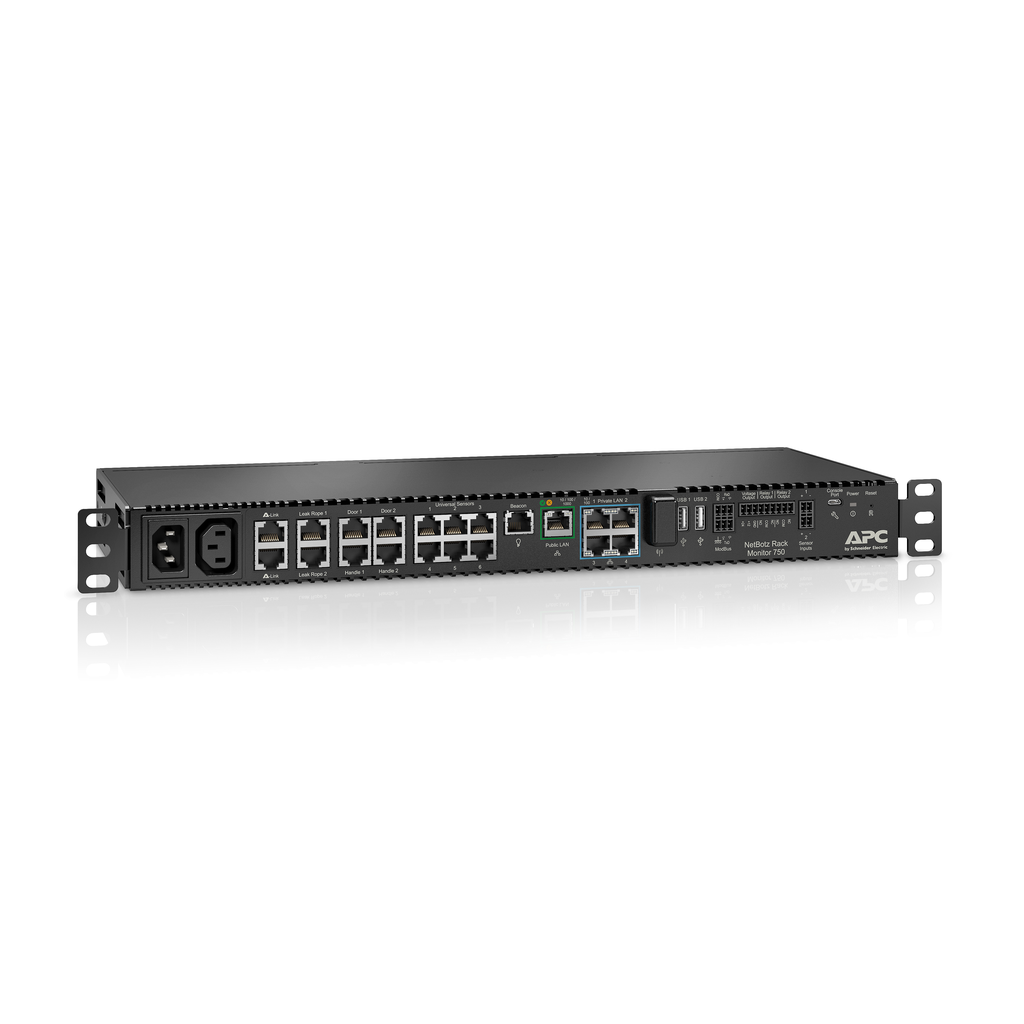

NetBotz Rack Monitor 750

• Communication Port Protocol: A-Link || DHCP || HTTPS || IPv4 || SNMP v1 || SNMP v3 || SSH v2 || TCP/IP
• Number Of Rack Unit: 1U
• Provided Equipment: Rack Mounting brackets || Temperature/Humidity Sensor || USB cable
• Product Compatibility: Rack Sensor Pod 150 || Room Sensor Pod 155

Environmental

• Storage Relative Humidity: 0-95 %
• Ambient Air Temperature For Operation: 0-40 °C
• Ambient Air Temperature For Storage: -15-65 °C
• Storage Altitude: 0-50000 ft
• Relative Humidity: 0-95 %
• Operating Altitude: 0...10000 ft

General

• Display Resolution: Up to 1280x1024
• Camera Frame Rate: Up to 30fps

Communications & Management

• Communication Network Type: RJ-45 10/100/1000 Base-T

Physical

• Height: 4.3 cm
• Mounting Mode: rack-mounted
• Color: Black
• Mounting Position: horizontal
• Width: 43.2 cm
• Depth: 17.8 cm
• Net Weight: 2.45 kg
• Mounting Location: front || rear

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Under investigation
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Overview

• Lead Time: Usually in Stock
• Presentation: The NetBotz Rack Monitor 750 provides integrated surveillance,sensing, access control, and advanced alerting for IT environmentsof all sizes, from single-rack edge networks to large data centers.

Conformance

• Product Certifications: 2014/30/EU || AS/NZS 3548 (C-Tick) Class A || CE || EMC Directive 2004/108/EC || VCCI Class A
• Standards: CSA C22.2 No. 60950-1-03 || FCC Part 15 class A || ICES-003 || UL 60950-1
