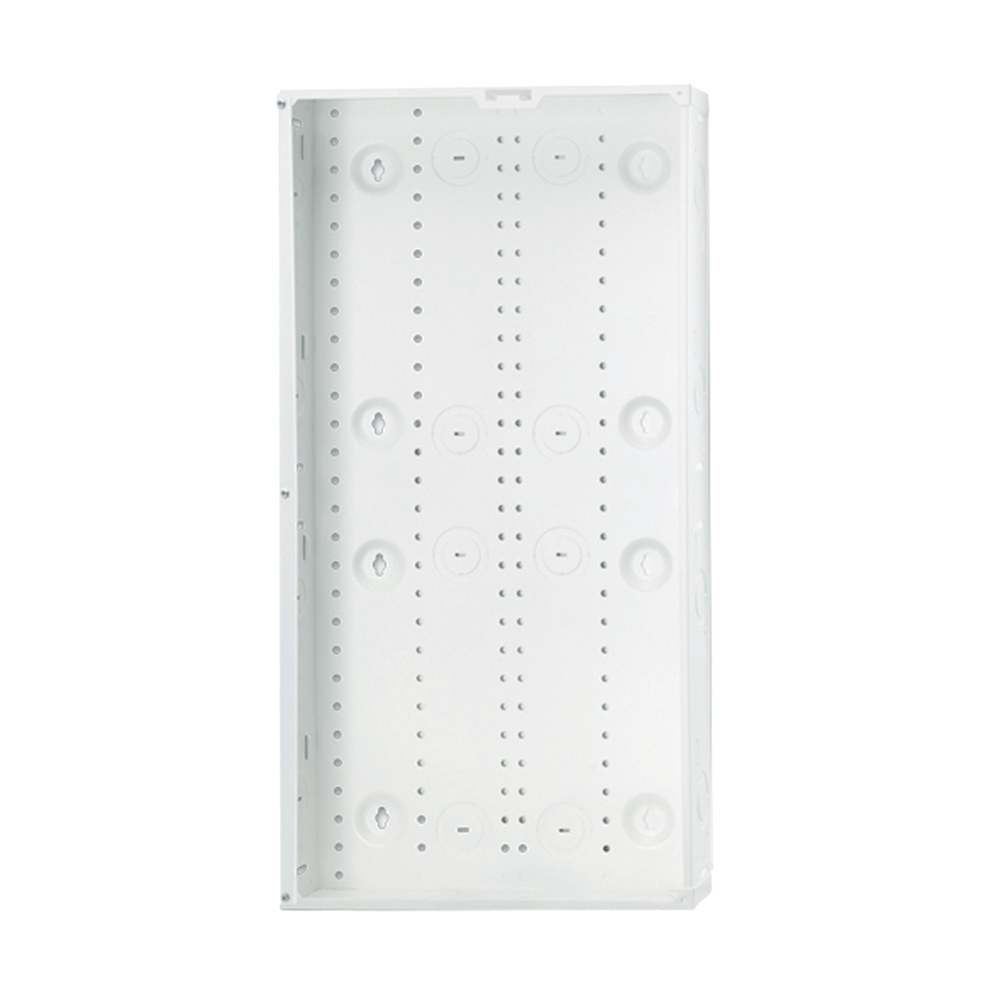

28" Structured Media Enclosure, Metal, White

• Cutout pattern in bottom accommodates single gang or full width
• AC power modules and Mini and Universal DC power supplies
• Mounting slots on the enclosure simplify adjustment for different sheetrock depths
• Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
• Lance slots provide clean cable management within the enclosure
• Product may be surface or recess mounted
• Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
• Keyhole slots on the cover allow for easier installation
• Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
• Self-healing foam grommets protect cable bundles
• Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
• Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door

• Country of Origin: Mexico

Product Features

• Depth: 3.85 Inch
• Height: 28 Inch
• Width: 14.38 Inch
• Color: White
• Gauge of Steel: 18 Gauge
• Paint Finish: Powder-Coated
• Max. Module Capacity: 8
• Notes: Module count dependant of the type used.
• Item: Enclosure Only
• Series: Series 280
• Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
• Warranty: 2-Year Limited

Material Specifications

• Enclosure Material: Steel

Mechanical Specifications

• Knockouts: Multiple up to 2 Inch

Standards and Certifications

• ACA Listed: Yes
• CULUS Listed: Yes
• FCC Rated: Part 68
• TIA/EIA: 568-A 570-A
• UL Listed: Fire and Burglary
