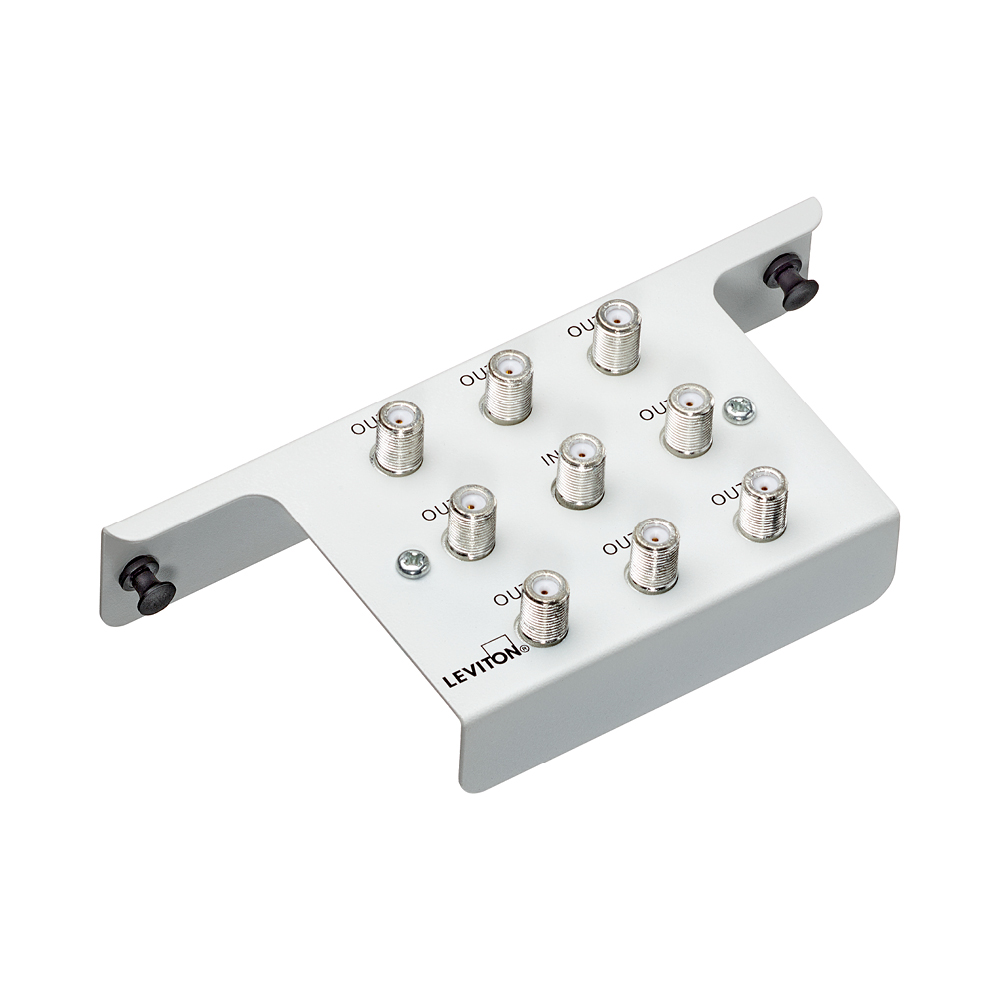

1x8 Passive Video Splitter Module (2.05 GHz)

• Split video signals with outputs for six or eight televisions
• Provide digital cable, cable TV, and other video services via coaxial cable to any room in a house or office
• Durable gold-plated 360-degree insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
• Weather sealed F-ports up to 30 PSI
• 75 Ohm termination caps with splitter modules
• 6kV surge protection
• Built-in capacitors on all ports block DC or low-frequency AC and also prevent current from flowing through splitter's ferrite core windings that cause hum modulation
• High-quality plating passes 1200-hour salt spray test
• Maintains low temperature stability from –40°C to 85° C both in isolation and return loss

• Country of Origin: China
• RoHS Compliant: Yes

Material Specifications

• Bracket Material: Steel Powder-Coated

Product Features

• Color: White
• AC Power Adapter: No
• Frequency Range: 2 GHz
• Style Name: 1X8
• Impedance: 75 Ohm
• Standards and Certifications: Meets all applicable standards
• Type: Passive Video Splitter
• Warranty: 2-Year Limited

Mechanical Specifications

• F-Type Inputs: 1
• F-Type Outputs: 8

Performance Data

• Insertion Loss dB: 11.9 dB - 15.7 dB
• Isolation dB: 32.0 dB - 39.2 dB
• Return Loss dB Forward: 9.9 dB - 30.0 dB
