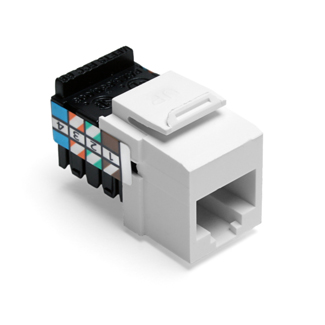

Voice Grade QuickPort Jack, 8P8C, White

• Country of Origin: United States
• RoHS Compliant: Yes

Environmental Specifications

• Flammability: Rated V-0 per UL 94

Product Features

• Body Color: White
• Contact Base Material: Phosphor Bronze
• Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
• Contact Surface Material: 50 microinches thick Gold-Plated
• Cable Type: 8-Conductor UTP Copper USOC
• Position / Conductor: 8P8C
• Termination Type: 110 Punchdown
• Module Type: USOC Voice Grade
• Module Style: Connector
• Warranty: 1-Year Limited

Material Specifications

• Body Material: High-Impact Fire-Retardant Plastic

Standards and Certifications

• CSA: Certified
• FCC: Part 68 Compliant
• NEC: Article 800 Compliant
• TIA/EIA: TIA-568-B
• UL: Listed
