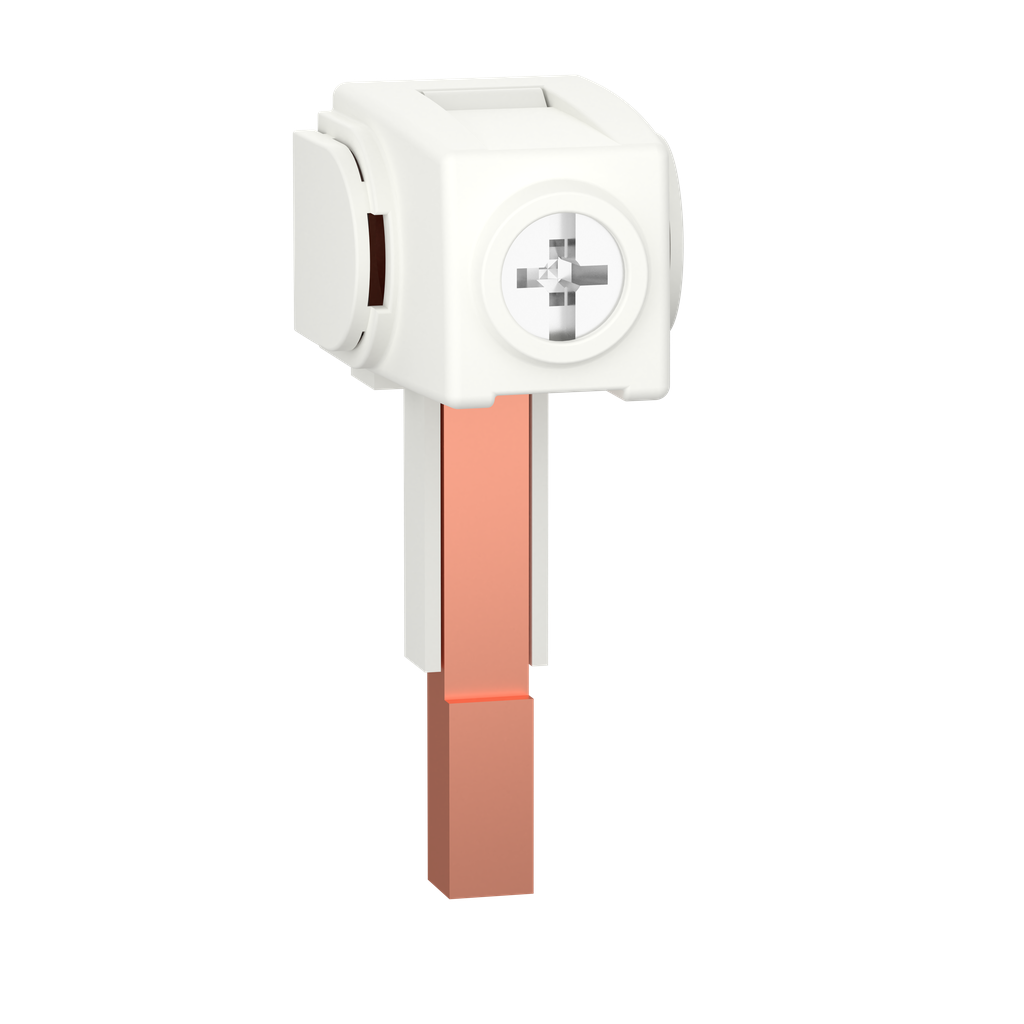

Set of 4 connectors 100A monoconnect for 3P+N comb busbar

• Comb Busbar And Distribution Block Compatibility: monoconnect
• Poles Description: 3P + N
• Accessory / Separate Part Category: connection accessory
• Quantity Per Set: set of 4
• Product Or Component Type: connector
• Product Name: Linergy FH
• Range: Acti9

Contractual warranty

• Warranty: 18 months

Complementary

• Line Rated Current: 100 A
• Connections - Terminals: screw clamp terminals top connector 35-35 mm²
• Range Compatibility: Acti 9 (Acti9 iC60) comb busbar || Acti 9 (Acti9 iK60) comb busbar || Acti 9 (Acti9 iDPN) comb busbar || Acti 9 (Acti9 iDPN Vigi) comb busbar || Acti 9 (Acti9 iID) comb busbar || Acti 9 (Acti9 iID K) comb busbar || Acti 9 (Acti9 iSW) comb busbar || Acti 9 (Acti9 iSW-NA) comb busbar || Acti 9 (Acti9 STI) comb busbar
• Color: White RAL 9003)
• Tightening Torque: 4-4 N.m

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Environmental Disclosure: ENVPEP2005011
• Eu Rohs Directive: Under investigation
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
