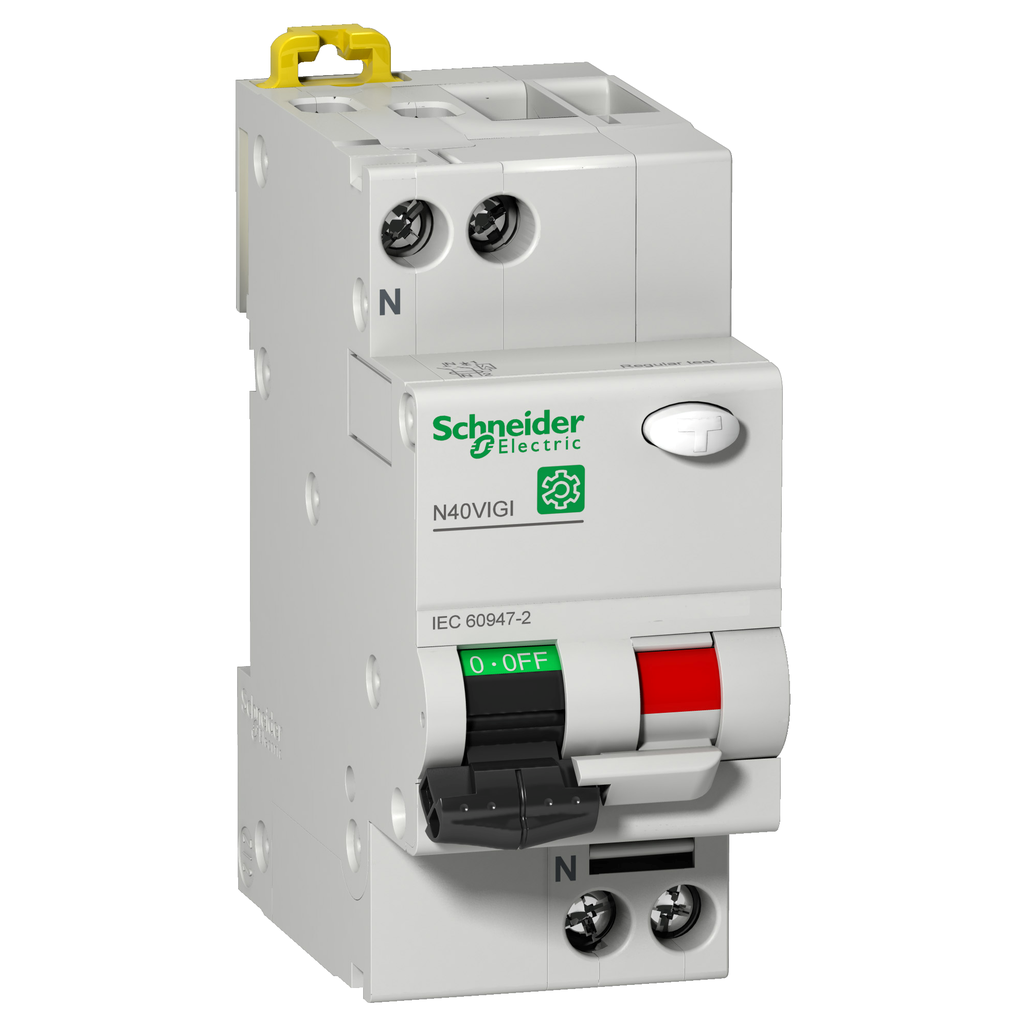

Residual current breaker with overcur. prot. (RCBO), Multi9 N40 Vigi, 1P+N, 10A, C curve, 6000A/6kA, AC type, 300mA

• Line Rated Current: 10 A 50 °C EN/IEC 60947-2
• Curve Code: C
• Number Of Protected Poles: 1
• Network Type: AC
• Earth-Leakage Protection Class: type AC
• Earth-Leakage Sensitivity: 300 mA
• Product Or Component Type: residual current breaker with overcurrent protection (RCBO)
• Product Name: Multi9 N40 Vigi
• Utilisation Category: category A EN/IEC 60947-2
• Range: Multi9
• Earth-Leakage Protection Time Delay: instantaneous
• Breaking Capacity: 6 kA Icu 240 V AC 50 Hz EN/IEC 60947-2 || 6000 A Icn 240 V AC 50 Hz EN/IEC 61009-1
• Suitability For Isolation: yes EN/IEC 60947-2
• Poles Description: 1P + N
• Neutral Position: left
• Device Application: distribution
• Device Short Name: N40 Vigi
• Trip Unit Technology: thermal-magnetic

Complementary

• Network Frequency: 50 Hz
• [Ics] Rated Service Breaking Capacity: 4.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50 Hz
• Height: 81 mm
• Contact Position Indicator: yes
• Earth-Leakage Protection: integrated
• Mounting Support: DIN rail
• 9 Mm Pitches: 4
• Limitation Class: 3 EN/IEC 61009-1
• Surge Current: 250 A
• Net Weight: 0.125 kg
• Wire Stripping Length: 13 mm top or bottom
• Control Type: toggle
• Connections - Terminals: tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
• Residual Current Tripping Technology: voltage independent
• [Ui] Rated Insulation Voltage: 400 V AC 50 Hz EN/IEC 60947-2
• Mounting Mode: clip-on
• Electrical Durability: 20000 cycles
• Rated Breaking And Making Capacity: Idm 4500 A 240 V AC 50 Hz EN/IEC 61009-1
• Mechanical Durability: 20000 cycles
• Local Signalling: ON/OFF indication || fault indication
• Connection Pitch: 9 mm between phase and neutral
• [Uimp] Rated Impulse Withstand Voltage: 4 kVEN/IEC 60947-2
• Color: Gray
• Width: 36 mm
• Provision For Padlocking: padlockable
• Depth: 70 mm
• Tightening Torque: 2-2 N.m top or bottom
• Magnetic Tripping Limit: 8.5 x In +/- 20 % AC
• [Ue] Rated Operational Voltage: 240 V AC 50 Hz

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111021EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Ambient Air Temperature For Operation: -5-60 °C
• Tropicalisation: 2 IEC 60068-1
• Standards: EN/IEC 61009-1 || EN/IEC 60947-2
• Electromagnetic Compatibility: 8/20 µs impulse withstand, 250 A
• Ip Degree Of Protection: IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
• Pollution Degree: 3 EN/IEC 60947-2
• Ambient Air Temperature For Storage: -30-70 °C
• Relative Humidity: 95-95 % 55-55 °C
• Overvoltage Category: IV
