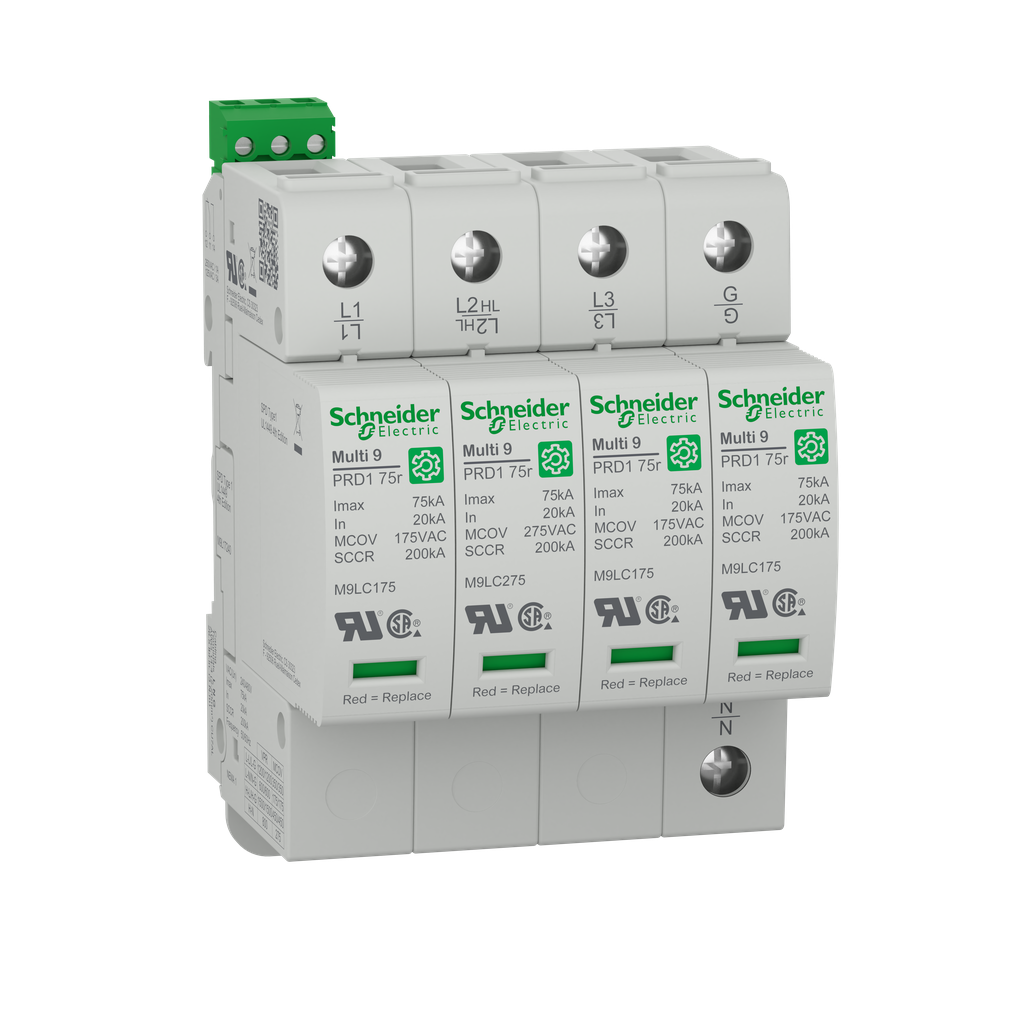

surge arrester, Multi9 PRD1 75r, 4P, 120/240 V

• Remote Signalling: with
• Product Or Component Type: surge arrester
• Product Name: Multi9 PRD1
• Range: Multi9
• Signal Contacts Composition: 1 SD (1 C/O)
• Surge Arrester Type: electrical distribution network
• Poles Description: 4P
• Device Short Name: PRD1 75r

Complementary

• Surge Arrester Technology: MOV
• Height: 91.7 mm
• Surge Arrester Class Type: type 1
• Mounting Support: DIN rail
• Nominal Discharge Current: common mode 20 kA L/PE)
• 9 Mm Pitches: 8
• [Iimp] Impulse Current: 75 kA
• Maximum Discharge Current: 75 kA
• [Uc] Maximum Continuous Operating Voltage: common mode 175 V AC L/N || differential mode 350 V AC L/L || common mode 350 V AC L/PE || common mode 175 V AC N/PE || differential mode 450 V AC H/L || common mode 450 V AC H/PE || common mode 275 V AC H/N
• Net Weight: 703 g
• Wire Stripping Length: 10 mm L/N || 10 mm PE || 6 mm dry contacts
• Short-Circuit Withstand: 200 kA
• Connections - Terminals: tunnel type terminal 6-35 mm² AWG 10...AWG 2) - rigid || tunnel type terminal 6-25 mm² AWG 10...AWG 4) - flexible || tunnel type terminal dry contacts) 0.5-1.5 mm²
• Disconnector Device Type: associated circuit breaker 30 A C 14 kA
• Mounting Mode: clip-on
• Local Signalling: green mechanical indicator operating || red mechanical indicator end of life
• Maximum [Up] Voltage Protection Level: common mode <1200 V L/PE || differential mode <600 V L/N || common mode <1200 V L/L || common mode <600 V N/PE || differential mode <1500 V H/L || common mode <1500 V H/PE || common mode <800 V H/N
• Response Time: < 25 ns
• Color: Gray RAL 7035)
• Width: 70 mm
• Wiring Configuration: 5-wire
• Depth: 71.4 mm
• Tightening Torque: 3-3 N.m L/N || 3-3 N.m PE

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -25-60 °C
• Standards: UL 1449:ed. 4
• Pollution Degree: 3
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 0-95 %
• Ip Degree Of Protection: built-in NEMA 1
• Operating Altitude: 6561.68 ft (2000 m)
