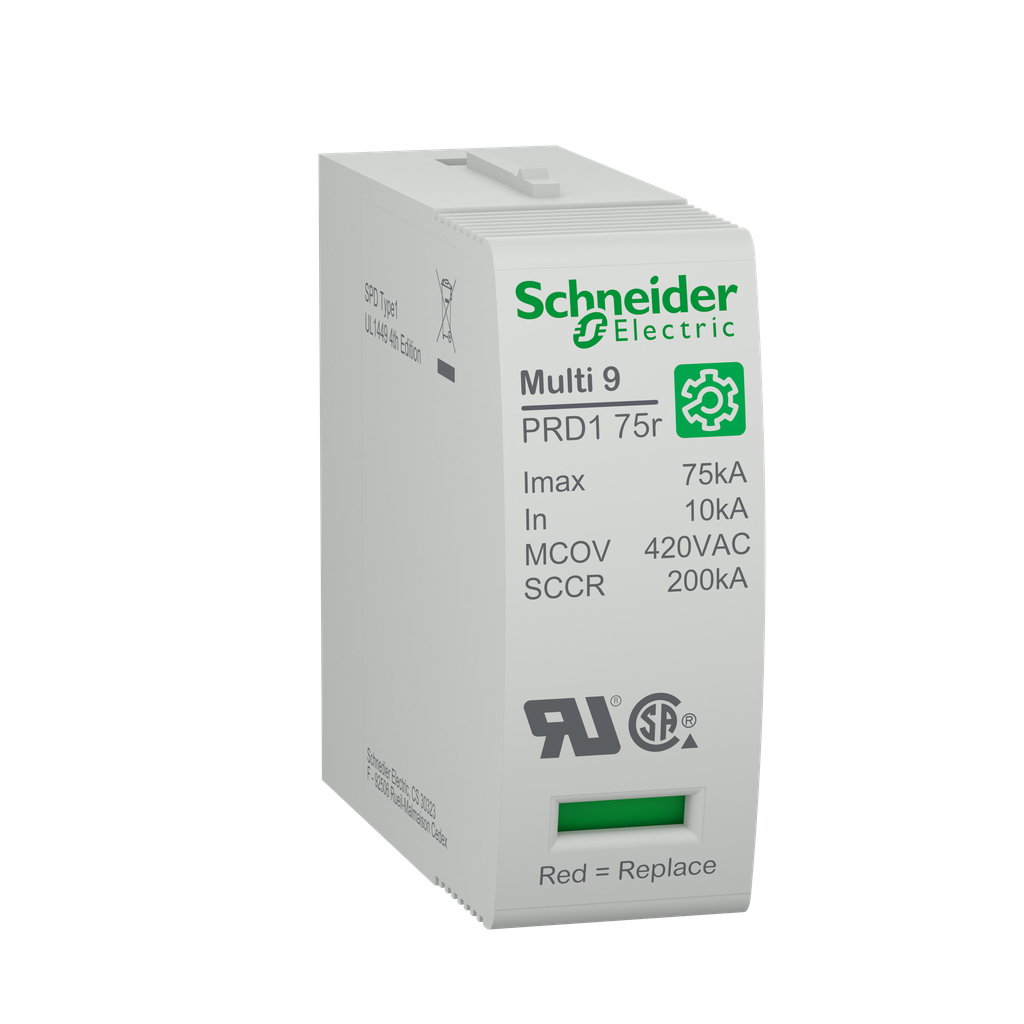

surge arrester cartridge, Multi9 PRD1 75r, 1P, 347 V

• Product Or Component Type: cartridge
• Product Name: Multi9 PRD
• Range: Multi9
• Poles Description: 1P

Complementary

• Surge Arrester Technology: MOV
• Height: 45 mm
• Surge Arrester Class Type: type 1
• Mounting Support: into SPD module
• Nominal Discharge Current: 10 kA
• 9 Mm Pitches: 2
• Maximum Discharge Current: 75 kA
• [Uc] Maximum Continuous Operating Voltage: 420 V
• Net Weight: 82 g
• Mounting Mode: plug-in
• Local Signalling: mechanical indicator green and red)
• Maximum [Up] Voltage Protection Level: <1500 V
• Response Time: < 25 ns
• Color: Gray RAL 7035)
• Width: 17.5 mm
• Depth: 68.5 mm
• [Ue] Rated Operational Voltage: 347 V AC 50-60 Hz

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -25-60 °C
• Standards: UL 1449
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 0-95 %
• Quality Labels: CSA || UR
• Ip Degree Of Protection: NEMA 1
• Operating Altitude: 0...6561.68 ft (0...2000 m)
