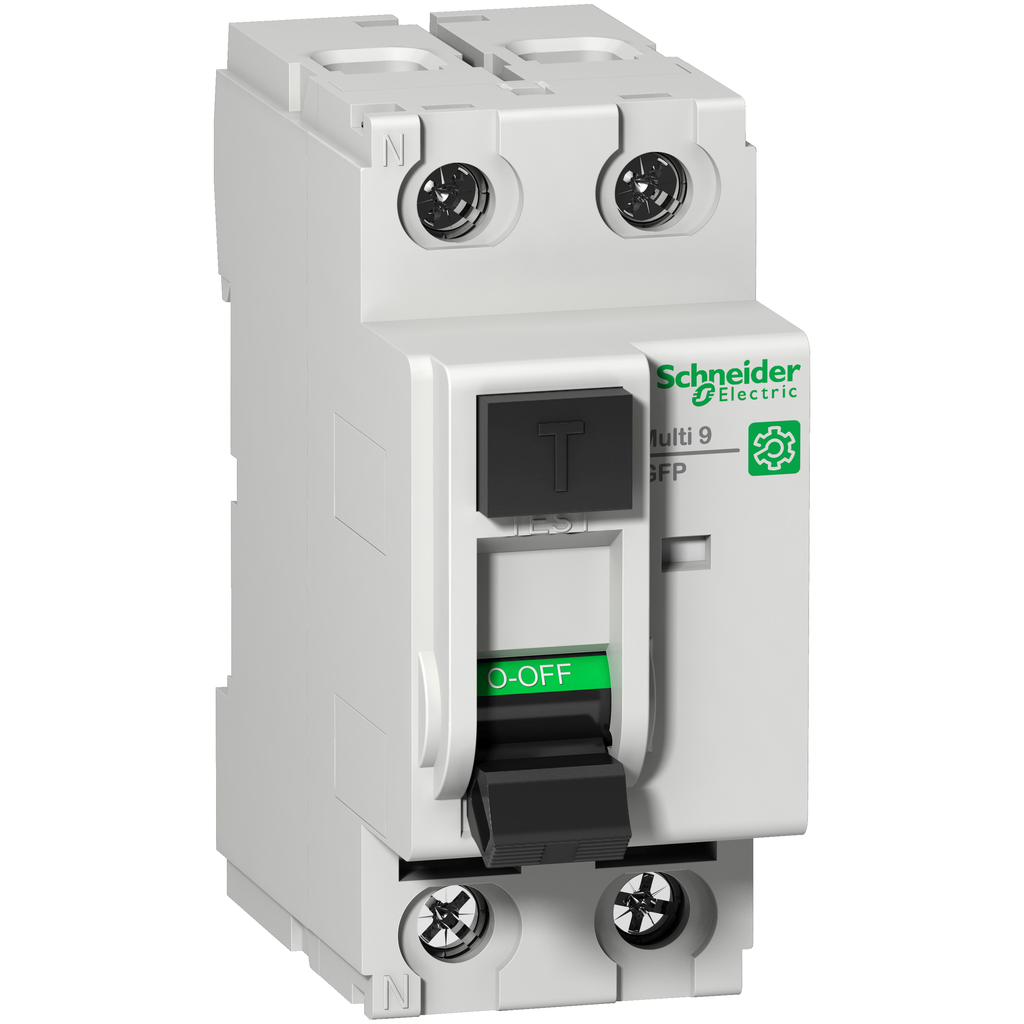

Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 25A, A-SI type, 30mA, 480Y/277VAC

• Line Rated Current: 25 A 40 °C EN/IEC 61008-1
• Network Type: AC
• Earth-Leakage Protection Class: type A-SI (Super Immunised)
• Earth-Leakage Sensitivity: 26 mA UL 1053 || 30 mA EN/IEC 61008-1
• Product Or Component Type: residual current circuit breaker (RCCB)
• Product Name: Multi9 GFP
• Utilisation Category: AC-23A EN/IEC 61008-1
• Range: Multi9
• Earth-Leakage Protection Time Delay: instantaneous
• Poles Description: 2P
• Neutral Position: left
• Device Application: distribution
• Device Short Name: GFP

Complementary

• Network Frequency: 50/60 Hz
• Height: 81 mm
• Contact Position Indicator: yes
• Locking Options Description: padlocking in OFF position
• Mounting Support: DIN rail
• 9 Mm Pitches: 4
• Connections - Terminals: tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
• Net Weight: 0.22 kg
• Wire Stripping Length: 14 mm top or bottom
• Control Type: toggle
• Residual Current Tripping Technology: voltage independent
• [Ui] Rated Insulation Voltage: 440 V AC 50/60 Hz
• Mounting Mode: clip-on
• Rated Breaking And Making Capacity: Idm 1500 A EN/IEC 61008-1
• Mechanical Durability: 20000 cycles
• Local Signalling: ON, OFF, fault trip
• [Uimp] Rated Impulse Withstand Voltage: 6 kVEN/IEC 61008-1
• Color: Gray
• Width: 36 mm
• Depth: 60 mm
• Tightening Torque: 3.5-3.5 N.m top or bottom
• Rated Conditional Short-Circuit Current: Inc 10 kA 100 A gG
• [Ue] Rated Operational Voltage: 480Y/277 V AC 60 Hz || 240/415 V AC 50 Hz

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2301023EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant

Environment

• Ambient Air Temperature For Operation: -25-60 °C
• Tropicalisation: 2 IEC 60068-1
• Standards: EN/IEC 61008-1 || UL 1053
• Product Certifications: IEC || UL
• Electromagnetic Compatibility: 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
• Ip Degree Of Protection: IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
• Pollution Degree: 3
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 95-95 % 55-55 °C
