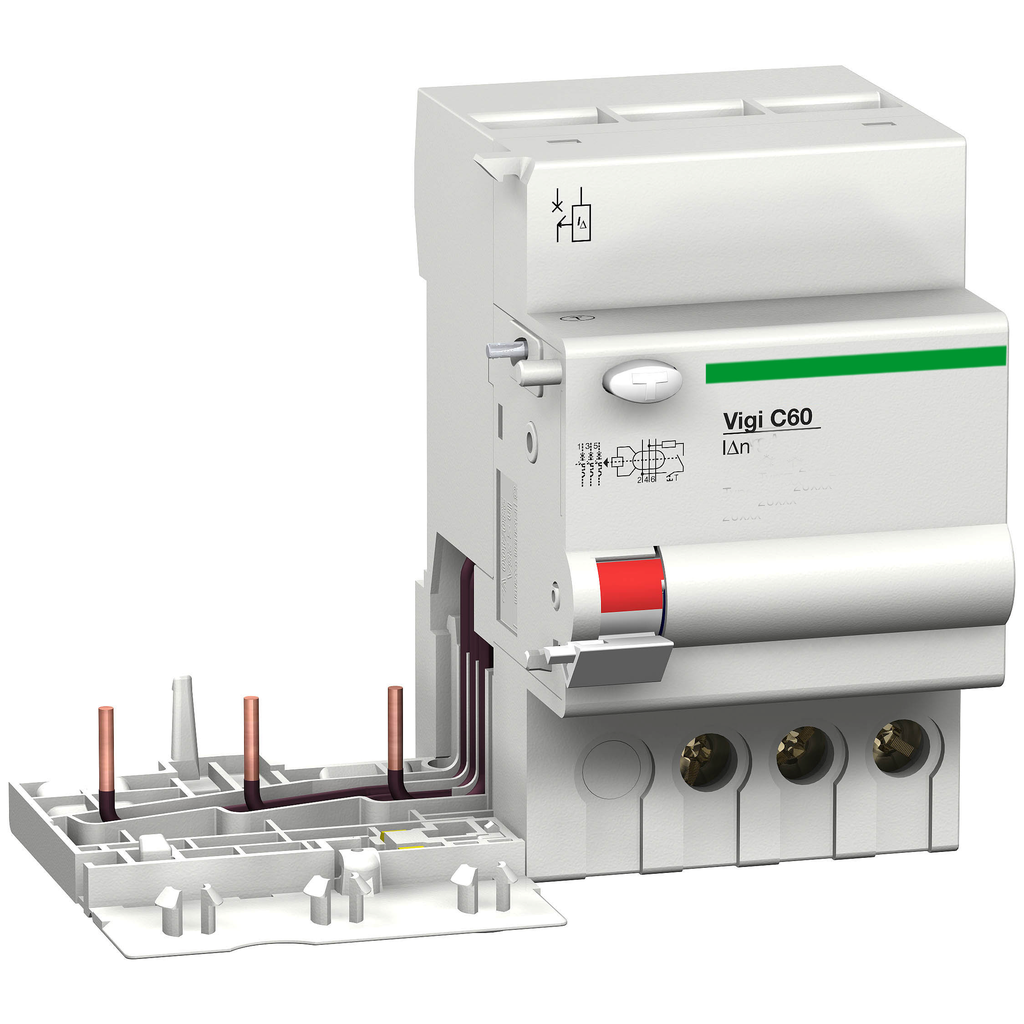

Multi9 - Vigi C60 - 3P - 63A - class AC - 230/400 V - 300mA

• Network Frequency: 50 Hz
• Line Rated Current: 63 A EN/IEC 61009-1
• Network Type: AC
• Range Compatibility: Multi9 (Multi9 C60) C60N || Multi9 (Multi9 C60) C60L || Multi9 (Multi9 C60) C60H || Multi9 (Multi9 C60) C60CTRL
• 9 Mm Pitches: 7
• Earth-Leakage Protection Class: type AC
• Earth-Leakage Sensitivity: 300 mA EN/IEC 61009-1
• Product Or Component Type: add-on residual current devices
• Range: Multi9
• Earth-Leakage Protection Time Delay: instantaneous
• Poles Description: 3P
• Device Short Name: Vigi C60
• [Ue] Rated Operational Voltage: 400/415 V AC 50 Hz

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 87 mm
• Mounting Support: DIN rail
• Connections - Terminals: tunnel type terminal bottom) 1-35 mm² - rigid || tunnel type terminal bottom) 1-25 mm² - flexible || tunnel type terminal bottom) 1-25 mm² - flexible with ferrule
• Net Weight: 210 g
• Wire Stripping Length: 14 mm bottom
• Electrical Connection To Mcb: by screws
• Residual Current Tripping Technology: voltage independent
• [Ui] Rated Insulation Voltage: 500 V AC 50 Hz EN/IEC 61009-1
• Mounting Mode: clip-on
• Local Signalling: fault indication
• [Uimp] Rated Impulse Withstand Voltage: 4 kVEN/IEC 61009-1
• Color: Gray
• Width: 63 mm
• Depth: 74 mm
• Tightening Torque: 3.5-3.5 N.m bottom

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1409017EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Ambient Air Temperature For Operation: -5-60 °C
• Tropicalisation: 2 IEC 60068-1
• Standards: EN/IEC 61009-1 || EN/IEC 61009-2-1
• Electromagnetic Compatibility: 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
• Ip Degree Of Protection: IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
• Pollution Degree: 3 IEC 61009
• Ambient Air Temperature For Storage: -40-60 °C
• Relative Humidity: 95-95 % 55-55 °C
