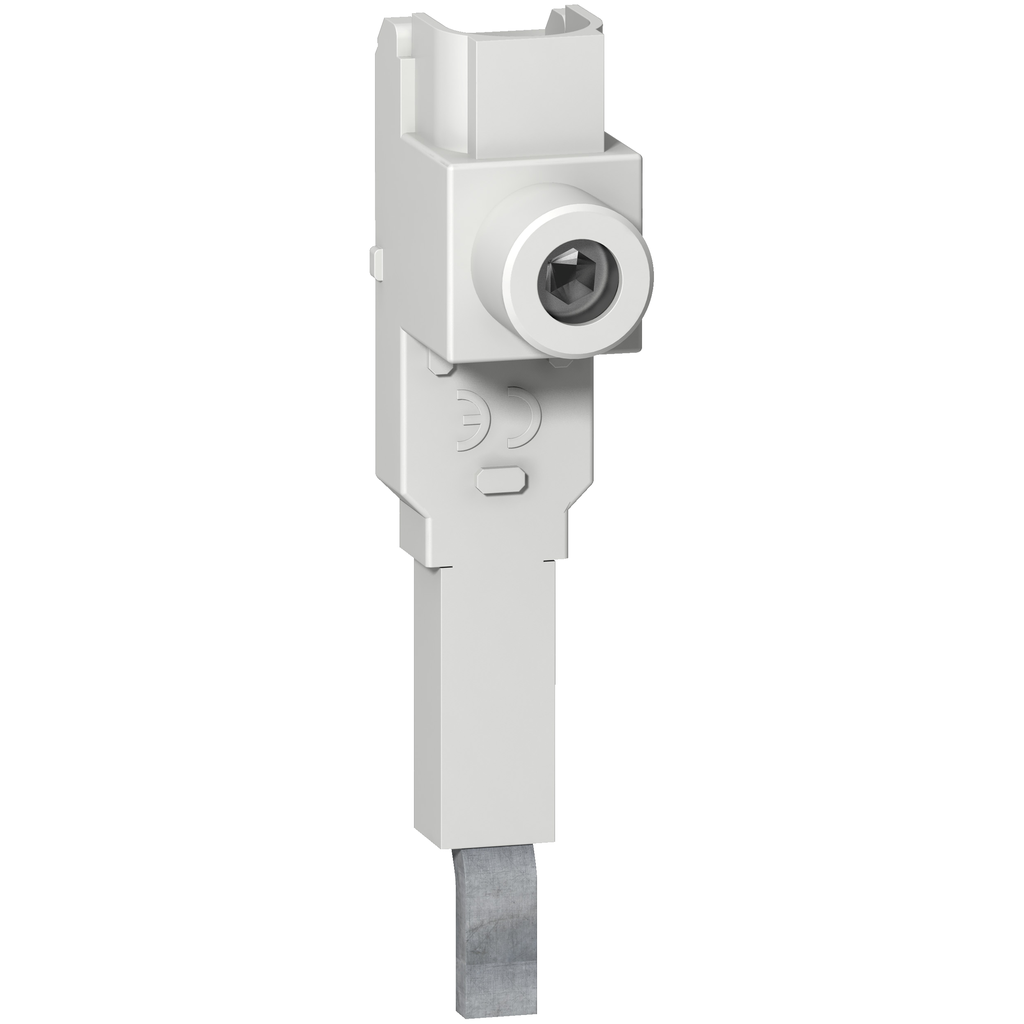

Multi9 - terminals for M9XC comb busbar - set of 4

• Accessory / Separate Part Category: connection accessory
• Quantity Per Set: set of 4
• Product Or Component Type: connector
• Range: Multi9

Complementary

• Line Rated Current: 63 A
• Connections - Terminals: screw terminal top connector 6-35 mm² rigid || screw terminal top connector 6-35 mm² flexible
• Connection Pitch: 18 mm
• Range Compatibility: Multi9 (Multi9 C60) C60BP comb busbar
• Standards: UL 486E
• Product Certifications: cURus || IEC
• [Ui] Rated Insulation Voltage: 1000 V
• Color: White RAL 9001)
• Tightening Torque: 3.5-3.5 N.m

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
