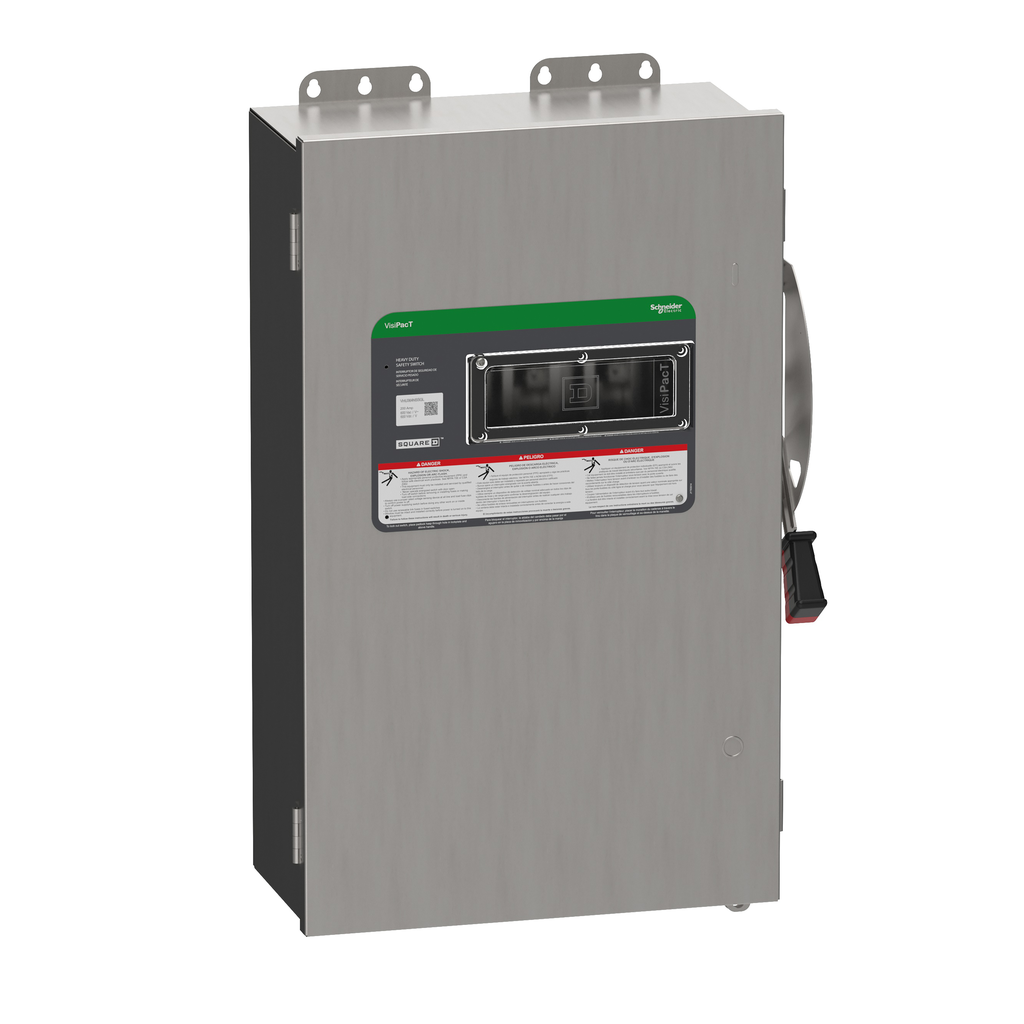

Safety switch, heavy duty, unfused, viewing window, NEMA 4X, 600V, 200A, 3 pole, neutral installed, ground lugs

• Series Name: heavy duty
• Disconnector Device Type: non-fusible disconnect
• Nema Degree Of Protection: NEMA 4X Stainless Steel
• Line Rated Current: 200 A
• Product Or Component Type: Single Throw Safety Switch
• Device Composition: neutral (factory installed)
• Device Application: heavy application
• Number Of Poles: 3
• [Ue] Rated Operational Voltage: 600 V AC/DC

Complementary

• Height: 28.9 in
• Device Mounting: surface
• Tightening Torque: 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil)
• Condition Of Use: suitable service entrancefor USA || suitable service entrancefor Mexico
• Services: factory installation
• Electrical Connection: lugs
• Awg Gauge: AWG 6...250 kcmil copper or aluminium
• Wiring Configuration: 4-wire (3PH + N)
• Width: 17.474 in
• Depth: 8.937 in
• Net Weight: 24.95 kg

Offer Sustainability

• Eu Rohs Directive: Under investigation
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL listed file E2875
