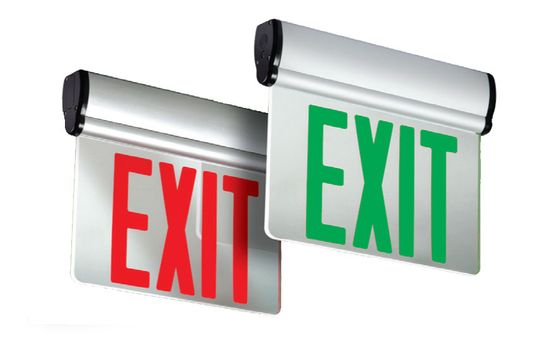

Edge-Lit Exit Sign Self-Powered 6" EXIT Single & Double Face with Universal Chevrons

This attractive and versatile LED illuminated exit sign has a universal mount with a pivoting panel design, allowing for surface, recessed or end-mounted installations. Emergi-Lite emergency lighting also includes single or double faces with universal chevrons. The Emergi-Lite PNG6 model features green exit lettering, while the Emergi-Lite PNR6 model has red exit lettering.

Standard Features

• Universal mount, surface, recessed or end-mount
• High performance low power consumption LEDs
• Peel-off chevrons
• Special wording panel not available

Construction

• Brushed aluminum housing and black plastic end-caps, with high grade acrylic panel.
• Choice of legend colors: red on mirror or green on mirror

Electrical

• Dual-voltage input capability 120/277 VAC
• Self-powered models feature battery delivering more than 90 minutes capacity in emergency mode

Installation

• Universal mount
• Surface mount: Pivoting panel design allows for surface installation in any applications, including ceilings and walls.
• Semi recessed mount: Includes back box and necessary hardware for joist or T-Bar ceilings and is vertically adjustable to install in most ceiling thickness.
• Mounting bars lock in place with two screws.

Listings: UL924 listed
Warranty: 3 year full warranty, excluding lamps and fuses
