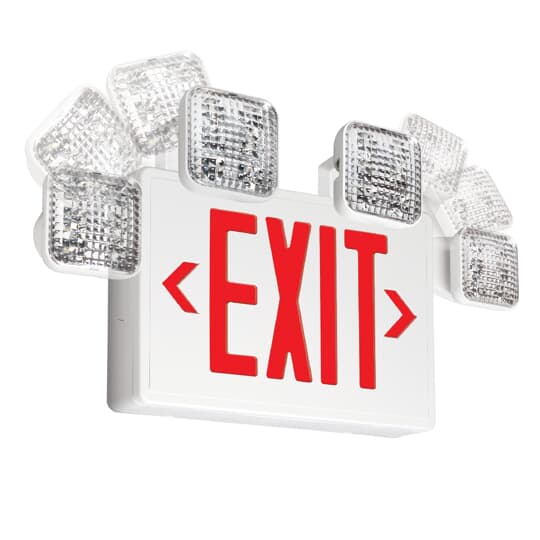

Exit Sign Square LED 3.6 Volts Battery Unit Thermoplastic combination unit Lamp Standard 6V-5.4W 12W LED

Thermoplastic combination unit 12W remote capacity Exit sign Red letters lamp standard 6V-5.4W 12W LED
Remote Capacity can power 1-EF47DSQL or 2-EF12-LED or 1-EF12D-LED

Key benefits:

• Injection-molded UV stabilized thermoplastic housing, faceplates and Canopy
• Innovative snap-together design allows for fast installation. Canopy snaps to housing using a twist-lock feature tightly securing the canopy to the housing
• Replaceable directional chevron inserts are easily removed and re-inserted
• Canopy provided for ceiling or end mount
• Comes with 2 fully adjustable glare free 1W LED heads for egress lighting

• Each unit provides 200 lumens. LED CCT 6000K
• 3.6V maintenance free Ni-Cd battery
• Low power consumption Exit LED’s are operated in normal (AC input) and emergency (DC input) modes
• Suitable for standard ambient temperatures between 50°F to 104°F (10°C to 10°C)
• ELXN400-2SQLR series is available with 3.6V-3W remote capacity for the EF12D-LED series remote
• Remote capacity model ELXN400-2SQLRAD available with advanced diagnostics
• 120/277 VAC dual voltage operation
• LED indicator light and push button test switch
• Low voltage battery disconnect
• UL Listed to UL 924 standards
• Meets or exceeds all requirements of NFPA 70 and NFPA 101 life safety code
• Damp location listing is standard on all models
• UL 94, 5VA flame rated
• Unit has a three year full warranty
