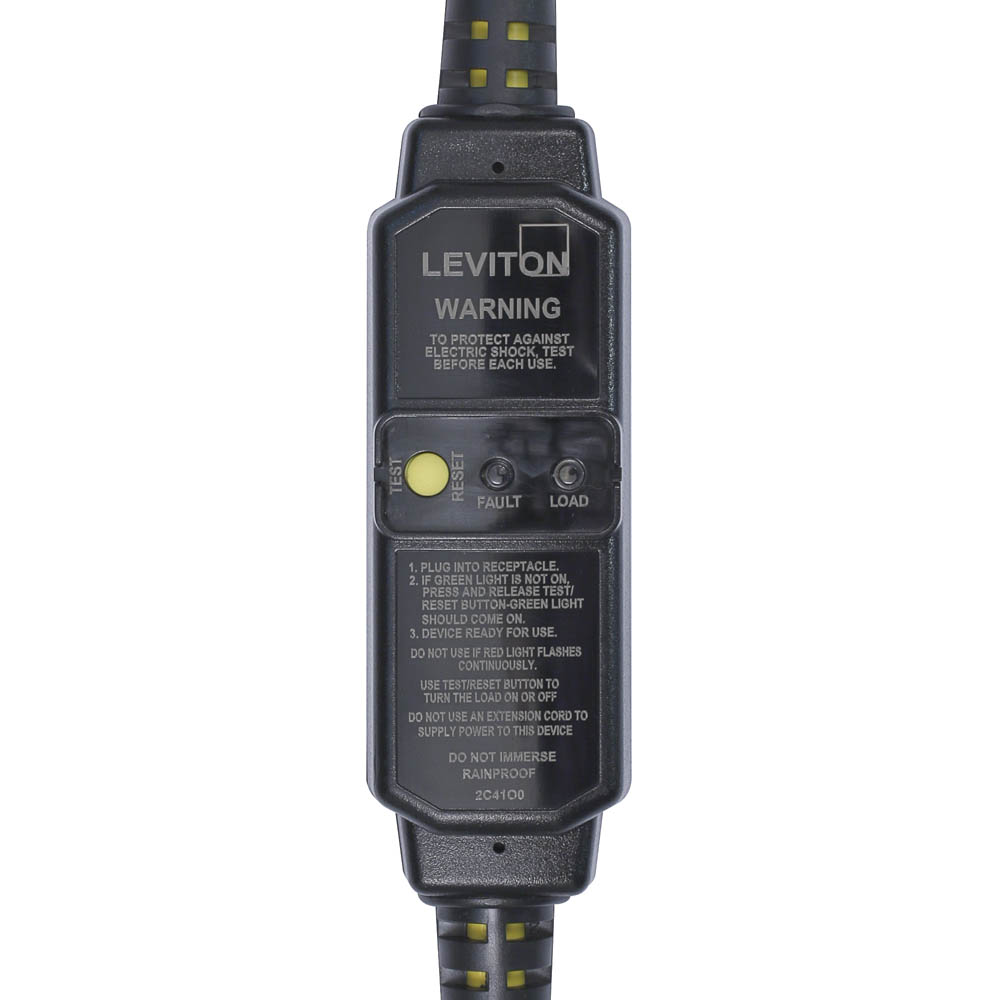

15 Amp GFCI Cord Set, 25 Foot, Automatic Reset

• Satisfies latest UL 943 self-test requirement
• Improve safety – protect critical personnel from electrical shocks
• Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
• Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
• Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations

Patents

• MX265718
• MX344697
• US7436639
• US9276393

NEMA

• WD-6

• Country of Origin: China
• RoHS Compliant: Yes

AC Horsepower Ratings

• At Rated Voltage: 3/4 Horsepower

Electrical Specifications

• Amperage: 15 A
• Current Interrupting: 2 kA
• Grounding: GFCI Ground Fault
• Pole: 2
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Trip Level: 5mA plus or minus 1mA
• Voltage: 120 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -35°C to 66°C

Material Specifications

• Blades/Contacts: Brass
• Body Material: Polycarbonate

Product Features

• Color: Black

Mechanical Specifications

• Cord Length: 25 FT.
• Cord Type: 14/3 SJTW
• Product ID: Ratings marked on device label

Standards and Certifications

• ANSI: C-73
• CSA C22.2: File LR-57811
• NEMA: WD-6
• NOM: 057
• UL 498: File E-48380
• UL 943: Class A (GFCI)
• Warranty: 2-Year Limited

Dimensional Drawing
