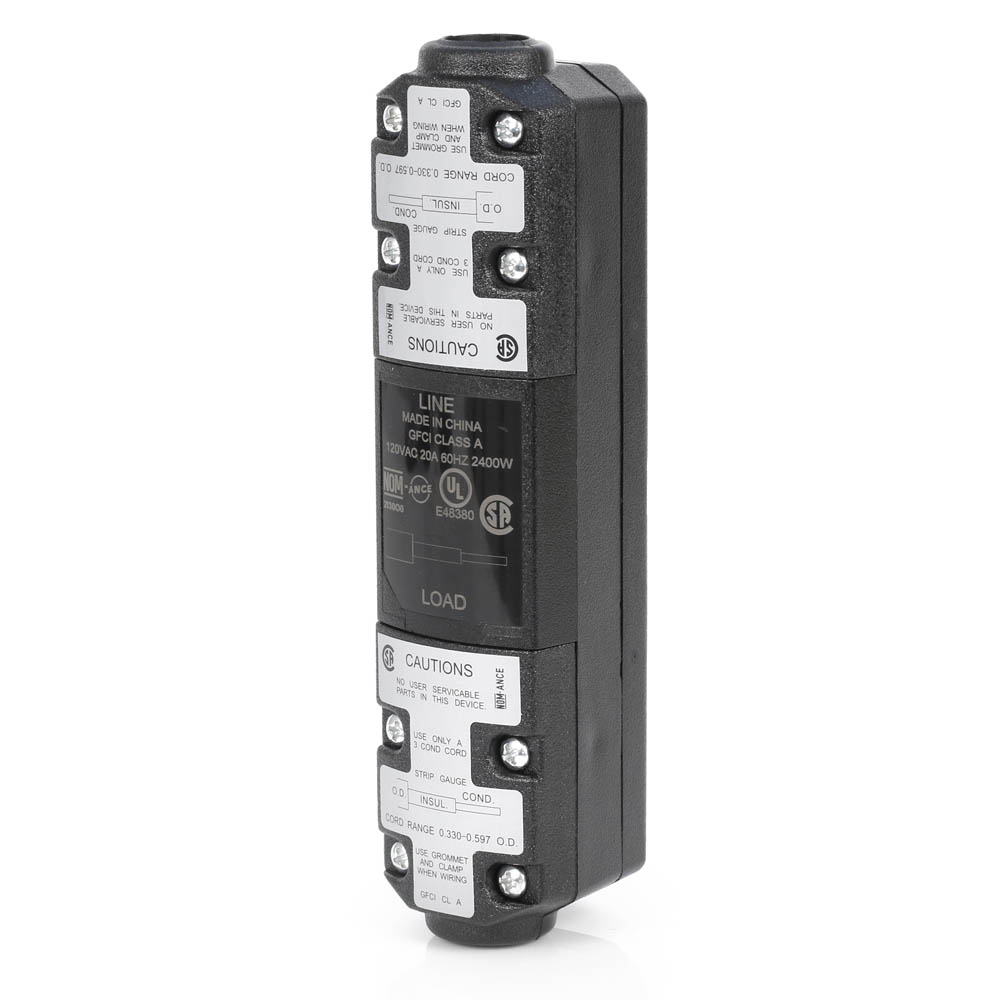

20 Amp GFCI In-Line User-Attachable GFCI, Automatic Reset

• Satisfies latest UL 943 self-test requirement
• Improve safety – protect critical personnel from electrical shocks
• Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
• Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
• Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations

NEMA

• WD-6

Patents

• MX265718
• MX344697
• US7436639
• US9276393

• Country of Origin: China
• RoHS Compliant: Yes

AC Horsepower Ratings

• At Rated Voltage: 3/4 Horsepower

Electrical Specifications

• Current Interrupting: 2 kA
• Trip Level: 5mA plus or minus 1mA

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -35°C to 66°C

Material Specifications

• Blades/Contacts: Brass
• Body Material: Polycarbonate

Mechanical Specifications

• Product ID: Ratings permanently marked on device

Product Features

• Amperage: 20 A
• Color: Black
• Feature: Automatic Reset GFCI
• Grounding: GFCI Ground Fault
• Pole: 2
• UL 943: Class A (GFCI)
• Voltage: 120 VAC
• Wire: 3

Standards and Certifications

• NEMA: WD-6
• ANSI: C-73
• CSA Standard: C22.2 No 144
• NOM: 057
