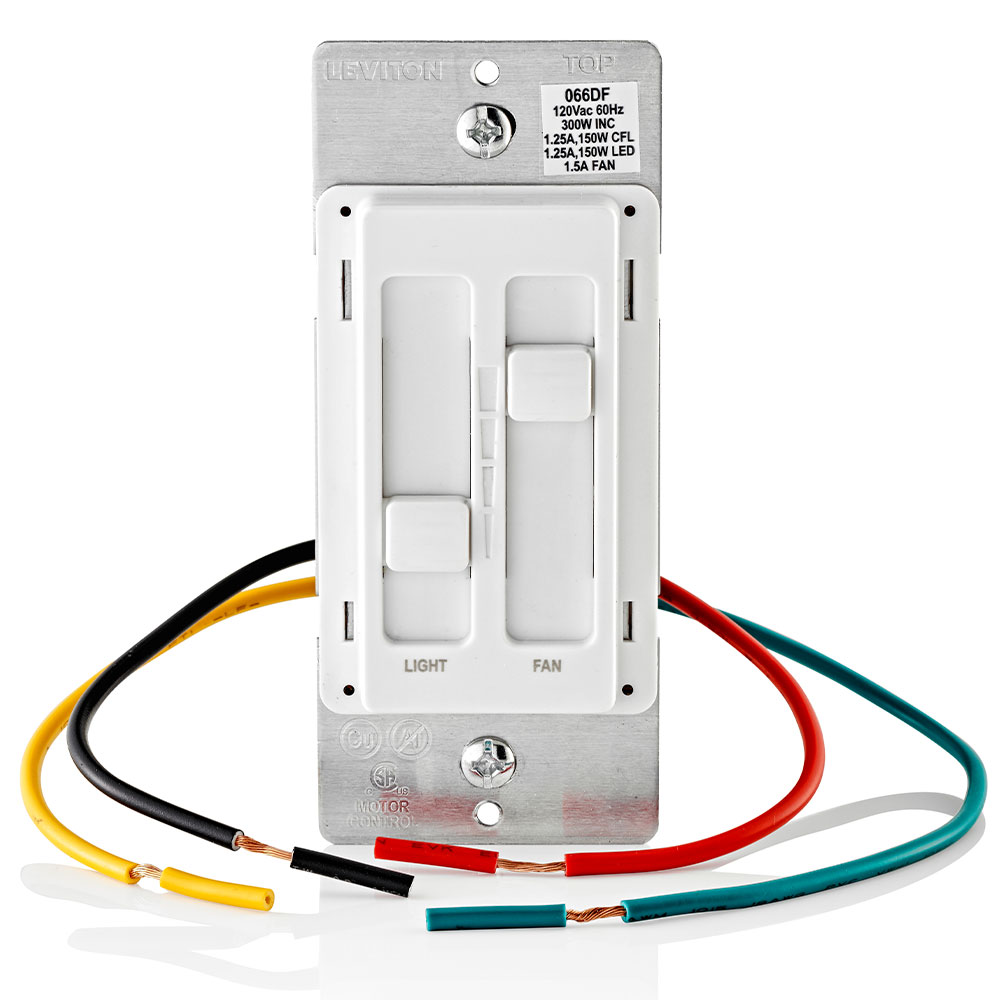

SureSlide Ceiling Fan Control and Dimmer Switch for LED, Halogen and Incandescent Bulbs

• CONVENIENT – Designed to work with ceiling fans with lights. Separate slide controls for fan speed and dimmer
• INNOVATIVE – Single pole dimmer designed specifically to dim LED bulbs. Also works with incandescent, halogen and CFL bulbs
• ADVANCED - Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
• UNIQUE - Special circuitry reduces fan motor noise at low speed. Choice of low, medium or high fan speeds
• Integrated linear full-range slide controls for easy, precise operation
• Separate controls for fan speed and light level selection
• Single pole dimmer designed for use with dimmable LED/CFL, Incandescent and Halogen lamps
• Adjustment dial to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
• Special circuitry reduces fan motor noise at low speeds
• Selection of low, medium or high fan speeds
• Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations
• Built-in radio/TV interference filter
• Compatible with Decora wallplates and Decora Plus screwless wallplates (sold separately)

Color Variations

• Ivory
• Light Almond
• White

• RoHS Compliant: Yes

Product Features

• Action: Slide-to-OFF
• Available Colors: Ivroy-I, White-W, Light Almond-T
• Brand: SureSlide
• California Title 24: Yes
• Color: White
• Frequency: 60 Hz
• Load Rating: 1.5A FAN, 300W INC, 150W LED/CFL
• Load Type: Fan, Incandescent, Dimmable LED, Dimmable CFL
• Ordering Notes: White
• Preset: Non-Preset
• Protection: Radio/TV Filter
• Standards and Certifications: cCSAus
• Style Name: SureSlide
• Switch Type: Single-Pole
• Type: Electro-Mechanical
• Voltage: 120 VAC
• Wallplate: Order Separately
• Warranty: 5-Year Limited
