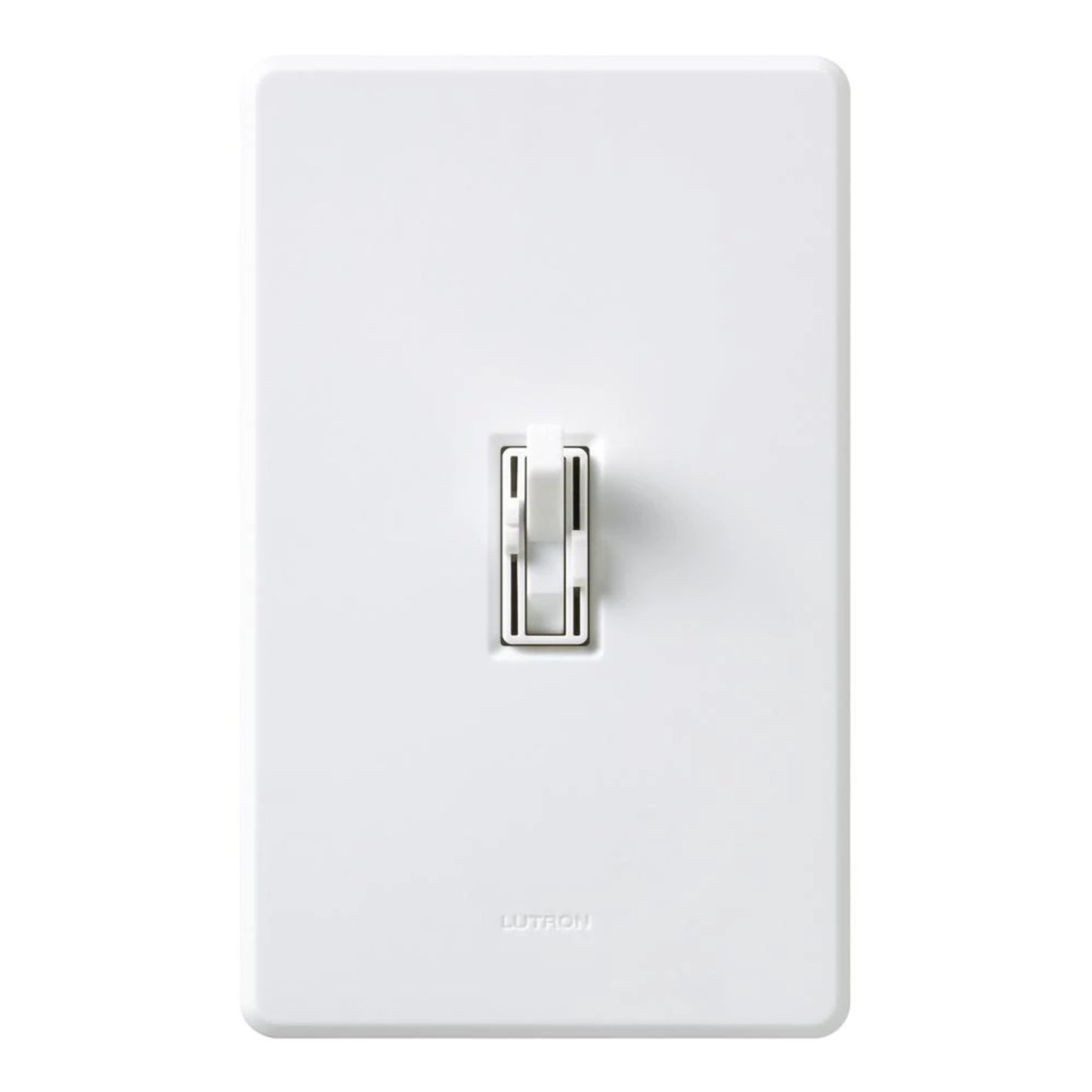

Ariadni Fan/Light Control, Fan control and dimmer, single-pole - quiet 3-speed, 120V/1.5A/300W

Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This combination control can be used to operate both light and fan from a single switch – no need for two separate controls for the light and the fan. The slider on the left adjusts your fan between 3 quiet speeds (Low/Medium/High), while the slider on the right adjusts your light level. The toggle switch only controls the lights ON/OFF, allowing you to turn on the fan without /having to turn on the lights. The Ariadni combination fan and light control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).

• Family/Collection: Ariadni
• Fan control (left) Use slide to turn fan on/off and adjust fan speed. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan). Dimmer (right) Toggle turns light on/off. Slide up to brighten, down to dim.
• Includes (1) Lutron Ariadni Dual Combination Fan/Light Control; Gloss Finish
• Rated for a single 1.5A 3-speed ceiling fan and 300W incandescent/halogen bulbs
• Product only works with incandescent and halogen bulbs
• No Neutral Required; 120V
• Single Pole Only; Wire lead installation
• Toggle turns light and fan on and off
• Left slider adjusts fan speeds; 3 quiet fan speeds for increased comfort (Low/Medium/High)
• Right slider adjusts light to your favorite level
• Available in 6 gloss colors
• Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)

• Actuator: Toggle switch
• Amperage Rating: 1.5 A fan
• Application: Lighting and Fan Control
• Brand Name: Lutron
• Connection: Wire Leads
• Contact Configuration: N-O
• Contact Rating: 1.5 A fan
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.60 x 2.86
• Special Features: Fan control (left) Use slide to turn fan on/off and adjust fan speed. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan). Dimmer (right) Toggle turns light on/off. Slide up to brighten, down to dim.
• Sub Brand: Ariadni
• Type: Fan/light control
• Voltage Rating: 120
• Wattage: 300 W light
