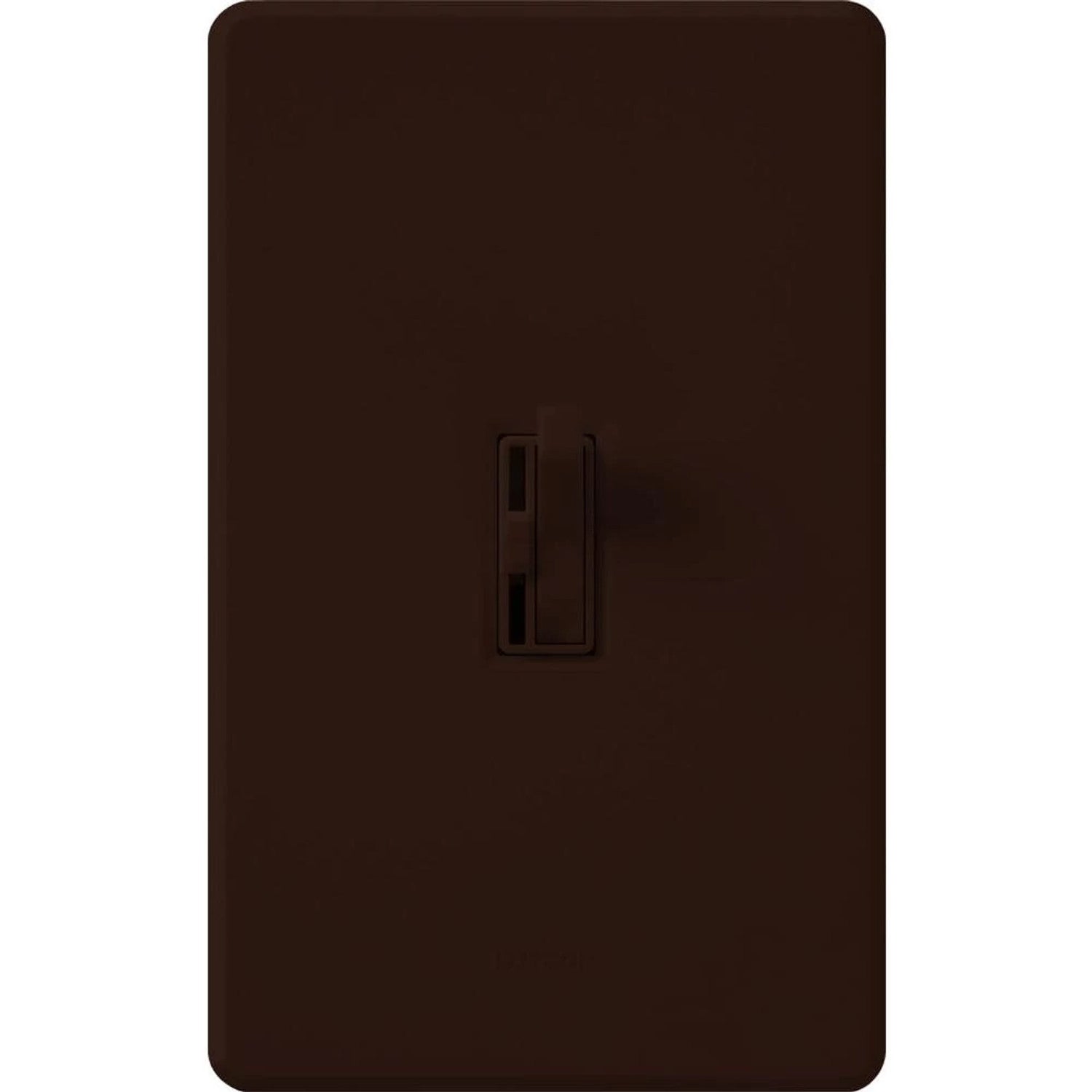

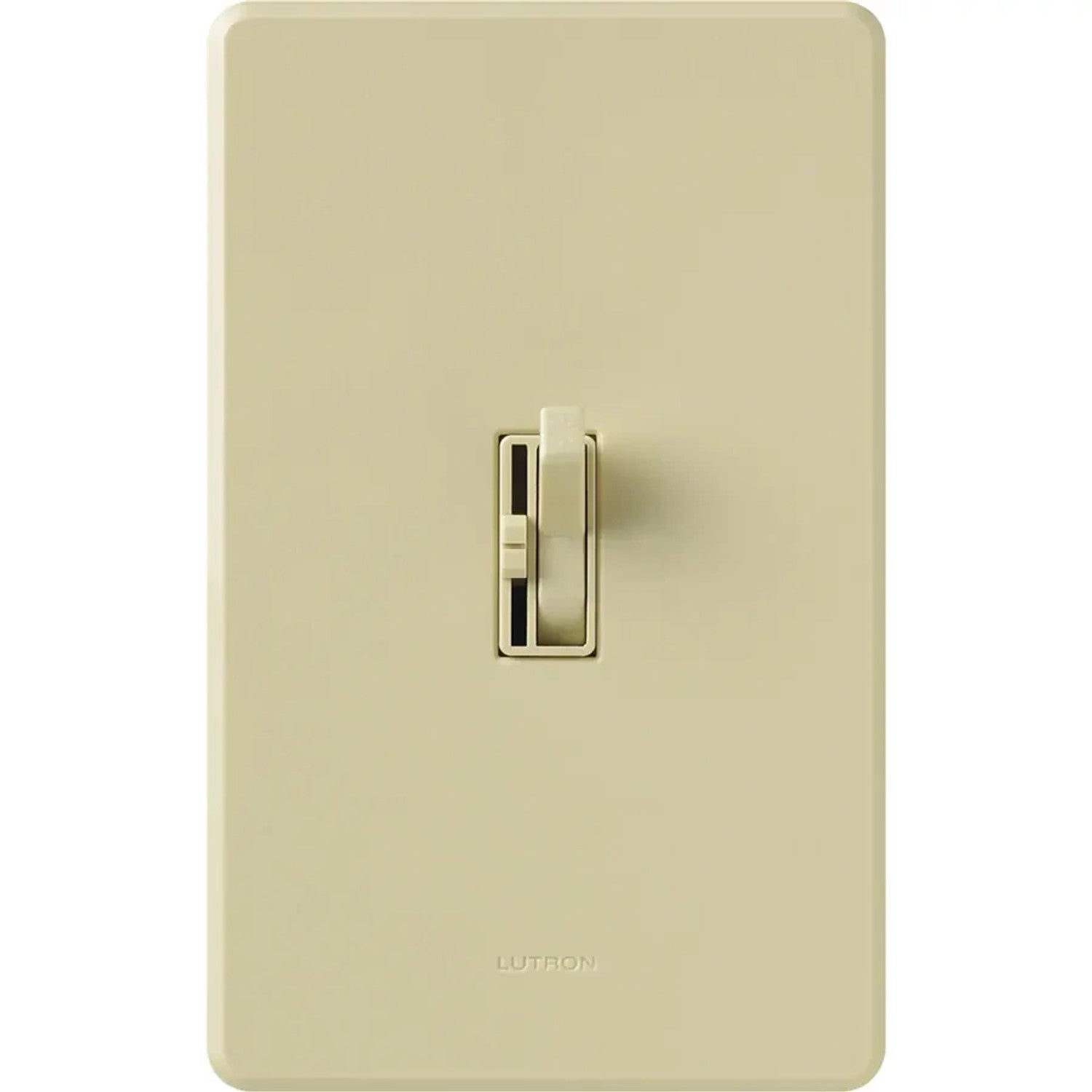

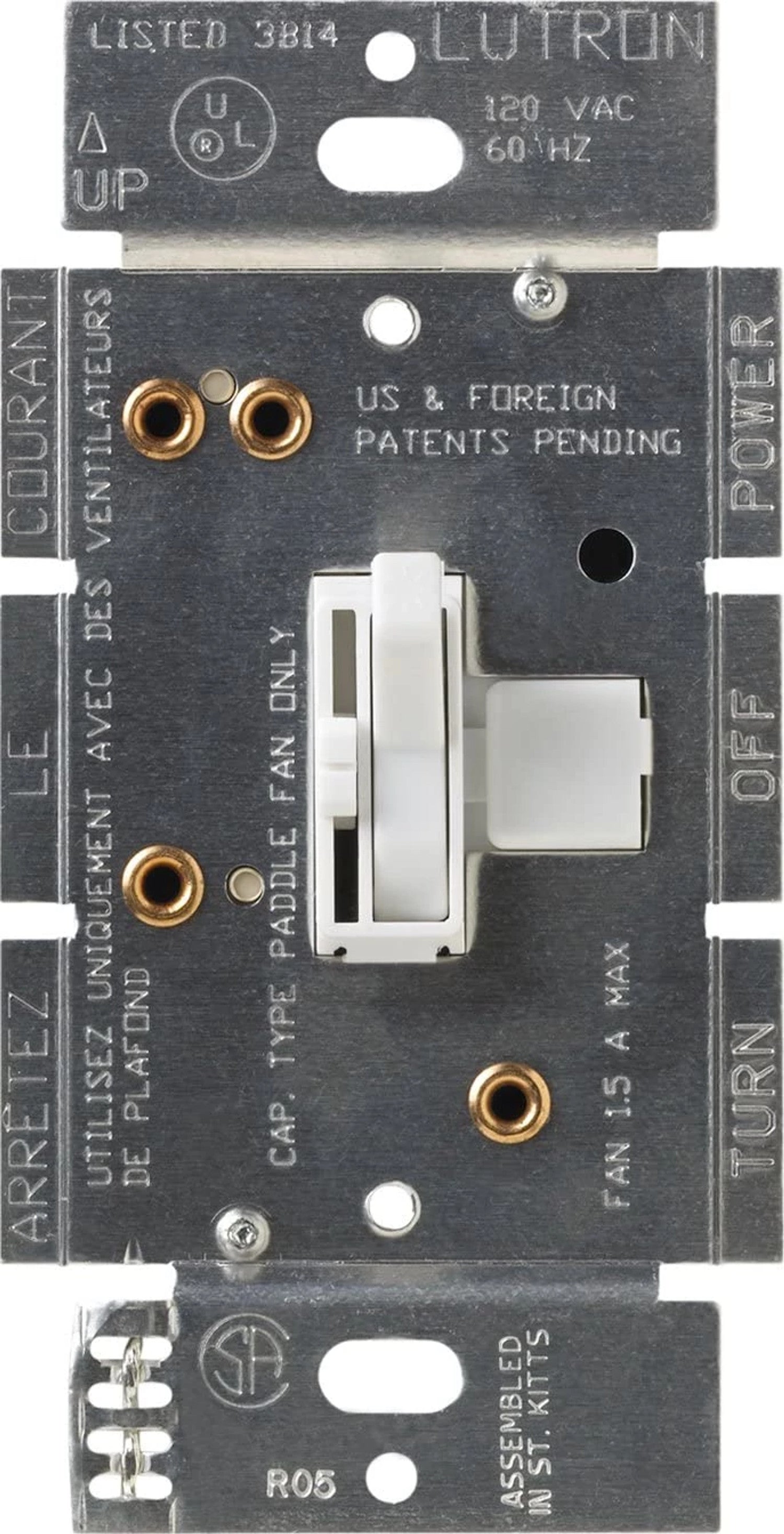

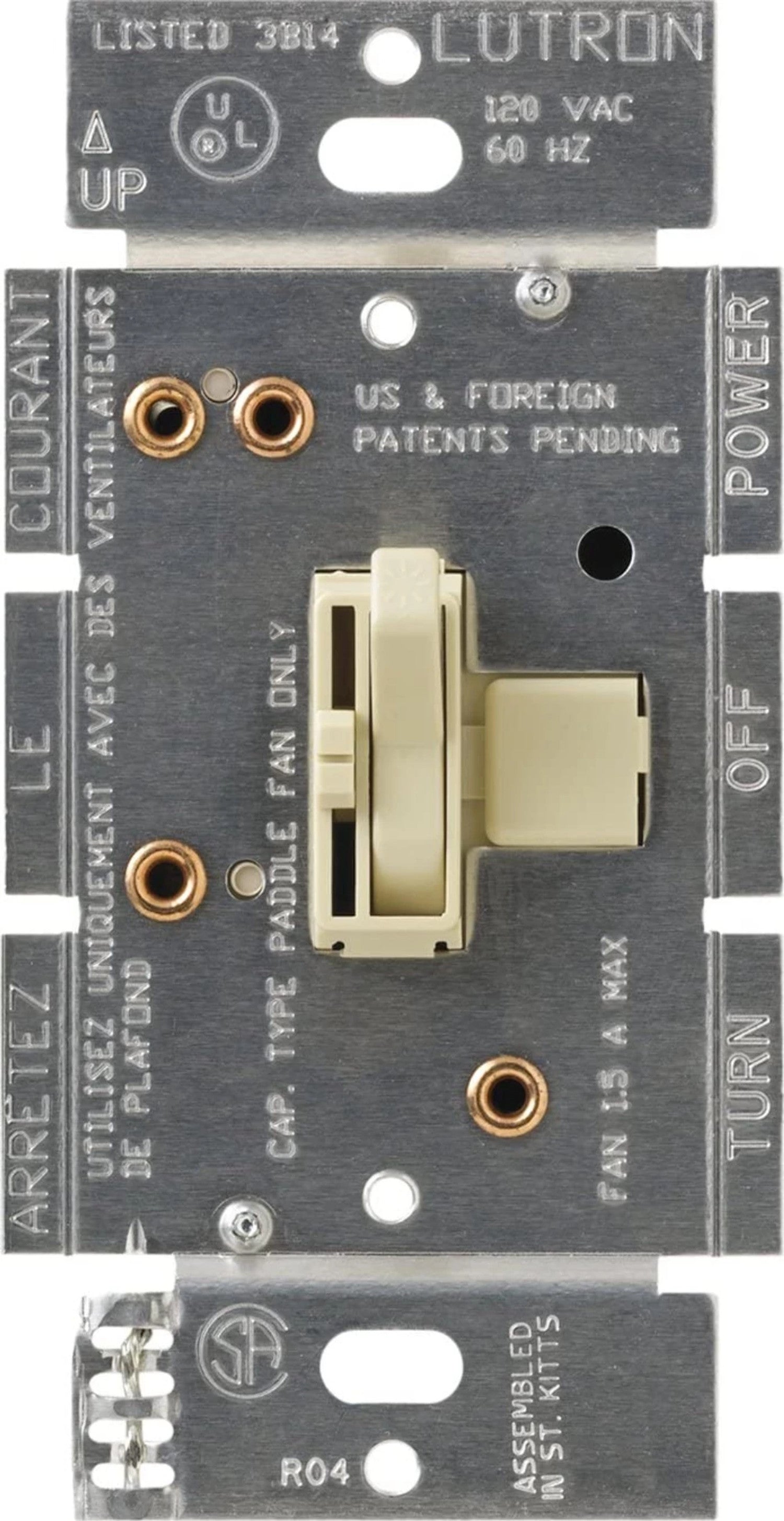

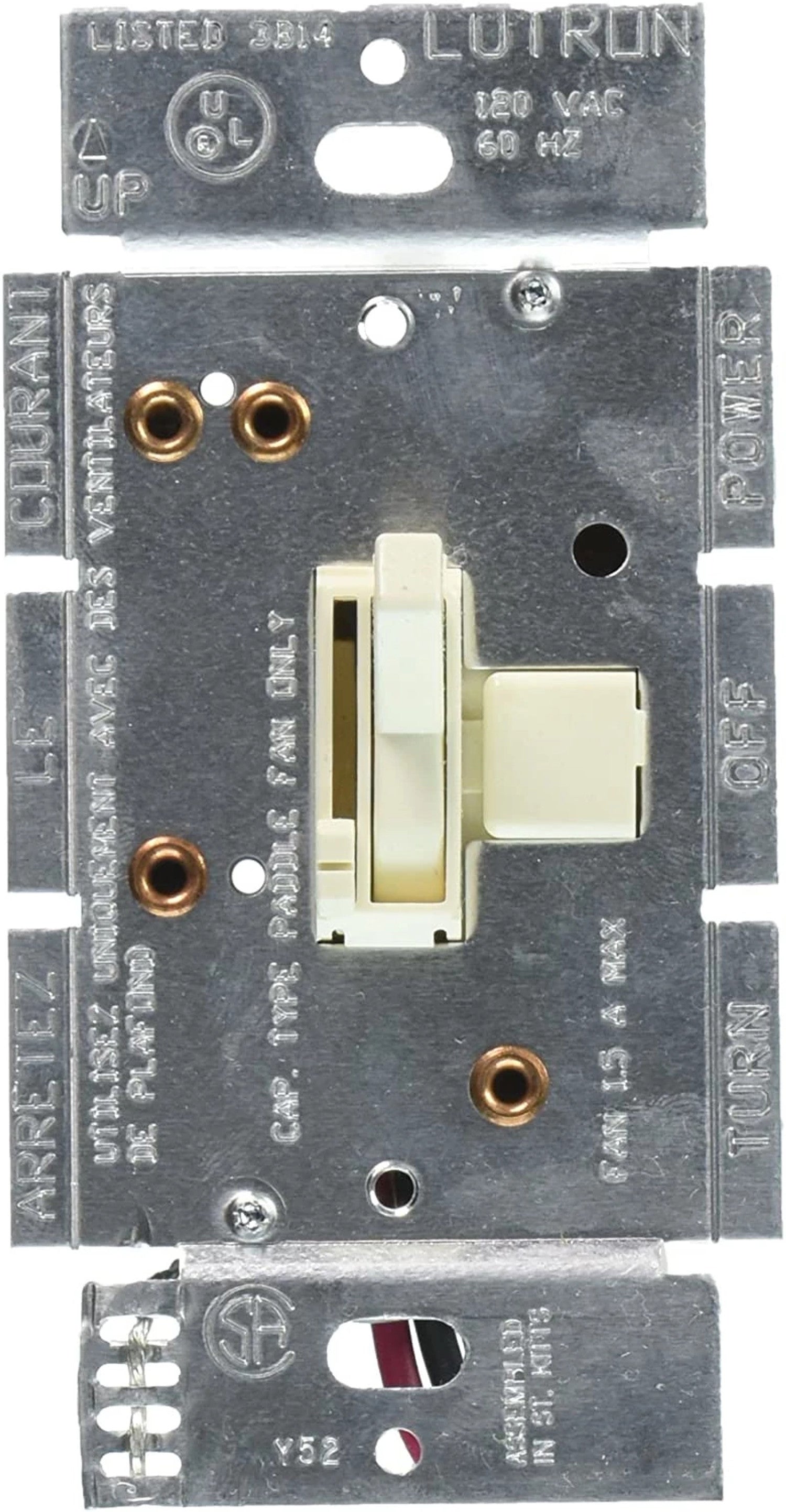

Ariadni Fan Control, 3-way/single-pole, quiet 3-speed, 120V/1.5A

Lutron Ariadni fan controls are designed to replace or match your traditional toggle style switches. This control can be used to operate a single 3-speed ceiling fan. This fan control features a smooth, linear slider to adjust the fan’s speed and a toggle switch that turns the fan ON/OFF. Use the slider to select between 3-speeds (Low/Med/High) for a favorite preset level. The Ariadni fan control fits into a traditional wall plate opening and can also work with your existing multi-gang wall plates. Available in 6 gloss colors. Pairs perfectly with Lutron Fassada wall plates for consistent color matching (sold separately).

• Family/Collection: Ariadni
• Controls 1.5 A fan. Toggle turns fan on/off. Slide up to increase speed, down to decrease. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
• Includes (1) Lutron Ariadni 3-Speed Fan Control; Gloss Finish
• Rated for 1.5A 3-speed Ceiling Paddle Fans
• For use with (1) ceiling paddle fan per control; not compatible with fans with proprietary remotes
• No Neutral Required; 120V
• Single Pole or 3-Way compatible
• Wire lead installation
• Toggle turns fan ON/OFF
• Slider adjusts preset fan speeds; Low, Medium, High
• Available in 6 gloss colors
• Pairs perfectly with Lutron Fassada wall plates for consistent color matching (wall plates are sold separately)

• Actuator: Toggle switch
• Amperage Rating: 1.5
• Application: Fan Control
• Brand Name: Lutron
• Color: Light Almond
• Connection: Wire leads
• Contact Configuration: N-O
• Contact Rating: 1.5
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.60 x 2.86
• Special Features: Controls 1.5 A fan. Toggle turns fan on/off. Slide up to increase speed, down to decrease. 3 quiet fan speeds designed to prevent motor hum (for use with one ceiling paddle fan).
• Standard: UL, cUL
• Sub Brand: Ariadni
• Type: Fan Control, 3-way/single-pole
• Voltage Rating: 120
• Wattage: 180
