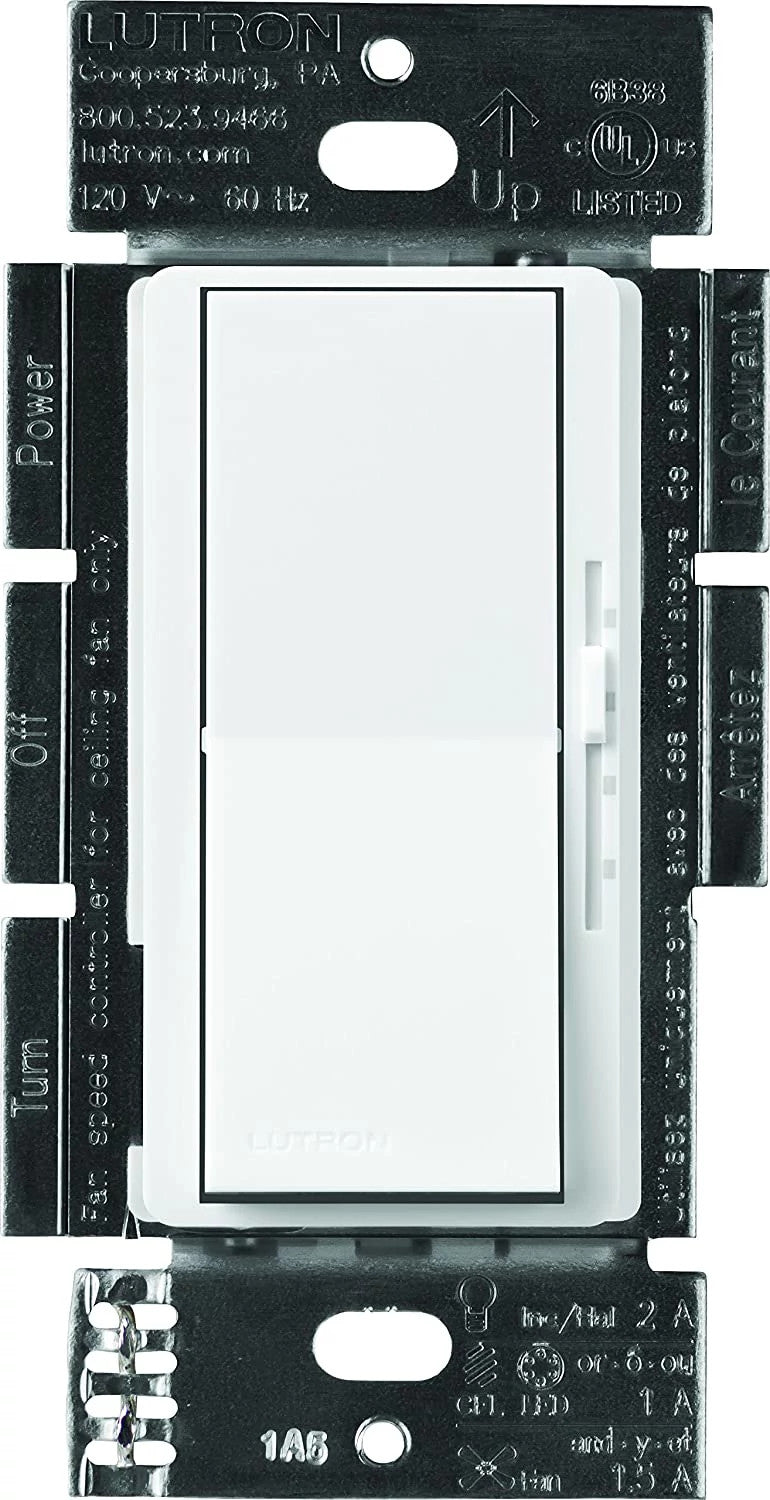

Lutron Diva 3-Speed Fan Control and Light Switch, Single-Pole/3-Way, 1.5A Fan/1A LED, Clamshell Packaging

The Lutron Diva 3-Speed Fan Switch helps achieve the ideal comfort level for any home by controlling a single fan up to 1.5 Amps. The intuitive rocker switch turns the fan on/off to a preset and the linear slider adjusts between 3 speeds (Low, Medium and, High). Install with Lutron Claro Switches in 3-way applications. Coordinating Claro wall plates and 3-way switches sold separately. Available in 20+ colors to consistently match any Lutron device.

• Family/Collection: Diva
• Fan control (top) Slide up to on/increase speed, down to decrease/off. 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan). Switch (bottom) Rocker switch turns light on/off.
• Includes (1) Diva Light/Fan switch; Gloss finish
• No Neutral Required; 120V
• Rated up to 1.5 Amp of indoor ceiling paddle fans and 120-Watt of LED/CFL's or 240-Watt of incandescent/halogen bulbs
• One (1) Ceiling Paddle Fan Only Per Fan Control; Not Compatible With Fans With Proprietary Remotes Or Dc Motors
• Single-Pole only
• Wire-lead connections
• Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
• Provides 3-quiet fan speeds for increased comfort
• Fits large designer-style openings; Available in in 20+ colors
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)

• Actuator: Rocker switch
• Amperage Rating: 1.5 A fan
• Application: Lighting and Fan Control
• Brand Name: Lutron
• Connection: Wire Leads
• Contact Configuration: N-O
• Contact Rating: 1.5
• Mounting: Wallbox
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 4.69 x 2.94
• Special Features: Fan control (top) Slide up to on/increase speed, down to decrease/off. 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan). Switch (bottom) Rocker switch turns light on/off.
• Standard: UL, cUL, NOM
• Sub Brand: Diva
• Type: Fan/light control, 3-way/single-pole
• Voltage Rating: 120
• Wattage: 120/240 W light
