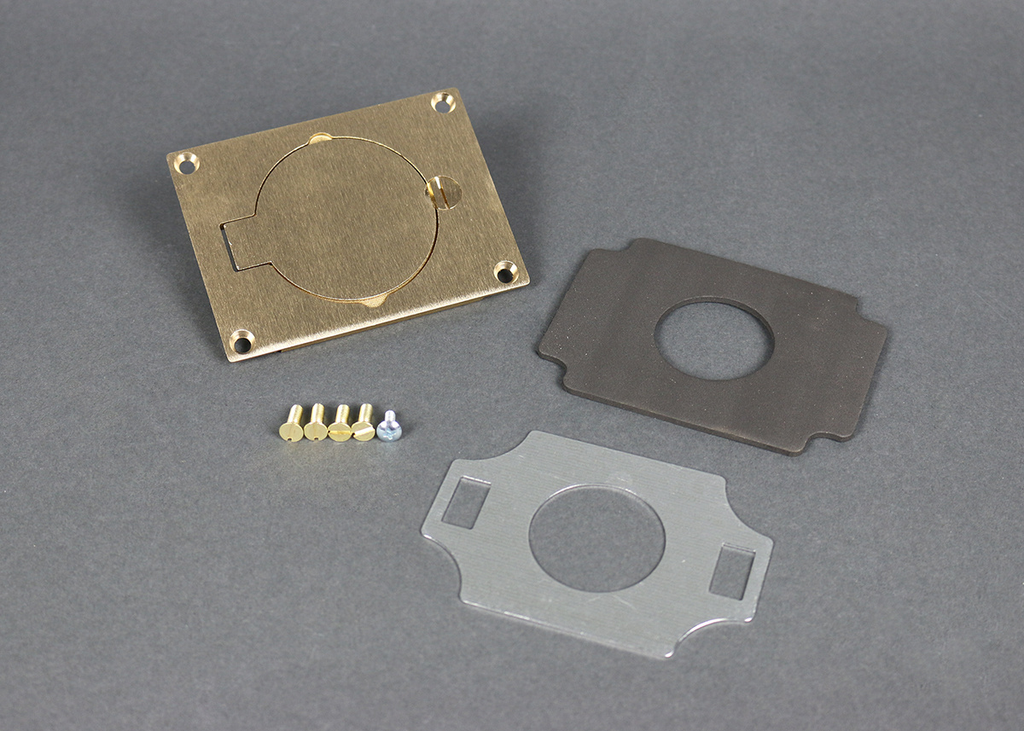

Single Locking Cover Plate

Certifications

• cULus Listed
• RoHS Compliant

• Brass single locking receptacle cover plate. Single flip lid cover for 20A or 30A single locking receptacles. Device opening is 2 5/8'' (67mm). For use with maximum female locking device of 1.58'' diameter, and maximum male plug face of 2.25'' diameter. NOTE: Brass covers and flanges are not interchangeable with aluminum or nonmetallic covers and flanges. Nonmetallic covers are interchangeable with aluminum flanges."

• Depth: 4.13 in
• Height: 0.25 in
• Type: Floor Box
• Width: 3.13 in
• Construction: Assembled
• Application Sector: Commercial
• Country of Origin: China
• Cable Entry: Through Floor in
• Special Features: Available in one-, two-, and three-gang configurations. Removable dividers increase capacity. More configurations to support multiservice applications. Triple service boxes. Accommodates power, communication and/or audio/video devices which reduces the need for multiple boxes.
• Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. Meets Article 314.27(C) of NEC.

• Product Line: Wiremold
