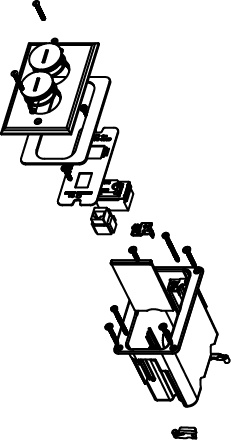

WMFB1SRKS1N Series Single-Gang Floor Box Assembly

• Includes single-gang box, divider, one 15A, 125V receptacle, one opening for communication device, and nickel cover with two screw plugs. For hole cut dimensions, see installation instructions sheet. Box Dimensions: 2 1/8'' W x 3 3/4'' L x 3 7/8'' D (54mm W x 95mm L x 98mm D) Device Plate: 3 1/8'' W x 4 15/16'' L (79mm W x 125mm L)."

Certifications

• RoHS Compliant
• cULus Listed

• Product Line: Wiremold

• Country of Origin: China
• Special Features: Single- and dual-gang boxes. Provides a wide variety of either single- or dual-service capabilities to deliver power and communication services to the point-of use.
• Type: Floor Box
• Construction: Not Assembled
• Cable Entry: Through Floor in
• Application Sector: Residential/Commercial
• Standard: cULus Listed Nonmetallic Outlet Boxes: File E143222 Guide QCMZ. Meets Article 314.27(C) of NEC.
