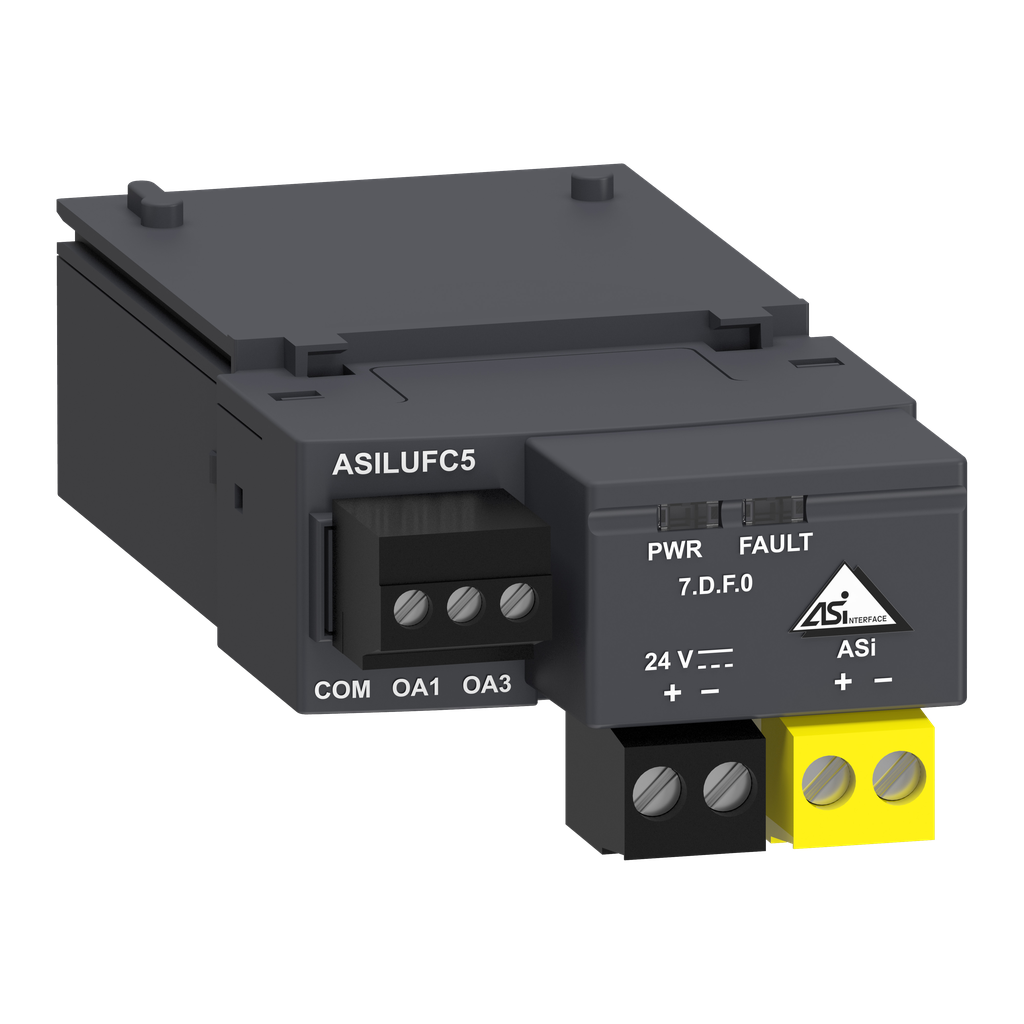

AS-Interface communication module, TeSys Ultra, 24VDC

• Range Compatibility: TeSys (TeSys Ultra) LUB non reversing power base || TeSys (TeSys Ultra) LU2B reversing power base
• Product Or Component Type: communication module
• Product Compatibility: LUCA || LUCL || LUCD || LUCM || LUCC || LUCB
• Device Application: communication
• Device Short Name: ASILUF
• Range: TeSys

Contractual warranty

• Warranty: 18 months

Complementary

• Addressing: 31 slaves
• Function Available: AS-Interface communication module
• Communication Port Protocol: Profibus DP
• Mounting Mode: plug-in
• Switching Current Capacity: 500 mA 24 V against short-circuits solid state
• Bus Type: AS-Interface
• Local Signalling: 2 LEDs front panel
• Current Consumption: 200 mA 24 V output || 25 mA normal operation || 30 mA fault operation
• Connection Pitch: 3.81 mm output || 5.08 mm input
• Tightening Torque: input 0.5-0.6 N.m 3.5 mm || output 0.2-0.25 N.m 2.5 mm
• Connections - Terminals: input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end || input screw clamp terminals 1 0.2-1.5 mm²rigid without cable end || input screw clamp terminals 1 0.25-1.5 mm²flexible with cable end || input screw clamp terminals 2 0.2-1 mm²flexible without cable end || input screw clamp terminals 2 0.2-1 mm²rigid without cable end || input screw clamp terminals 2 0.25-1 mm²flexible with cable end || input screw clamp terminals 2 0.5-1 mm²flexible with cable end || output screw clamp terminals 1 0.14-1 mm²flexible without cable end || output screw clamp terminals 1 0.14-1 mm²rigid without cable end || output screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || output screw clamp terminals 1 0.25-1 mm²flexible with cable end || output screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || output screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || output screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || output screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
• Mounting Location: front side

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Ip Degree Of Protection: IP20 conforming to IEC 60529

Catalog

CAD

User guide

Technical Drawing

Instruction sheet
