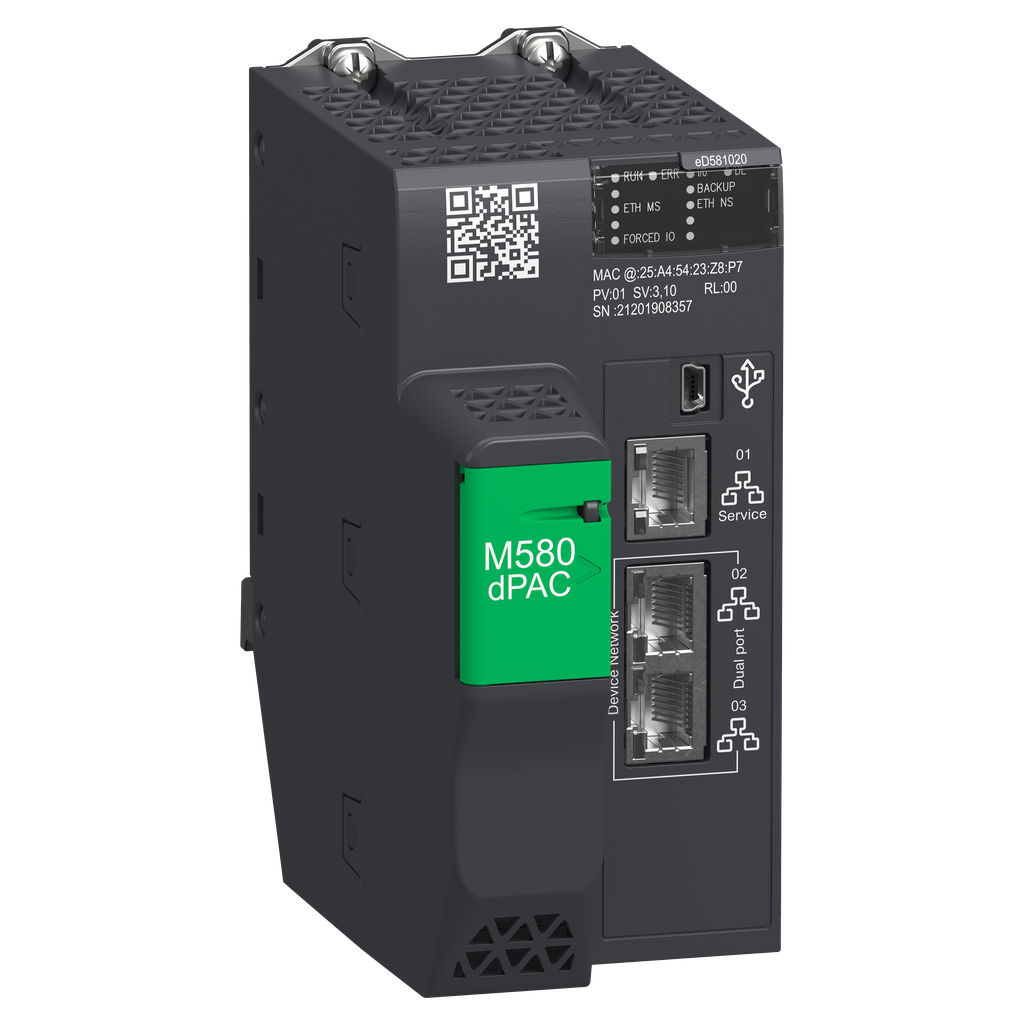

dPAC module, Modicon M580, standard

• Range Of Product: Modicon M580
• Product Or Component Type: processor module

Complementary

• Mtbf Reliability: 600000 H
• Number Of Distributed Equipment: 64
• Number Of Racks: 4
• Marking: CE
• Current Consumption: 295 mA 24 V DC
• Integrated Connection Type: 1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network
• Discrete I/O Processor Capacity: 1024 I/O
• Analogue I/O Processor Capacity: 64 I/O
• Memory Description: integrated RAM, 64 MB program and data

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1312016EN_V3.pdf
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1312016EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Status Led: 1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) I/O values overrided by user (FORCED IO) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status)
• Standards: EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || IACS E10
• Product Certifications: CE || UL || CSA || EAC
• Supply: internal power supply via rack
• Shock Resistance: 30 gn
• Environmental Characteristic: hazardous location class I division 2
• Vibration Resistance: 3 gn
• Net Weight: 0.849 kg
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2006/42/EC - machinery
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 5-95 % 55-55 °C without condensation
• Operating Altitude: 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Ip Degree Of Protection: IP20
