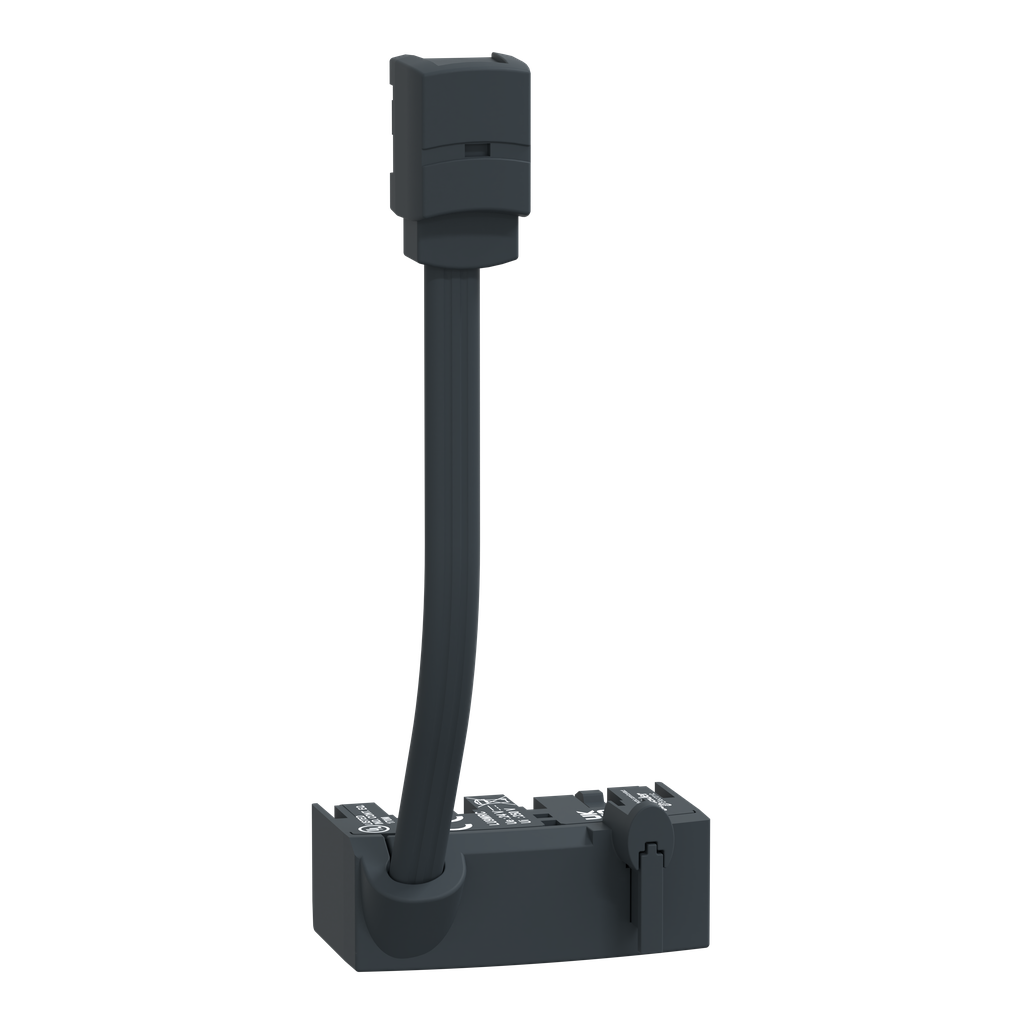

Prewired coil connection to communication module - for motor starter TeSys Ultra

Prewired coil connection to communication module - for motor starter TeSys Ultra

Part Number: LU9MRC

UPC:

Your Price:
$50.55 ea
$50.55 ea
Sold out

Available to Order
View full details

Product Description

  • Product Or Component Type: pre-wired coil connection
  • Range: TeSys
  • Product Compatibility: LU2B..
  • Device Short Name: LU9

Contractual warranty

  • Warranty: 18 months

Complementary

  • Net Weight: 0.03 kg
  • Bus Type: Modbus || AS-Interface || parallel

Offer Sustainability

  • Rohs Exemption Information: Yes
  • Mercury Free: Yes
  • Environmental Disclosure: ENVPEP111254EN
  • Sustainable Offer Status: Green Premium product
  • Toxic Heavy Metal Free: Yes
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Reach Free Of Svhc: Yes
  • Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
  • Eu Rohs Directive: Compliant
