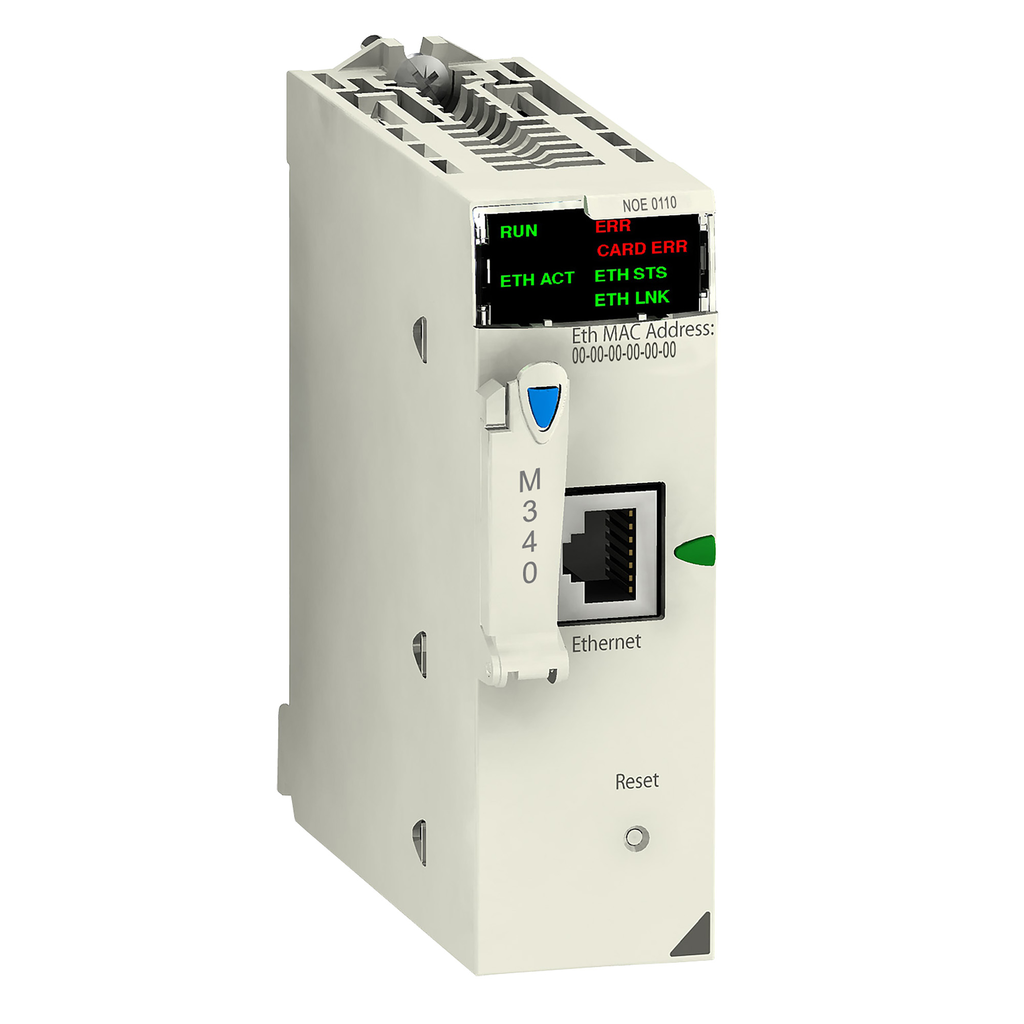

Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

• Range Of Product: Modicon M340 automation platform
• Product Or Component Type: Ethernet TCP/IP network module
• Integrated Connection Type: Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
• Protective Treatment: TC
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Supply: internal power supply via rack
• Current Consumption: 90 mA 24 V DC
• Marking: CE
• Net Weight: 0.2 kg
• Control Type: RESET push-button cold restart
• Communication Service: bandwidth management || FDR server || Rack Viewer || SNMP network administrator || Global Data || I/O scanning || Modbus TCP messaging || web server configurable || Data Editor (via PC, pocket PC or PDA terminal) || SOAP XML Web service (server)
• Local Signalling: for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for data rate (ETH 100) 1 LED (red) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red)
• Module Format: standard
• Port Ethernet: 10BASE-T/100BASE-TX
• Memory Description: supplied Flash memory card (BMXRWSC016M) || internal RAM 16000 kB
• Memory Usage: user web page size internal RAM || activating the standard web server supplied Flash memory card (BMXRWSC016M) || application saving supplied Flash memory card (BMXRWSC016M)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP070204EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI0702004EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity: 10-95 % without condensation
• Ip Degree Of Protection: IP20
