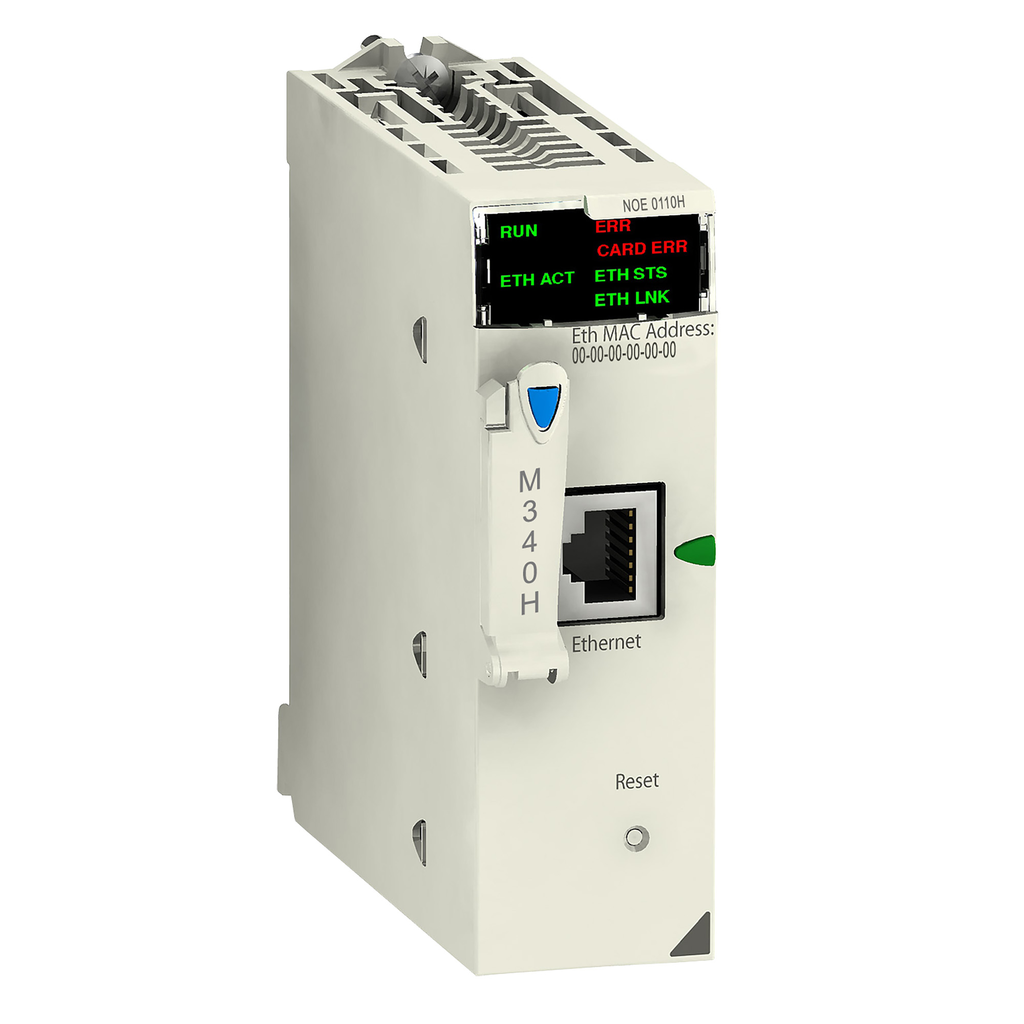

Ethernet TCP/IP network module, Modicon M340 automation platform, transparent ready class C30 server

• Integrated Connection Type: Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
• Range Of Product: Modicon M340 automation platform
• Product Specific Application: for severe environments
• Product Or Component Type: Ethernet TCP/IP network module
• Protective Treatment: conformal coating
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Communication Service: bandwidth management || FDR server || Rack Viewer || SNMP network administrator || Global Data || I/O scanning || Modbus TCP messaging || web server configurable || Data Editor (via PC, pocket PC or PDA terminal) || SOAP XML Web service (server)
• Local Signalling: for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for data rate (ETH 100) 1 LED (red) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red)
• Supply: internal power supply via rack
• Current Consumption: 90 mA 24 V DC
• Module Format: standard
• Port Ethernet: 10BASE-T/100BASE-TX
• Marking: CE
• Net Weight: 0.2 kg
• Memory Description: supplied Flash memory card (BMXRWSC016M) || internal RAM 16000 kB
• Control Type: RESET push-button cold restart
• Memory Usage: user web page size internal RAM || activating the standard web server supplied Flash memory card (BMXRWSC016M) || application saving supplied Flash memory card (BMXRWSC016M)

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI0702004EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP070204EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Ambient Air Temperature For Operation: -25-70 °C
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
• Standards: EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
• Relative Humidity: 10-95 % without condensation
• Product Certifications: CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
• Environmental Characteristic: gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
• Ip Degree Of Protection: IP20
