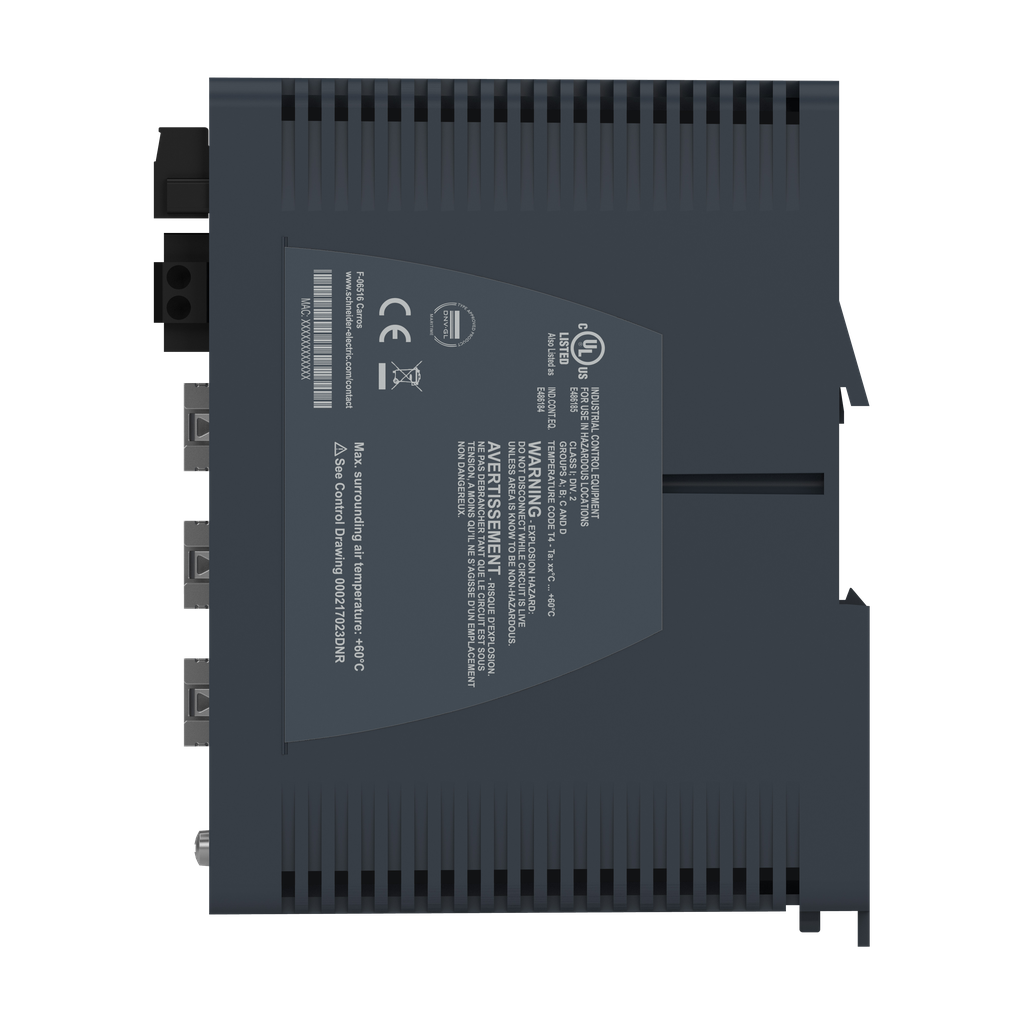

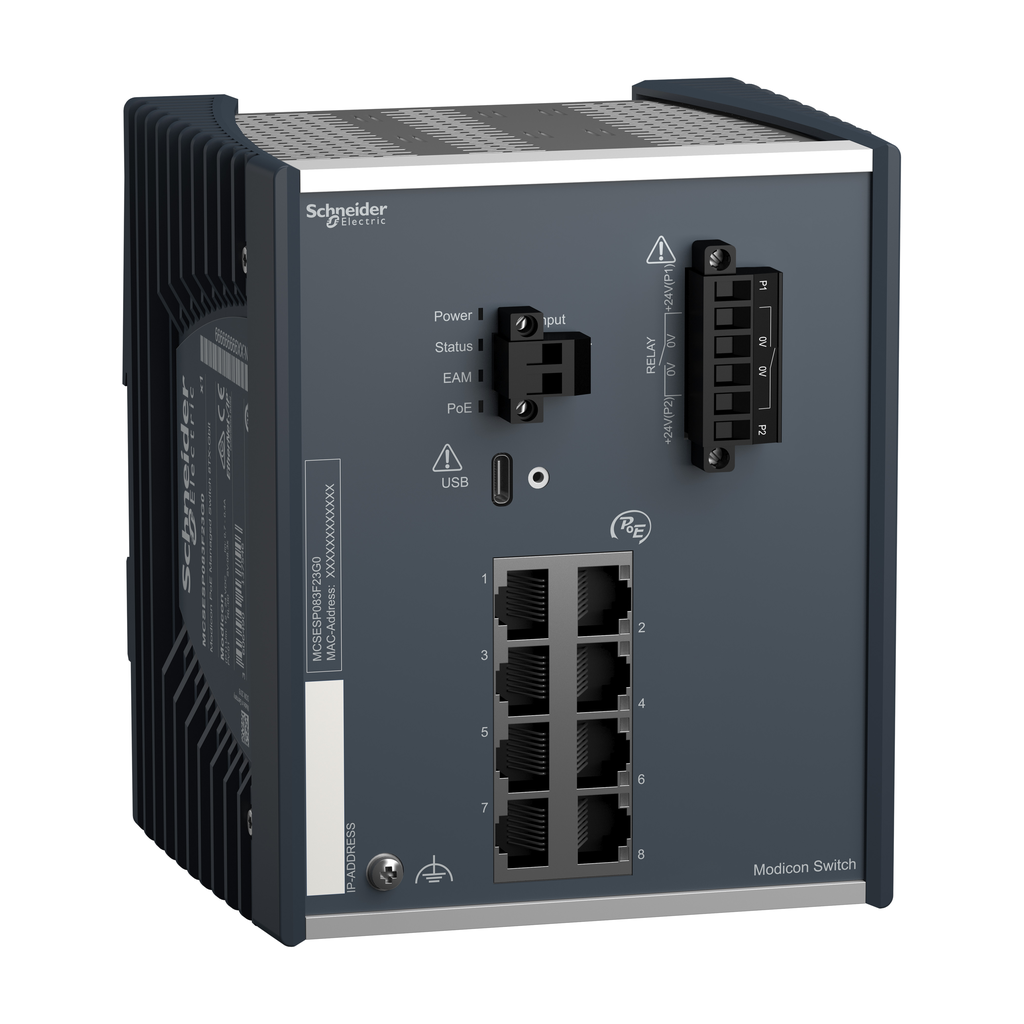

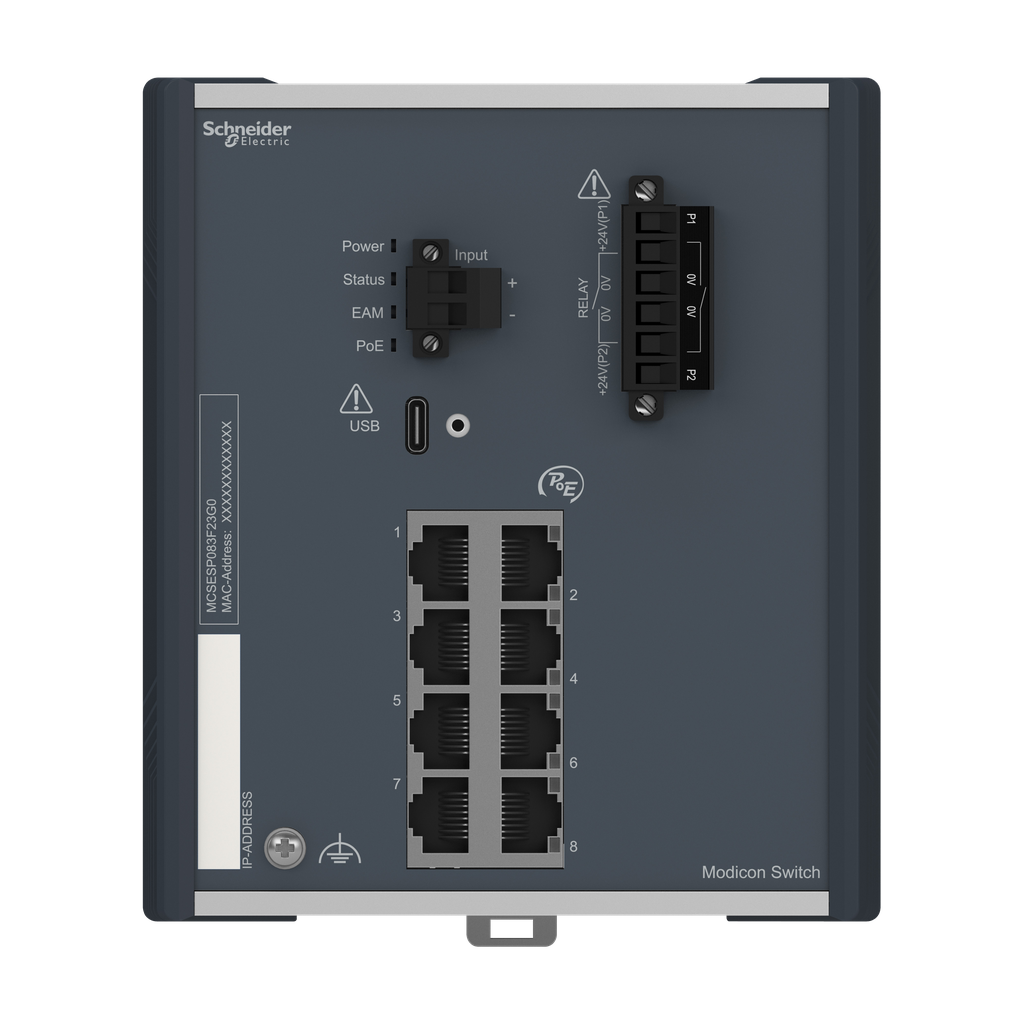

Modicon PoE (Power over Ethernet) Managed Switch - 8 Gigabit ports for copper

• Maximum Number Of Switches In Cascade: unlimited
• Range Of Product: Modicon
• Port Ethernet: 10/100/1000 BASE-TX - 8 copper cable
• Product Or Component Type: Ethernet TCP/IP managed switch
• Communication Port Protocol: Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP
• Cybersecurity: port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Cable Distance Between Devices: 100 m copper (Gbit)
• [Us] Rated Supply Voltage: 24 V
• Height: 144.2 mm
• Alarm Function: power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed
• Integrated Connection Type: shielded RJ45 copper (Gbit)
• Transmission Support Medium: twisted shielded pairs cable CAT 5E copper (Gbit)

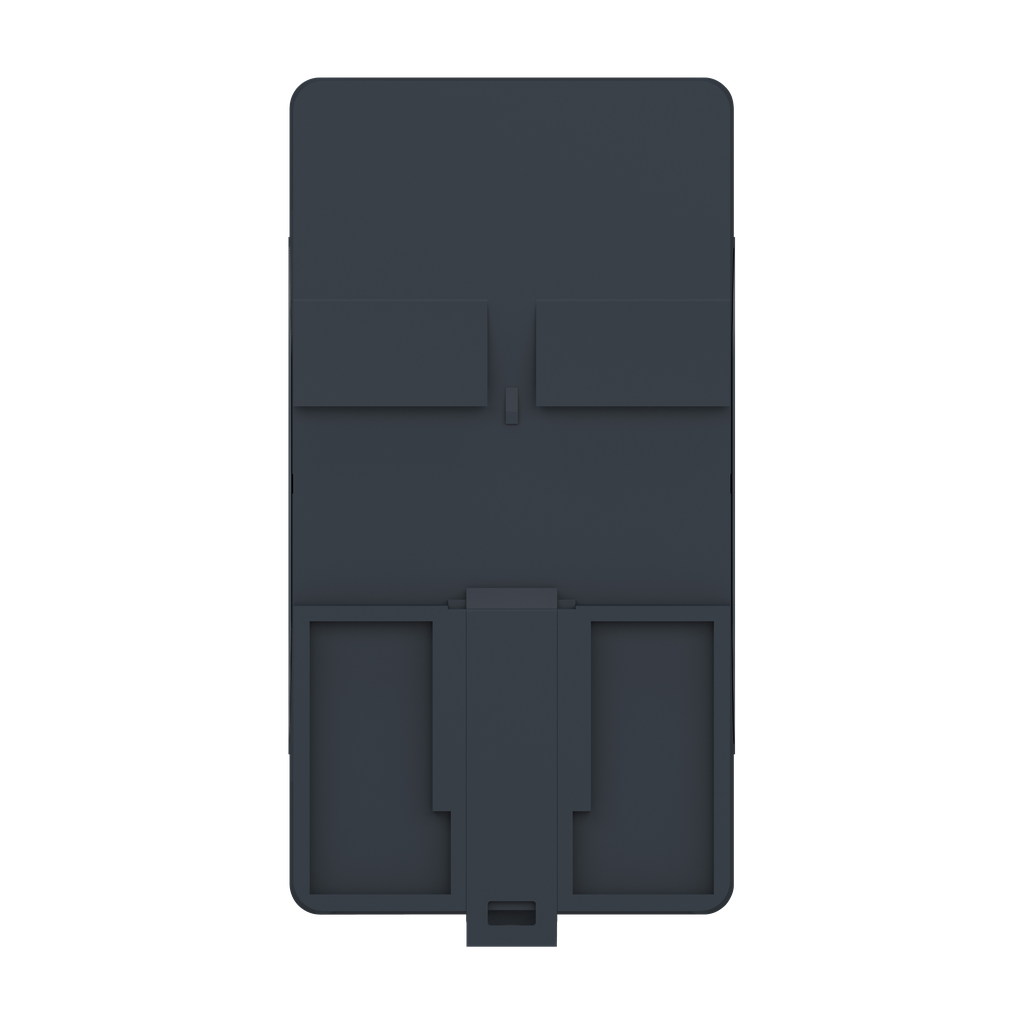

• Mounting Support: 35 mm symmetrical DIN rail
• Power Consumption In W: 106 W
• Communication Service: TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection
• Marking: CE || cULus || RCM
• Alarm Output: 1 voltfree contact 1 A
• Redundancy: HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP
• Net Weight: 1.4 kg
• Electrical Connection: removable connector 6 ways power supply
• Maximum Number Of Switches In A Ring: 50
• Function Available: security status || alarms (Traps) || system information || report
• Ethernet Service: configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
• Ethernet Cabling System: TF switches
• Supply Voltage Limits: 18-30 V DC SELV
• Local Signalling: for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for PoE power supply 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)
• Diagnostics Run Time: signal contact || self test || MAC notification
• Width: 122.4 mm
• Depth: 117.15 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2003018EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI2003018EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Standards: UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1
• Product Certifications: CE || UL || RCM || DNV || ATEX
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity: 1-95 % non-condensing
• Ip Degree Of Protection: IP30
