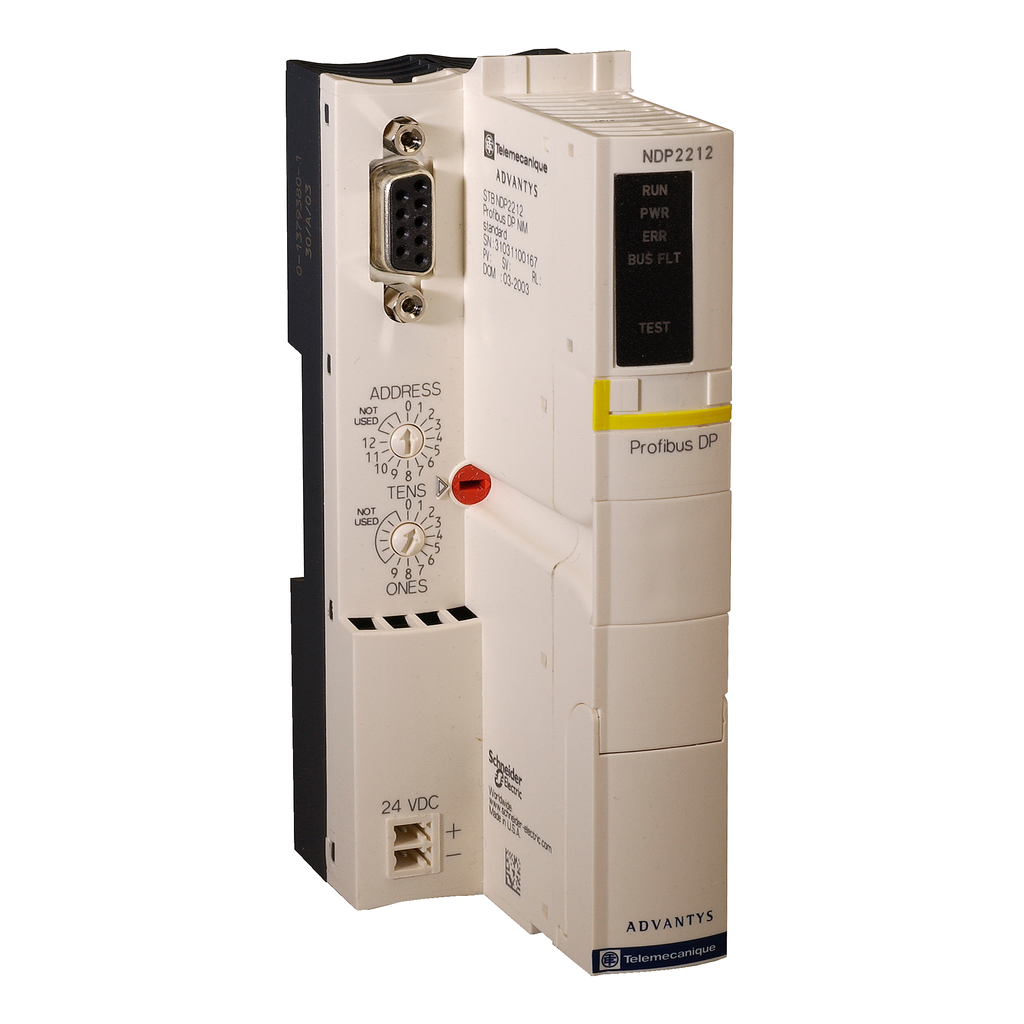

standard Network Interface Module STB - Profibus DP - 9.6 kbit/s

• Range Of Product: Modicon STB distributed I/O solution
• Number Of Segments: 1 primary, maximum 6 extensions
• Transmission Rate: 12 Mbit/s 0-800 m with 3 repeaters || 9.6 kbit/s 0-4800 m with 3 repeaters || 12 Mbit/s 0-200 m || 9.6 kbit/s 0-1200 m
• Product Or Component Type: standard Network Interface Module
• Structure Type: industrial field bus DP V.0
• Number Of Slave: 125
• Integrated Connection Type: Profibus DP DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair bus) || Profibus DP DIN 19245 part 1 and 3 HE-13 RS232 port) || Profibus DP DIN 19245 part 1 and 3 8-way female RS232 port)

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 40 mm
• Number Of Addressable I/O Module: 0-32 per island
• Status Led: 1 LED (Green) BUSFLT || 1 LED (Green) island state (RUN) || 1 LED (Green) power supply (PWR) || 1 LED (Red) module error (ERR) || 1 LED (Yellow) test mode
• Output Voltage: 5.25 V DC +/- 0.21 %)logic bus
• Communication Service: diagnostics || read/write DP slave I/O data || configuration control || slave configuration
• Marking: CE
• Power Supply Type: SELV
• Input Current: 430 mA supply circuit
• Supply Voltage Limits: 19.2-30 V
• Maximum Supply Current: 700 A
• Width: 128.3 mm
• Overvoltage Category: II
• Depth: 70 mm
• Maximum Output Impedance: 0.05 Ohm 100000 kHz
• [Us] Rated Supply Voltage: 24 V DC
• Nominal Output Current: 0.575 A 60-70 °C || 1.2 A

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP080803EN
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: C-tick || CSA || ATEX Cat 3G || FM Class 1 Division 2 || UL
• Ambient Air Temperature For Operation: 0-60 °C without derating) || -25-70 °C with derating factor)
• Electromagnetic Compatibility: immunity to electromagnetic interference IEC 61131-2
• Shock Resistance: 30 gn 11 ms IEC 88 reference 2-27
• Vibration Resistance: 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
• Ip Degree Of Protection: IP20 conforming to EN 61131-2 class 1
• Pollution Degree: 2 IEC 60664-1
• Ambient Air Temperature For Storage: -40-85 °C
• Relative Humidity: 95-95 % 60-60 °C without condensation
• Operating Altitude: <= 6561.68 ft (2000 m)
